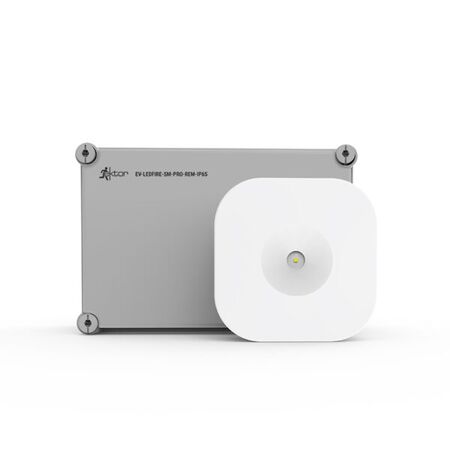

Ledfire Pro Surface Mount Emergency Light | IP65 Rated | DALI DT1 Driver | 90 Min Emergency Duration | by Ektor
Ledfire Pro Surface Mount Emergency Light is designed for commercial and industrial applications, featuring an IP65 rating for dust and water protection. With a DALI DT1 emergency driver, it offers a 90-minute emergency duration and 320 lumens output, ensuring safety in escape routes and critical areas. Built with a durable polycarbonate body, this light is perfect for surface mount installations in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Surface Mount Light, IP65 Emergency LED Light, DALI Emergency Light
Technical Specifications
- IP Rating: IP65
- Body Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: -40 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2.5 W
- Standby Power: 1.9 W
- Driver Type: DALI DT1 Emergency
- Emergency Mode: Non-Maintained
- Emergency Classification: C0:D63, C90:D63
- Emergency Output Power: 2100 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 320 lm
- Emergency Control: DALI Monitored (DT1)
- Replacement Battery Code: 01303
- Product Design Life: 12 years
- Dimensions (H x L x W): 50mm x 200mm x 200mm
- Weight: 0.8 kg
Key Features
- IP65 rated for dust and water ingress protection
- Surface mount installation with white polycarbonate body
- DALI DT1 emergency driver included with non-maintained emergency mode
- Emergency duration of 90 minutes with 320 lumens output
- DALI monitored for emergency test and monitoring compliance
- Wide operating temperature range from -40 to 40 °C
- Product design life of 12 years
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and industrial emergency lighting
- Surface mount installations requiring IP65 rated fixtures
- Emergency escape routes and safety lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 2.5W maximum wattage
- Long product design life reduces waste and replacement frequency
- DALI monitoring supports efficient maintenance and energy management
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ledfire Pro Surface Mount Emergency Light with Remote Driver D63 IP65 by Ektor is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
