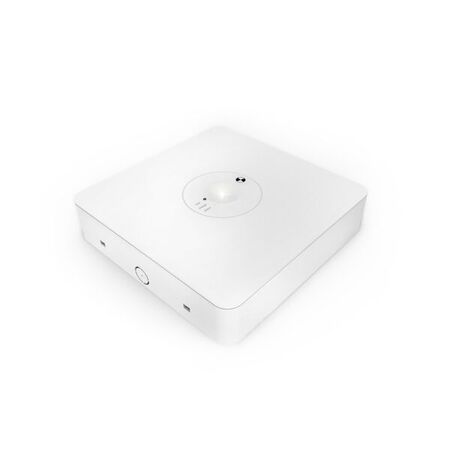

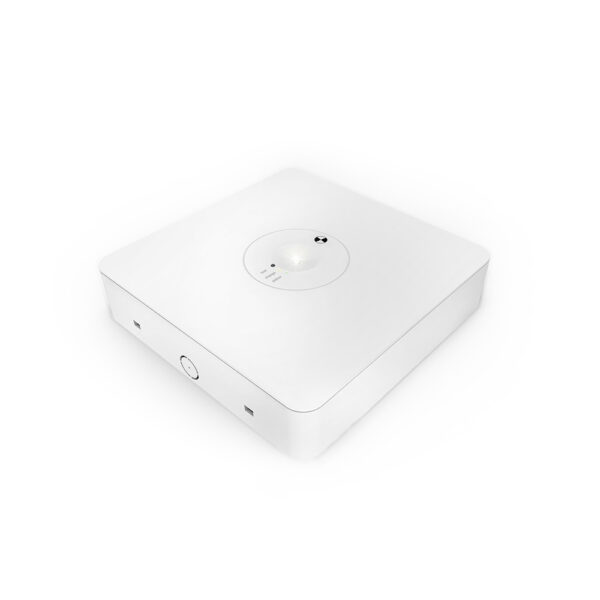

Ledfire Surface Mounted Emergency Luminaire D80 | IP20 Rated | 90 Min Emergency Duration | 370 lm Output | by Ektor
Ledfire Surface Mounted Emergency Luminaire D80 is designed for reliable emergency lighting in commercial and public spaces. With an IP20 rating, 90 minutes of emergency duration, and a powerful 370 lm output, this luminaire ensures safety during power outages. Built with a durable polycarbonate body, it's perfect for surface mount installations in offices and public buildings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Surface Mounted Emergency Light, Emergency Exit Luminaire, LED Emergency Light, D80 Emergency Luminaire
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Maximum Wattage: 3 W
- LED Wattage: 4.3 W
- Input Frequency: 50 Hz
- Working Temperature Range: 0 to 40 °C
- Emergency Output Power: 4300 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 370 lm
- Driver Type: DALI DT1 and Wireless IEC62386-104
- Dimmable: No
- Wiring Type: Re-wireable terminal block (5 pin)
- Emergency Classification: C0:D80, C90:D80
- Replacement Battery Code: 01303
- Dimensions (H x L x W): 80mm x 200mm x 200mm
- Weight: 1.2 kg
Key Features
- Surface mount installation
- Polycarbonate body material
- Non-maintained emergency mode
- DALI DT1 and Wireless IEC62386-104 emergency control options
- Emergency duration of 90 minutes
- Emergency lumen output of 370 lm
- Re-wireable terminal block (5 pin)
- Product design life of 12 years
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings emergency lighting
- Office buildings
- Public spaces requiring emergency illumination
- Surface mounted emergency lighting installations
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption of 0.25 W reduces energy waste
- Long product design life of 12 years minimizes replacement frequency and waste
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Surface Mounted Emergency Luminaire - D80 is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
