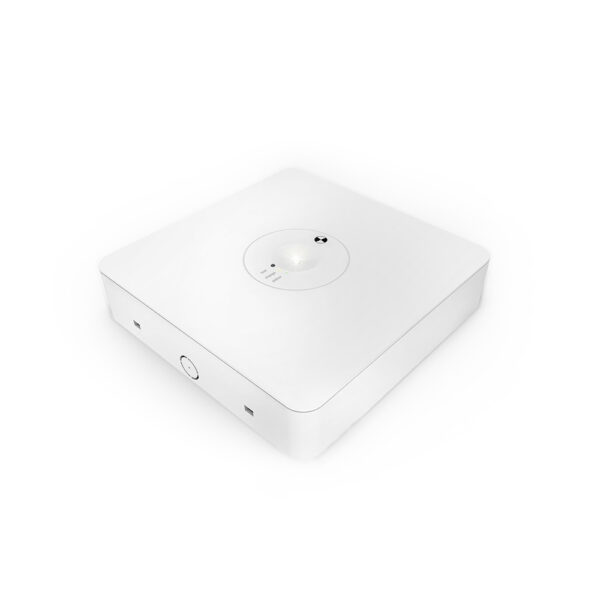

Ledfire Surface Mounted Emergency Luminaire | IP20 Rated | Non-Maintained Mode | 90 Min Emergency Duration | by Ektor
Ledfire Surface Mounted Emergency Luminaire is designed for reliable emergency lighting in commercial and public buildings. With an IP20 rating and a robust polycarbonate body, it features a non-maintained emergency mode that provides 370 lumens for up to 90 minutes. Ideal for office and retail spaces, this luminaire ensures safety and compliance with Australian standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Light, Surface Emergency Light, LED Emergency Luminaire, DALI Emergency Light
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 3 W
- LED Wattage: 4.3 W
- Working Temperature Range: 0 to 40 °C
- Emergency Output Power: 4300 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 370 lm
- Driver Type: DALI DT1 and Wireless IEC62386-104
- Dimmable: No
- Wiring Type: Re-wireable terminal block (5 pin)
- Body Material: Polycarbonate
- Dimensions (H x L x W): 100mm x 150mm x 250mm
- Weight: 1.2 kg
Key Features
- Surface mount installation
- Non-maintained emergency mode
- DALI DT1 and wireless IEC62386-104 emergency control options
- Polycarbonate body material
- Re-wireable terminal block (5 pin)
- Emergency duration of 90 minutes
- Emergency lumen output of 370 lm
- Product design life of 12 years
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings emergency lighting
- Office buildings and retail spaces
- Public and institutional buildings requiring emergency illumination
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low standby power consumption of 0.25 W reduces energy waste
- Long product design life of 12 years minimizes replacement frequency and waste
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Ledfire Surface Mounted Emergency Luminaire Black - D80 is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
