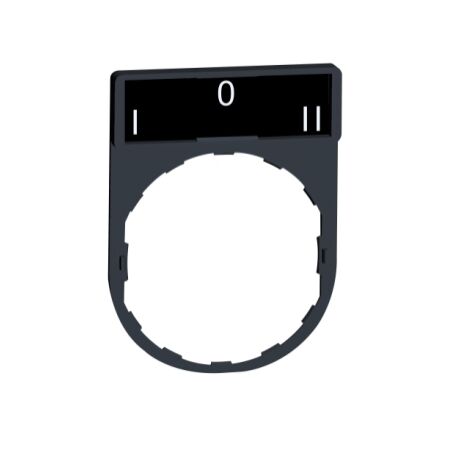

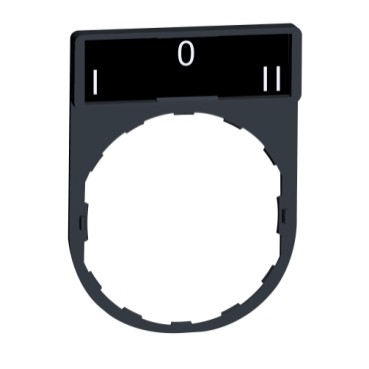

Legend Plate I-O-II | Durable High-Impact Plastic | Easy Installation | by GAF
The Legend Plate I-O-II is designed for clear switch identification in industrial control panels and machinery labeling. Made from durable high-impact plastic, it features markings for multi-position switches and is easy to install on standard control devices. Ideal for electricians and technicians, this plate enhances safety and reduces operational errors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Legend Plate I-O-II | Durable High-Impact Plastic | Easy Installation | by GAF
Brand: GAF
SKU: SCHZBY2186
Alternatively Known As: Switch legend plate, I-O-II label plate, control panel legend, selector switch label, SCHZBY2186 legend plate
Technical Specifications
- Material: High-impact plastic or anodized aluminum (varies by batch)
- Legend holder dimensions: 30 x 40 mm
- Legend dimensions: 8 x 27 mm
- Marking: I-O-II
- Mounting: Suitable for standard 22 mm or 30 mm selector switches
- Dimensions (H x L x W): 30mm x 2mm x 40mm
- Weight: 0.1 kg
Key Features
- Durable legend plate for clear switch identification
- Markings: I-O-II for multi-position switches
- Legend holder size: 30 x 40 mm
- Legend size: 8 x 27 mm
- Easy to install on standard control devices
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure correct placement and secure mounting.
Applications
- Industrial control panels
- Switchgear and motor control centers
- Electrical distribution boards
- Machinery and equipment labeling
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables clear labeling to reduce operational errors and improve safety, supporting efficient maintenance and reduced downtime.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The GAF LEGEND PLATE I-O-II SCHZBY2186 is available for immediate purchase. Ideal for industrial control panels, switchgear, and machinery labeling applications.
