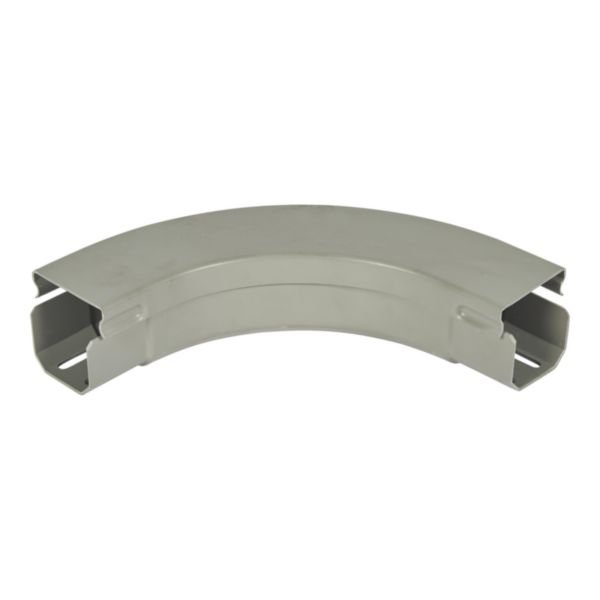

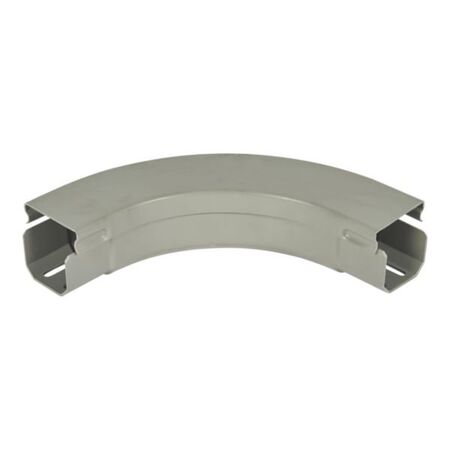

Legrand PVC Cable Tray 90° Flat Bend with Cover | Rigid Construction | Grey Color | @EA of 1 | by Cablofil
Legrand PVC Cable Tray 90° Flat Bend with Cover is designed for efficient cable management, featuring a rigid construction and a protective cover. Ideal for commercial and industrial applications, it allows for smooth horizontal direction changes while ensuring durability and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Legrand PVC Cable Tray 90° Flat Bend with Cover | Rigid Construction | Grey Color | @EA of 1 | by Cablofil
Brand: Cablofil
SKU: 637803
Alternatively Known As: PVC Cable Tray Bend, 90 Degree Cable Tray Elbow, Cable Tray Corner, PVC Cable Tray Fitting
Technical Specifications
- Change of direction: Horizontal 90°
- Construction type: Rigid bend with integrated connector
- With cover: Yes
- Inner radius: 150 mm
- Suitable for cable tray height: 75 mm
- Suitable for cable tray width: 75 mm
- Side perforation: No
- Bottom perforation: No
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5 to 60 °C
- Storage temperature: -5 to 60 °C
- Colour: Grey (RAL 7030)
- Halogen free: No
- Dimensions (H x L x W): 75mm x 150mm x 75mm
- Weight: 0.3 kg
Key Features
- 90° horizontal flat bend for cable trays
- Includes cover for cable protection
- Rigid bend construction
- Made from durable polyvinyl chloride (PVC)
- Suitable for cable trays with 75mm width and 75mm height
- Operating temperature range from -5°C to 60°C
- Grey color with RAL 7030 finish
Professional Installation Requirements
- Installation should be performed by a qualified electrician or cable management professional to ensure compliance with electrical standards and secure cable routing.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protecting electrical cables in building infrastructure
- Suitable for horizontal cable direction changes in cable tray systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC material is durable and recyclable, reducing waste
- Protects cables to extend their lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.
Available Now
Legrand PVC Cable Tray 90° Flat Bend with Cover 75mm x 75mm is available for immediate purchase, ideal for commercial and industrial cable management applications.
