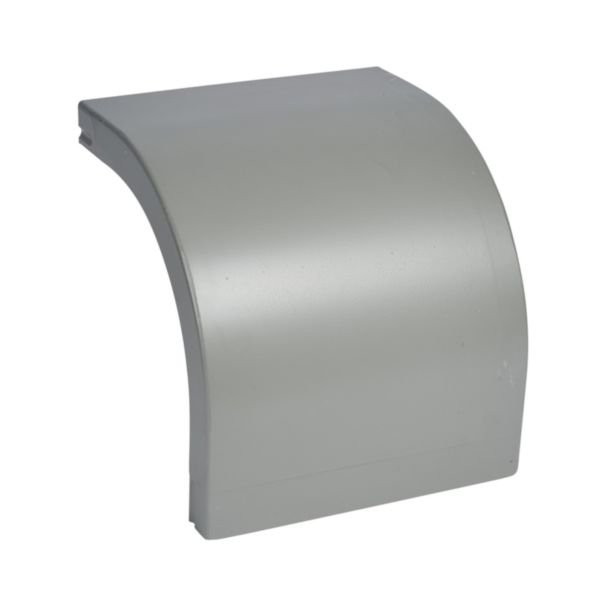

Legrand PVC Cable Tray 90° Outside Riser | Durable PVC Construction | Integrated Connector | Grey Finish | @Each of 1 | by Cablofil
Legrand PVC Cable Tray 90° Outside Riser is designed for efficient vertical cable routing in commercial and industrial settings. With a durable PVC construction and an integrated connector, this riser ensures neat installation and cable protection. Ideal for building wiring systems, it operates effectively within a temperature range of -5°C to 60°C, making it a reliable choice for your cable management needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Legrand PVC Cable Tray 90° Outside Riser | Durable PVC Construction | Integrated Connector | Grey Finish | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637747
Alternatively Known As: PVC cable tray bend, 90 degree cable tray riser, cable tray elbow with cover, PVC cable tray fitting
Technical Specifications
- Change of direction: Vertically descending 90°
- Construction type: Bend rigid
- With cover: Yes
- Inner radius: 150 mm
- Suitable for cable tray height: 50 mm
- Suitable for cable tray width: 300 mm
- Side perforation: No
- Bottom perforation: No
- NATO-mounting holes: No
- Model: Integrated connector
- Suitable for circuit integrity: No
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5 to 60 °C
- Storage temperature: -5 to 60 °C
- Colour: Grey (RAL 7030)
- Halogen free: No
- Dimensions (H x L x W): 50mm x 300mm x 300mm
- Weight: 1.2 kg
Key Features
- 90° outside riser bend for vertical cable routing
- Includes cover for cable protection and neat installation
- Constructed from durable polyvinyl chloride (PVC)
- Integrated connector for easy installation
- Suitable for cable trays 300mm wide and 50mm high
- Operating temperature range from -5°C to 60°C
- Grey color with RAL 7030 finish
Professional Installation Requirements
- Installation should be performed by a qualified electrician or professional experienced in cable management systems to ensure compliance with electrical standards and safety.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protecting electrical cables in vertical riser applications
- Suitable for use in building wiring systems requiring cable tray bends
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC material is recyclable and resistant to corrosion, extending product life and reducing waste
- Durable construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
The Legrand PVC Cable Tray 90° Outside Riser with Cover 300mm x 50mm is available for immediate purchase, ideal for commercial and industrial cable management applications.
