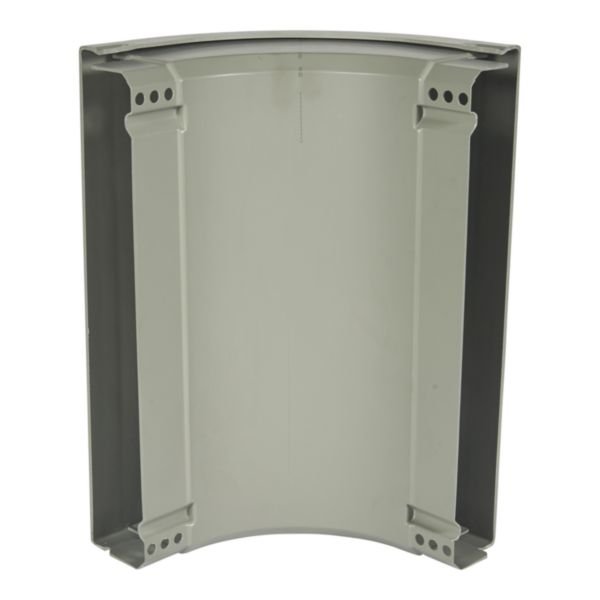

Legrand PVC Cable Tray 90° Outside Riser | Durable PVC Construction | Includes Cover for Protection | @Each of 1 | by Cablofil
Legrand PVC Cable Tray 90° Outside Riser is designed for efficient vertical cable routing in commercial and industrial settings. Constructed from durable PVC, it features an integrated connector for easy installation and includes a cover for added cable protection. Ideal for building wiring systems, this riser ensures compliance with electrical safety standards while organizing cables effectively.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Legrand PVC Cable Tray 90° Outside Riser | Durable PVC Construction | Includes Cover for Protection | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637937
Alternatively Known As: PVC Cable Tray Bend, 90 Degree Cable Tray Riser, PVC Cable Tray Outside Bend, Cable Tray Elbow with Cover
Technical Specifications
- Change of direction: Vertically descending
- Angle: 90°
- Construction type: Bend rigid
- With cover: Yes
- Inner radius: 150 mm
- Suitable for cable tray height: 100 mm
- Suitable for cable tray width: 500 mm
- Side perforation: No
- Bottom perforation: No
- NATO-mounting holes: No
- Model: Integrated connector
- Suitable for circuit integrity: No
- Material: Polyvinyl chloride (PVC)
- Operating / setting temperature: -5 to 60 °C
- Colour: Grey (RAL 7030)
- Storage temperature: -5 to 60 °C
- Halogen free: No
- Dimensions (H x L x W): 100mm x 500mm x 500mm
- Weight: 1.2 kg
Key Features
- 90° outside riser bend for vertical cable routing
- Includes cover for cable protection
- Constructed from durable polyvinyl chloride (PVC)
- Integrated connector for easy installation
- Suitable for cable trays 500mm wide and 100mm high
- Operating temperature range from -5°C to 60°C
- Grey color with RAL 7030 finish
Professional Installation Requirements
- Installation should be performed by a qualified electrician or professional experienced in cable management systems to ensure compliance with electrical safety standards.
Applications
- Cable management in commercial and industrial electrical installations
- Routing and protecting electrical cables in vertical riser applications
- Suitable for use in building wiring systems requiring cable tray bends
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC material is durable and resistant to corrosion, reducing replacement frequency
- Helps organize cables efficiently, reducing electrical hazards and waste
- Non-metallic construction reduces risk of electrical conductivity and corrosion
Warranty Information
Standard manufacturer warranty applies; typically 1-3 years depending on purchase terms.
Available Now
The Legrand PVC Cable Tray 90° Outside Riser with Cover 500mm x 100mm is available for immediate purchase, ideal for commercial and industrial electrical cable management applications.
