Legrand PVC Cable Tray Cover | 400mm Width | 3000mm Length | 2.5mm Thickness | Grey Color | @Each of 1 | by Cablofil

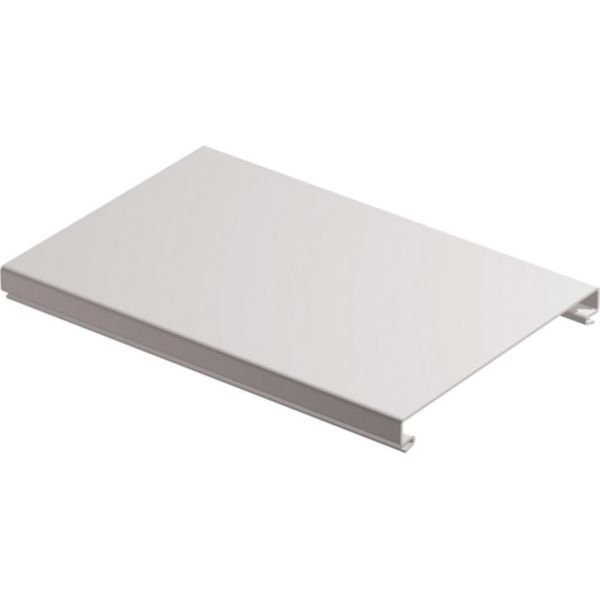

Legrand PVC Cable Tray Cover is designed for effective cable management in industrial and commercial settings. With a robust 400mm width and 3000mm length, this cover features a durable 2.5mm thickness and a snapped-on fastening for easy installation. Ideal for protecting cables from dust and debris, it ensures longevity and compliance with AS/NZS 1170 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Legrand PVC Cable Tray Cover | 400mm Width | 3000mm Length | 2.5mm Thickness | Grey Color | @Each of 1 | by Cablofil
Brand: Cablofil
SKU: 637765
Alternatively Known As: PVC Cable Tray Cover, Cable Tray Lid, Cable Tray Protection Cover, Legrand Cable Tray Cover
Technical Specifications
- Cover width: 400 mm
- Material thickness: 2.5 mm
- Suitable for cable tray: Yes
- Suitable for wire mesh tray: No
- Suitable for cable ladder: No
- Length: 3000 mm
- Type of fastening: Snapped on
- Suitable for circuit integrity: No
- Material: Polyvinyl chloride (PVC)
- Operating temperature: -5 to 60 °C
- Storage temperature: -5 to 60 °C
- Colour: Grey (RAL 7030)
- Halogen free: No
- Dimensions (H x L x W): 30mm x 3000mm x 400mm
- Weight: 3.0 kg
Key Features
- Cover width of 400 mm and length of 3000 mm
- Material thickness of 2.5 mm for durability
- Made from polyvinyl chloride (PVC) material
- Snapped on type fastening for easy installation
- Operating temperature range from -5 to 60 °C
- Grey color with RAL number 7030
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with cable management systems to ensure proper fitting and safety.
Applications
- Cable management in industrial and commercial electrical installations
- Protection of cables in cable trays to prevent dust and debris accumulation
- Suitable for use in environments requiring cable protection but not wire mesh or cable ladder compatibility
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- PVC material is durable and long-lasting, reducing the need for frequent replacements
- Helps protect cables from environmental damage, extending cable life and reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.
Available Now
Legrand PVC Cable Tray Cover 400mm x 3m Length is available for immediate purchase, ideal for protecting cables in industrial and commercial cable tray installations.
