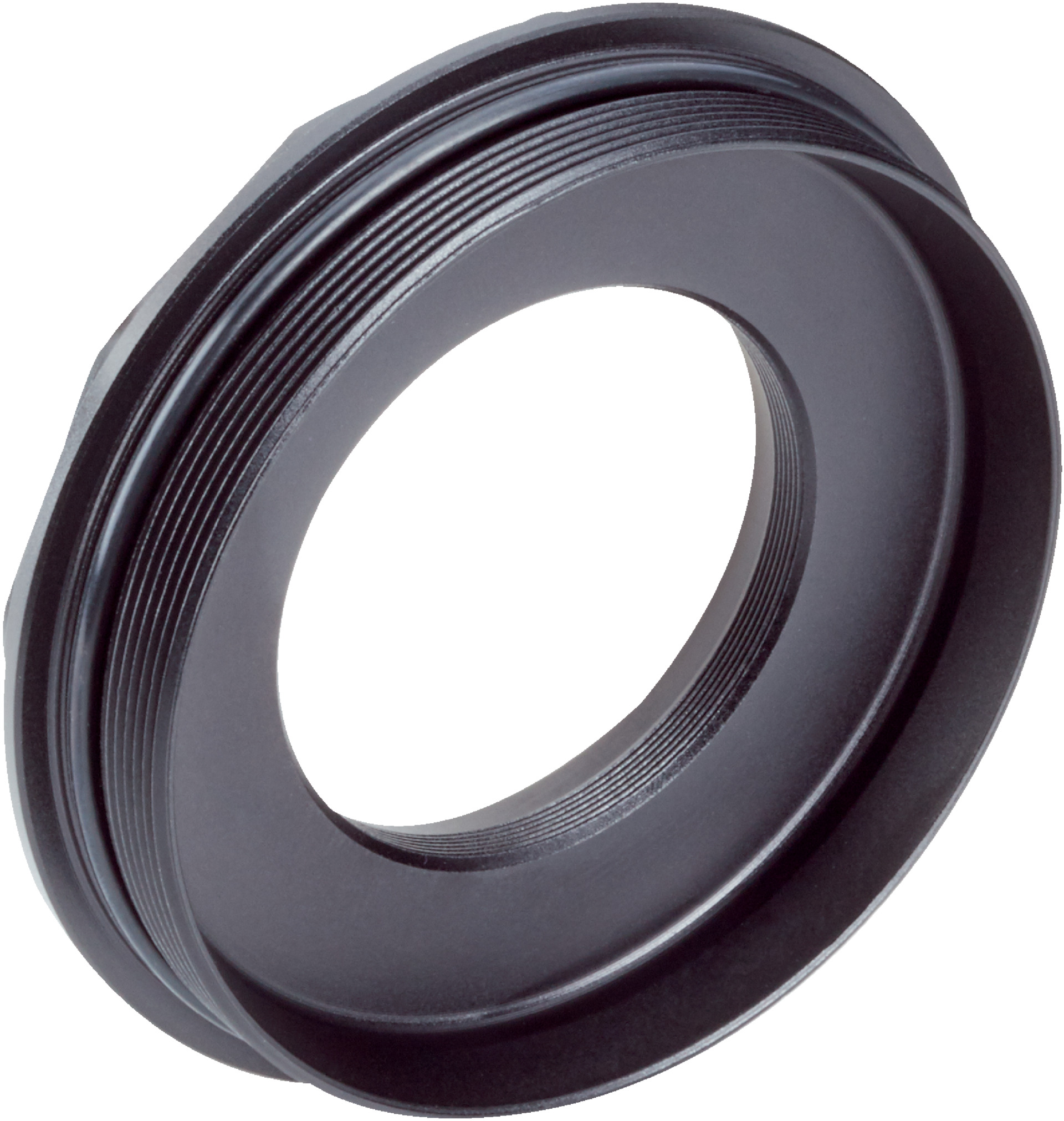

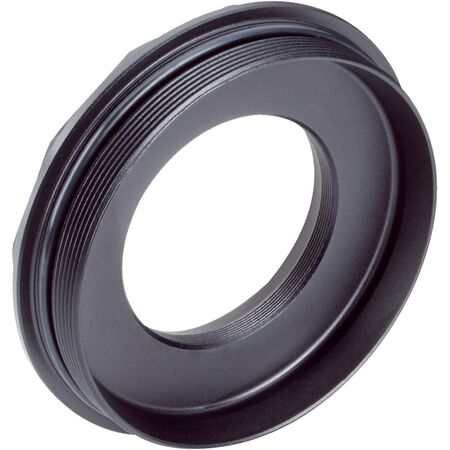

Lens Tube Flange | 70 mm Diameter | IP65/67 Rated | by SICK
The Lens Tube Flange is designed for optical systems, featuring a 70 mm diameter and IP65/67 rating for dust and water protection. Ideal for use with lens barrels 4109798, 4109799, and 4109800, this durable accessory ensures secure mounting in reflector and optics applications, minimizing the need for frequent replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Lens Tube Flange | 70 mm Diameter | IP65/67 Rated | by SICK
Brand: SICK
SKU: 4109803
Alternatively Known As: Lens flange, Optical tube flange, Lens accessory flange
Technical Specifications
- Diameter: 70 mm
- Ingress Protection: IP65/67 with O-ring
- Compatible with lens barrels 4109798, 4109799, 4109800
- Product segment: Reflectors and optics
- Product type: Lens accessory
- Dimensions (H x L x W): 20mm x 70mm x 70mm
- Weight: 0.2 kg
Key Features
- Tube flange with 70 mm diameter
- IP65/67 rated with O-ring for dust and water protection
- Designed as an accessory for lenses in reflector and optics product segment
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with optical equipment to ensure proper sealing and alignment.
Applications
- Use with lens barrels 4109798, 4109799, and 4109800 in optical and reflector systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65/67 protection reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK warranty terms for details.
Available Now
The SICK Lens Tube Flange is available for immediate purchase, ideal for use in optical and reflector systems requiring secure lens mounting.
