Level Controller 24V AC/DC | 2 Points Changeover Relay | DIN Mount by NHP
Level controller with 24V AC/DC supply and adjustable sensitivity—ideal for industrial and commercial level monitoring. Built for precise control, with two changeover relay outputs for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

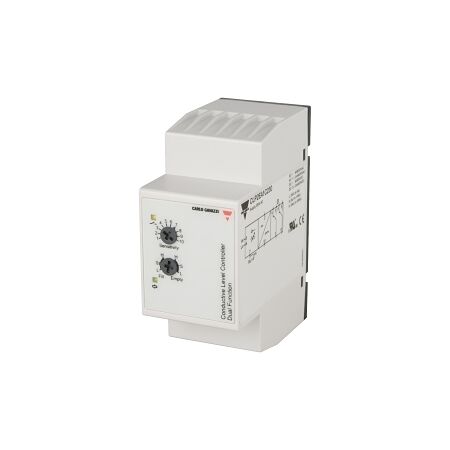

Product Name/Title: Carlo Gavazzi Level Sensor Level Controller 24V AC DC 2 Points Changeover Relay Output DIN
Brand: NHP
SKU: CLP2EA1CM24
Alternatively Known As: Level Controller, Level Monitoring Relay
Technical Specifications
- Rated operation current: 8 A
- Rated control supply voltage: 19.2-28.8 V AC/DC
- Response value sensitivity: Adjustable
- Number of contacts: 2 changeover
- Degree of protection: IP20
- Physical measurement principle: Conductive
- Ambient temperature range: -20 to 50 °C
- Dimensions (H x L x W): 81mm x 60.2mm x 35.5mm
- Weight: 0.13 kg
Key Features
- Adjustable response value sensitivity for precise level control.
- Two changeover relay outputs for versatile applications.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Level monitoring in tanks and reservoirs
- Commercial: Water treatment facilities
- General: Any application requiring level control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient level control reduces waste and optimizes resource management.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Level Sensor Level Controller is available now for immediate purchase, ideal for industrial and commercial level monitoring applications.
