Level Controller 24V AC/DC | 2 Points DPDT Relay | DIN Rail by NHP
Level controller with 24V AC/DC supply and 2-point DPDT relay output—ideal for industrial and commercial level monitoring. Built for easy installation with DIN rail mounting and adjustable sensitivity for precise control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

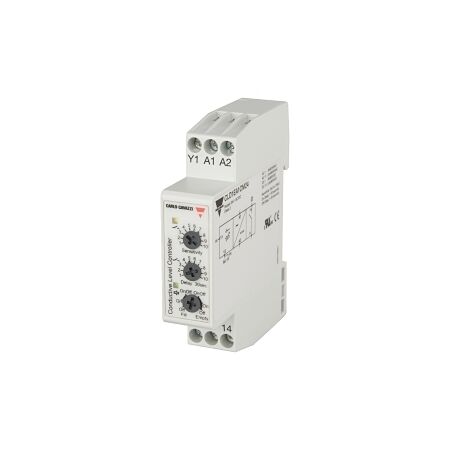

Product Name/Title: Carlo Gavazzi Level Sensor Level Controller 24V AC DC 2 Points DPDT Relay Output DIN
Brand: NHP
SKU: CLD2EA1CM24
Alternatively Known As: Level Controller, Level Monitoring Relay, Conductive Level Sensor
Technical Specifications
- Rated operation current: 8 A
- Rated control supply voltage: 19.2-28.8 V AC/DC
- IP Rating: IP20
- Physical measurement principle: Conductive
- Min/Max adjustable operate/off delay time: 1 s
- Dimensions (H x L x W): 81mm x 60.2mm x 35.5mm
- Weight: 0.13 kg
Key Features
- Adjustable response value sensitivity.
- Two changeover contacts for versatile control.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Level monitoring in tanks and reservoirs
- Commercial: Water treatment facilities
- General: Any application requiring level control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Efficient level monitoring helps in resource management and reduces waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Level Sensor Level Controller is available now for immediate purchase. Ideal for industrial and commercial level monitoring applications.
