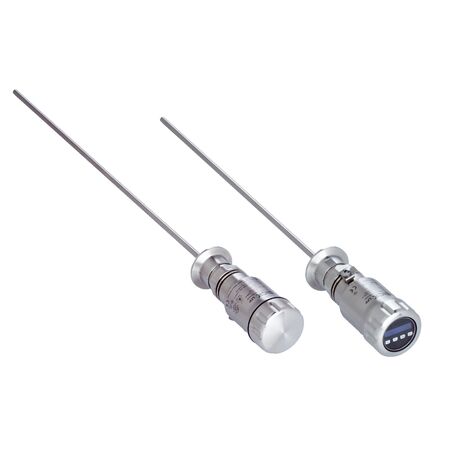

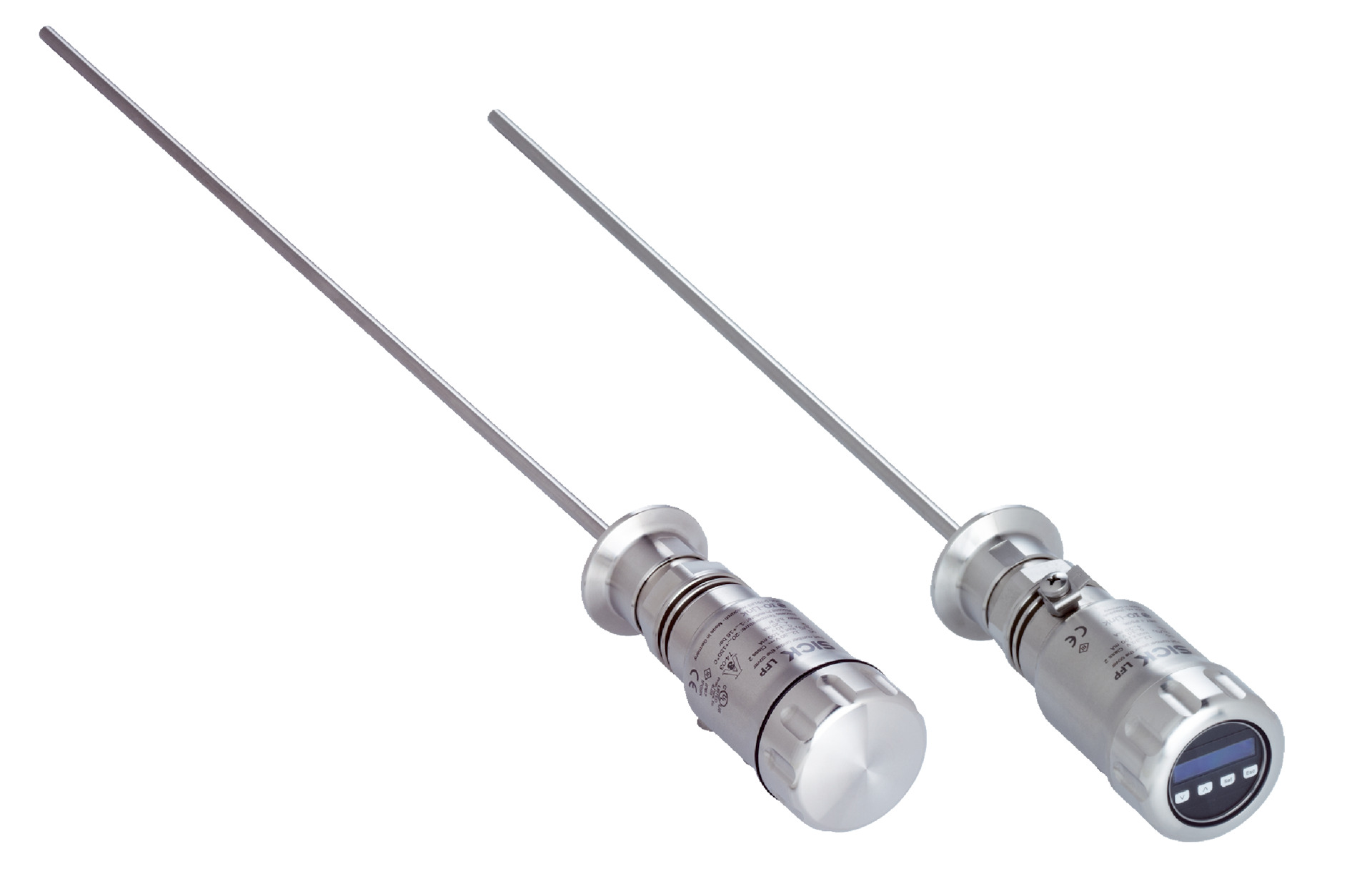

Level Sensor LFP0600-G1NMB | Hygienic Rod Probe | IO-Link Communication | IP67 & IP69 Rated | by SICK
The LFP0600-G1NMB Level Sensor is designed for precise fluid level measurement, featuring a hygienic rod probe and IO-Link communication for smart connectivity. With a robust stainless steel construction and IP67/IP69 protection ratings, it's perfect for the food, beverage, chemical, and pharmaceutical industries, ensuring high accuracy and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Level Sensor LFP0600-G1NMB | Hygienic Rod Probe | IO-Link Communication | IP67 & IP69 Rated | by SICK
Brand: SICK
SKU: 1052071
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, IO-Link Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Standard amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 600 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +150 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Enclosure rating: IP67 and IP69
- Wetted parts: Stainless steel 1.4404 / 316L PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Max. probe load: ≤6 Nm
- Ambient operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 600mm x 30mm
- Weight: 1.2 kg
Key Features
- Suitable for fluids with switch and continuous measurement
- Rod probe in hygienic design with 600 mm length
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -20 °C to +150 °C
- High accuracy with ±5 mm sensor element accuracy
- Fast response time of 400 ms
- IO-Link communication interface for smart connectivity
- Robust stainless steel wetted parts and housing
- Protection rating IP67 and IP69 for harsh environments
- Display included for easy monitoring
- FDA certified and EHEDG approved for food contact
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical connections, ensuring compliance with safety standards and correct process integration.
Applications
- Fluid level measurement in industrial processes
- Food and beverage industry requiring hygienic design
- Chemical and pharmaceutical fluid monitoring
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Energy-efficient electronics minimize power consumption
- Hygienic design supports safe food production and reduces contamination risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP0600-G1NMB Level Sensor is available for immediate purchase, ideal for hygienic fluid level measurement in food, beverage, chemical, and pharmaceutical industries.
