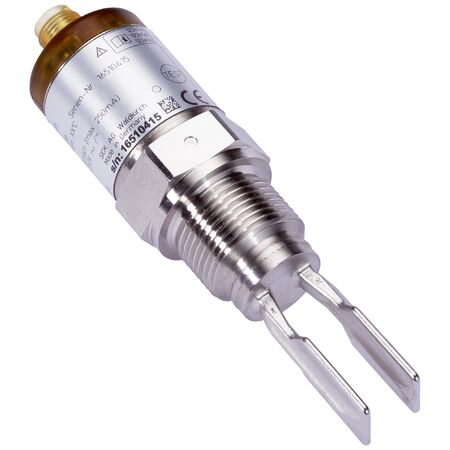

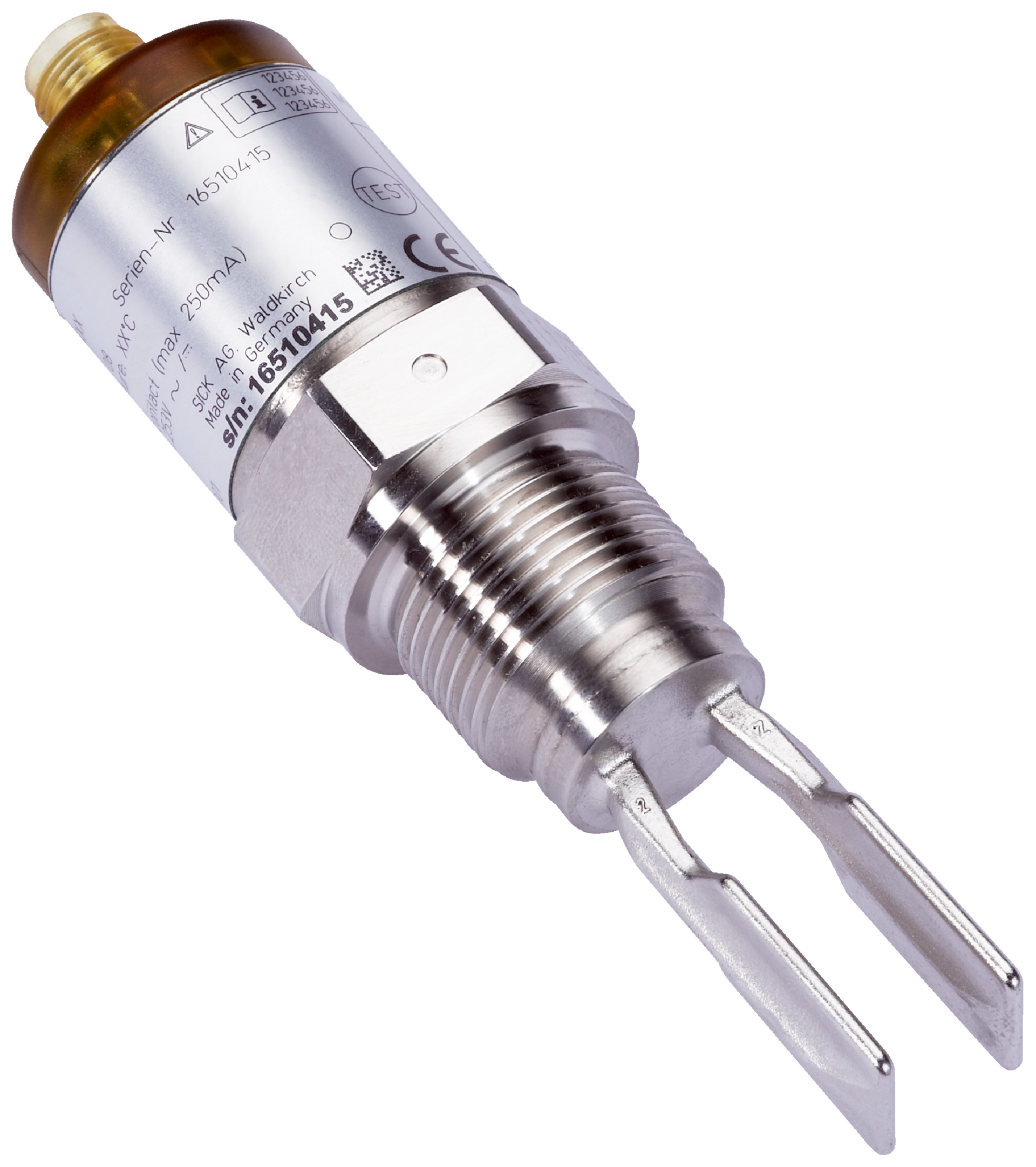

Level Sensor LFV200-XXTNACPV | Tuning Fork Probe | IP65 Rated | Non-Contact Switch | by SICK
The LFV200-XXTNACPV Level Sensor is designed for precise fluid level detection in industrial processes. Featuring a reliable tuning fork probe type and an IP65 rated enclosure, it operates effectively in a wide temperature range from -40 °C to +150 °C. Ideal for chemical, food, and pharmaceutical industries, this sensor ensures high accuracy with ±2 mm sensor element accuracy and low power consumption, making it a robust choice for monitoring liquids in tanks and pipelines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Level Sensor LFV200-XXTNACPV | Tuning Fork Probe | IP65 Rated | Non-Contact Switch | by SICK
Brand: SICK
SKU: 6036374
Alternatively Known As: Fluid Level Sensor, Tuning Fork Level Switch, Industrial Level Sensor, LFV200 Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe length: 67 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤10 mA
- Initialization time: <3 s
- VDE protection class 1
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: 1" NPT PN 64
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 100mm x 67mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable level switching
- Suitable for fluids with fill material density from 0.7 g/cm³ to 2.5 g/cm³
- Process pressure range from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +150 °C
- Non-contact switch output signal
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- IP65 rated enclosure for protection against dust and water
- Valve plug DIN 43650 connection type
- High accuracy with ±2 mm sensor element accuracy and ≤1 mm reproducibility
- Low power consumption ≤10 mA
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Fluid level detection in industrial processes
- Measurement and monitoring of liquids in tanks and pipelines
- Suitable for use in chemical, food, and pharmaceutical industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption contributes to energy efficiency
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LFV200-XXTNACPV Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
