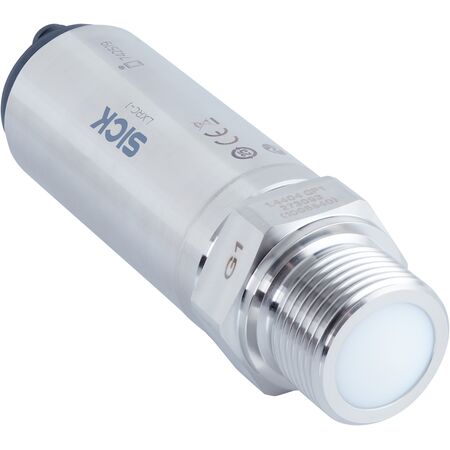

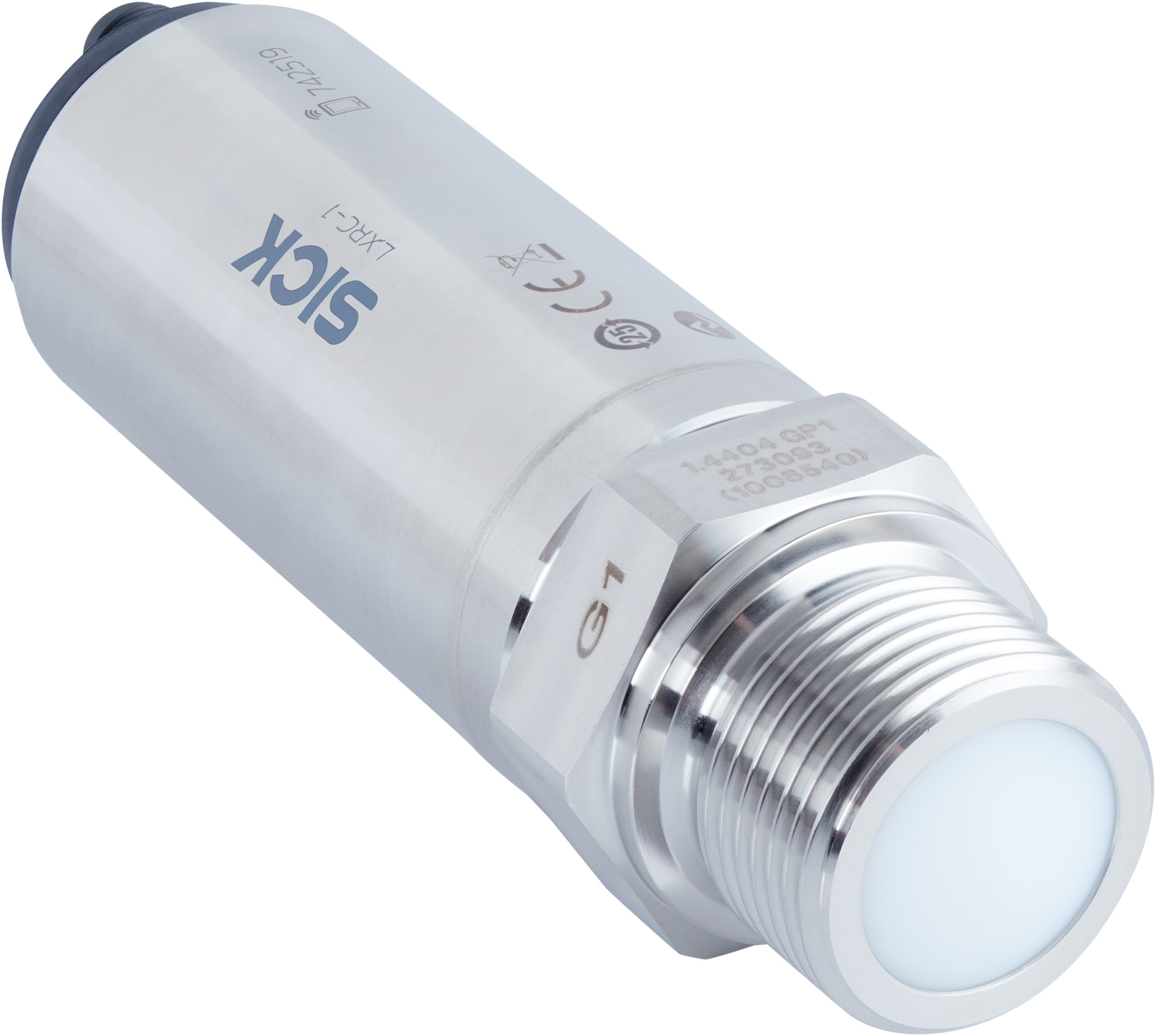

Level Sensor LXRC-1XXXJXXABMAAB | 15m Measurement Range | Bluetooth Connectivity | IP66/IP67/IP69 Rated | by SICK
The LXRC-1XXXJXXABMAAB level sensor excels in continuous and switch level measurement for fluids and bulk solids, boasting a measurement range of up to 15 meters. Designed for industrial process control, it features Bluetooth connectivity, a 360° status indicator, and high accuracy with ±2 mm sensor element accuracy. Built with robust stainless steel and rated IP66/IP67/IP69, this sensor is perfect for harsh environments, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Level Sensor LXRC-1XXXJXXABMAAB | 15m Measurement Range | Bluetooth Connectivity | IP66/IP67/IP69 Rated | by SICK
Brand: SICK
SKU: 6085705
Alternatively Known As: Radar Level Sensor, Continuous Level Transmitter, Bulk Solids Level Sensor, Fluid Level Sensor, IO-Link Level Sensor
Technical Specifications
- Medium: Fluids, bulk solids
- Measurement: Continuous, switch
- Probe type: Thread with integrated horn antenna made from PTFE
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: 0 m to 15 m
- Angle of dispersion: 12°
- Process pressure: -1 bar to 16 bar
- Process temperature: -40 °C to +130 °C
- Bluetooth: Yes
- 360° status indicator: Yes
- Accuracy of sensor element: ±2 mm
- Reproducibility: ≤1 mm
- Resolution: <1 mm
- Response time: 1000 ms
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 35 V DC
- Initialization time: ≤5 s
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signal: 2 x PNP/NPN + 4 mA to 20 mA
- Power consumption: ≤3.5 W
- Inductive load: ≤0.5 H
- Capacitive load: ≤100 nF
- Enclosure rating: IP66, IP67, IP69
- Lower signal level: 3.8 mA to 4 mA
- Upper signal level: 20 mA to 20.5 mA
- Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Process connection: G 1, PN16, DIN3852-A
- Housing material: Stainless steel 1.4404 / 316L, PBT/PC
- Male connector material: Plastic
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 50mm x 50mm
- Weight: 1.5 kg
Key Features
- Measurement range up to 15 meters
- W-band frequency (75 to 85 GHz) with 12° angle of dispersion
- Probe with integrated horn antenna made from PTFE
- Bluetooth connectivity and 360° status indicator
- High accuracy with ±2 mm sensor element accuracy and ≤1 mm reproducibility
- Fast response time of 1000 ms
- Communication via IO-Link interface
- Wide supply voltage range from 12 V DC to 35 V DC
- Robust stainless steel 1.4404 / 316L wetted parts and housing
- Process connection G 1, PN16, DIN3852-A
- Enclosure rated IP66, IP67, and IP69 for harsh environments
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with IO-Link devices and industrial process instrumentation to ensure proper setup and safety compliance.
Applications
- Continuous and switch level measurement in fluids and bulk solids
- Industrial process control requiring precise level monitoring
- Applications with process pressures from -1 bar to 16 bar
- Suitable for harsh environments with IP66, IP67, and IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient process control reducing waste and spillage
- Durable materials extend product life and reduce replacement frequency
- Low power consumption of ≤3.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LXRC-1XXXJXXABMAAB level sensor is available for immediate purchase, ideal for industrial fluid and bulk solids level measurement applications.
