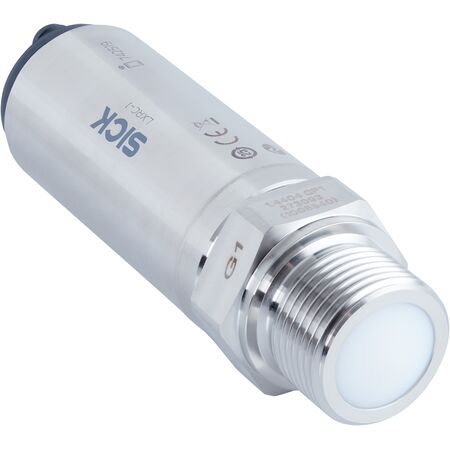

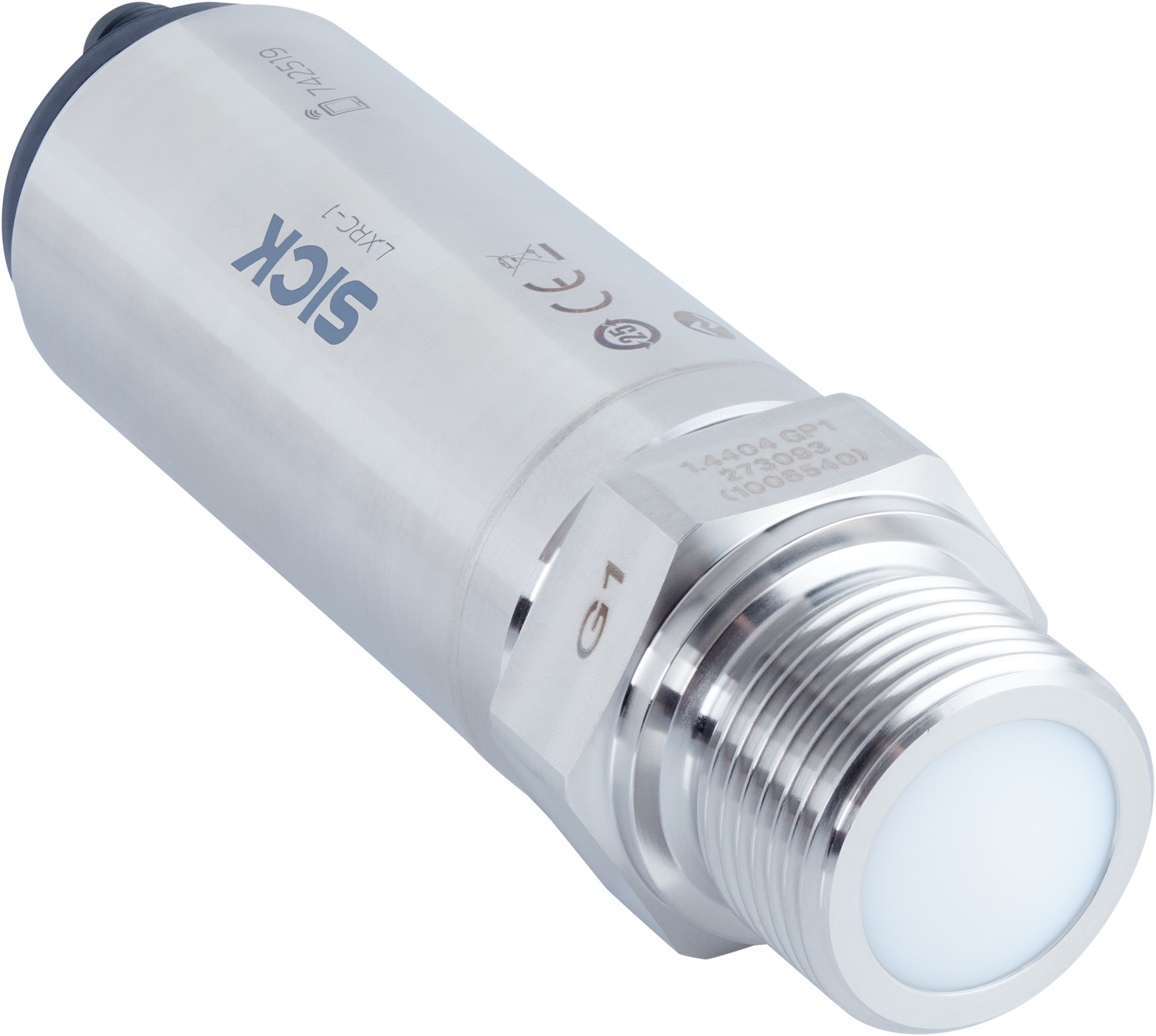

Level Sensor LXRC-1XXXKXXABMAAX | Continuous Measurement | PTFE Probe | IP66/IP67/IP69 Rated | by SICK
The LXRC-1XXXKXXABMAAX level sensor excels in measuring fluid and bulk solid levels with continuous and switch capabilities. Designed for industrial applications, it features a robust PTFE probe and operates within a wide temperature range of -40°C to +130°C. With high accuracy and a fast response time, this sensor is perfect for monitoring levels in tanks and containers, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Level Sensor LXRC-1XXXKXXABMAAX | Continuous Measurement | PTFE Probe | IP66/IP67/IP69 Rated | by SICK
Brand: SICK
SKU: 6085690
Alternatively Known As: Radar Level Sensor, Continuous Level Transmitter, Bulk Solid Level Detector, Fluid Level Sensor
Technical Specifications
- Medium: Fluids, bulk solids
- Measurement: Continuous, switch
- Probe type: Thread with integrated horn antenna made from PTFE
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: 0 m to 15 m
- Angle of dispersion: 12°
- Process pressure: -1 bar to 16 bar
- Process temperature: -40°C to +130°C
- Accuracy of sensor element: ±2 mm
- Reproducibility: ≤1 mm
- Resolution: <1 mm
- Response time: 1000 ms
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 35 V DC
- Initialization time: ≤5 s
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signal: 2 x PNP/NPN + 4 mA to 20 mA
- Power consumption: ≤3.5 W
- Enclosure rating: IP66, IP67, IP69
- Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Process connection: 1" NPT, PN16, ASME B1.20.1
- Housing material: Stainless steel 1.4404 / 316L, PBT/PC
- Ambient operating temperature: -40°C to +70°C
- Ambient storage temperature: -40°C to +80°C
- Dimensions (H x L x W): 150mm x 40mm x 40mm
- Weight: 1.5 kg
Key Features
- Suitable for fluids and bulk solids
- Continuous and switch measurement capabilities
- Probe with integrated horn antenna made from PTFE
- W-band frequency range (75 to 85 GHz)
- Measuring range up to 15 meters
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -40°C to +130°C
- 360° status indicator for easy monitoring
- High accuracy with ±2 mm sensor element accuracy
- Reproducibility ≤ 1 mm and resolution < 1 mm
- Fast response time of 1000 ms
- Communication via IO-Link interface
- Supply voltage from 12 V DC to 35 V DC
- Robust stainless steel housing with IP66, IP67, and IP69 protection ratings
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical safety standards to ensure proper setup and compliance.
Applications
- Measurement of fluid levels in tanks and containers
- Monitoring bulk solids in industrial storage
- Continuous and switch level detection in process industries
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Non-contact measurement reduces contamination and wear
- Durable materials extend product life and reduce waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1 to 2 years against defects.
Available Now
The SICK LXRC-1XXXKXXABMAAX level sensor is available for immediate purchase, ideal for industrial fluid and bulk solid level measurement applications.
