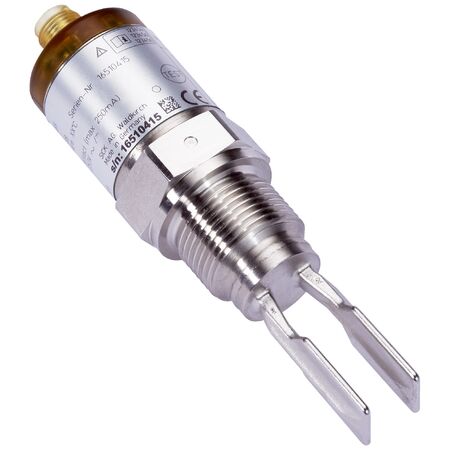

Level Sensor LFV200-XATNACPV | Tuning Fork Probe | IP65 Rated | High Accuracy ±2 mm | by SICK
The LFV200-XATNACPV level sensor is designed for precise fluid level detection in industrial applications. Featuring a tuning fork probe for reliable measurement, it operates within a wide process pressure range of -1 bar to 64 bar and can withstand temperatures from -40 °C to +150 °C. With an IP65 rated enclosure and stainless steel construction, this sensor ensures durability and accuracy, making it ideal for use in food, chemical, and water treatment industries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Level Sensor LFV200-XATNACPV | Tuning Fork Probe | IP65 Rated | High Accuracy ±2 mm | by SICK
Brand: SICK
SKU: 6036382
Alternatively Known As: Fluid Level Sensor, Tuning Fork Level Switch, Industrial Level Sensor, LFV200 Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe length: 67 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤ 1 mm
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤ 10 mA
- Initialization time: < 3 s
- Connection type: Valve plug DIN 43650
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: 1" NPT PN 64
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 100mm x 67mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable level detection
- Wide process pressure range from -1 bar to 64 bar
- Operates in process temperatures from -40 °C to +150 °C
- High accuracy with ±2 mm sensor element precision
- Non-contact switch output signal for durability
- Stainless steel 1.4404 / 316L wetted parts for corrosion resistance
- IP65 rated enclosure for protection against dust and water
- Low power consumption of ≤ 10 mA
- Fast response time of 500 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Fluid level detection in industrial processes
- Measurement and monitoring of liquids in tanks and pipelines
- Suitable for use in food, chemical, and water treatment industries
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces wear and contamination risk
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV200-XATNACPV level sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
