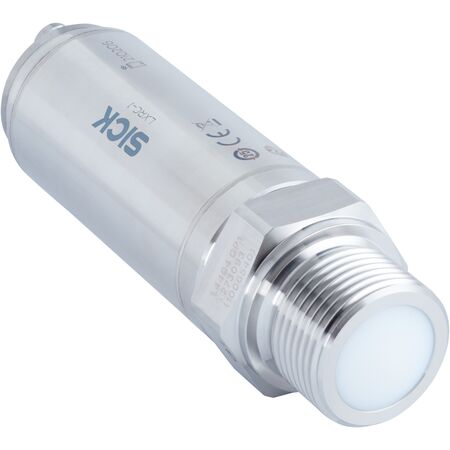

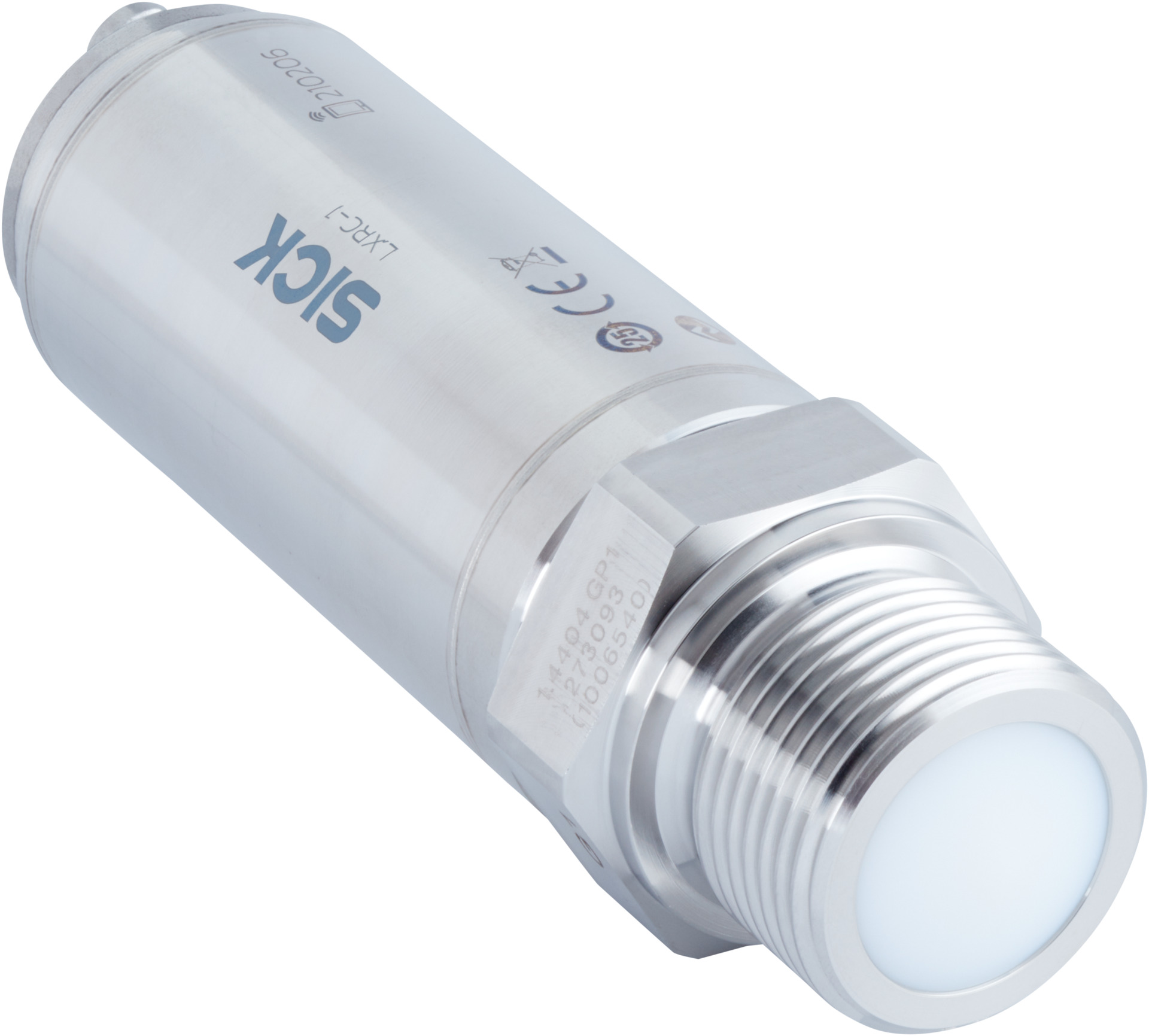

Level Sensors LXRC-1XXXKXXABEXAB | Continuous Measurement | Bluetooth Connectivity | IP66/IP67/IP69 Rated | by SICK
Level sensors designed for continuous measurement of fluids and bulk solids, the LXRC-1XXXKXXABEXAB features Bluetooth connectivity for easy configuration and a robust IP66/IP67/IP69 enclosure rating. Ideal for industrial process control, this sensor ensures precise level monitoring in harsh environments with temperature and pressure variations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Level Sensors LXRC-1XXXKXXABEXAB | Continuous Measurement | Bluetooth Connectivity | IP66/IP67/IP69 Rated | by SICK
Brand: SICK
SKU: 6085702
Alternatively Known As: Radar Level Sensor, Continuous Level Transmitter, Bulk Solid Level Sensor, Fluid Level Detector
Technical Specifications
- Medium: Fluids, bulk solids
- Measurement: Continuous, switch
- Probe type: Thread with integrated horn antenna made from PTFE
- Frequency band: W-band (75 to 85 GHz)
- Measuring range: 0 m to 15 m
- Angle of dispersion: 12°
- Process pressure: -1 bar to 16 bar
- Process temperature: -40 °C to +130 °C
- Bluetooth: Yes
- Accuracy of sensor element: ± 2 mm
- Reproducibility: ≤ 1 mm
- Resolution: < 1 mm
- Response time: 1000 ms
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 35 V DC
- Initialization time: ≤ 5 s
- Protection class: III
- Connection type: M12 round connector, 4-pin
- Output signal: 2 x PNP/NPN + 4 mA to 20 mA
- Power consumption: ≤ 3.5 W
- Inductive load: ≤ 0.5 H
- Capacitive load: ≤ 100 nF
- Enclosure rating: IP66, IP67, IP69
- Lower signal level: 3.8 mA to 4 mA
- Upper signal level: 20 mA to 20.5 mA
- Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM
- Process connection: 1" NPT, PN16, ASME B1.20.1
- Housing material: Stainless steel 1.4404 / 316L
- Male connector material: Stainless steel
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 150mm x 30mm x 30mm
- Weight: 1.5 kg
Key Features
- Measurement of fluids and bulk solids with continuous and switch modes
- Probe with integrated horn antenna made from PTFE
- Frequency band: W-band (75 to 85 GHz)
- Measuring range up to 15 meters
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -40 °C to +130 °C
- Bluetooth connectivity for easy configuration
- High accuracy with ±2 mm sensor element accuracy
- Reproducibility ≤ 1 mm and resolution < 1 mm
- Response time of 1000 ms
- Communication via IO-Link interface
- Supply voltage from 12 V DC to 35 V DC
- Enclosure rated IP66, IP67, and IP69 for robust protection
- Wetted parts made of stainless steel 1.4404 / 316L, PTFE, and FKM
- Process connection 1" NPT, PN16, ASME B1.20.1
- Housing and male connector made of stainless steel
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with IO-Link devices and industrial sensor integration to ensure proper setup and compliance with safety standards.
Applications
- Continuous and switch level measurement in fluids and bulk solids
- Industrial process control requiring precise level monitoring
- Applications involving harsh environments with pressure and temperature variations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient process control reducing waste and spillage
- Durable materials extend product life reducing replacement frequency
- Bluetooth configuration reduces need for physical adjustments minimizing downtime
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LXRC-1XXXKXXABEXAB level sensor is available for immediate purchase, ideal for industrial applications requiring reliable level measurement of fluids and bulk solids.
