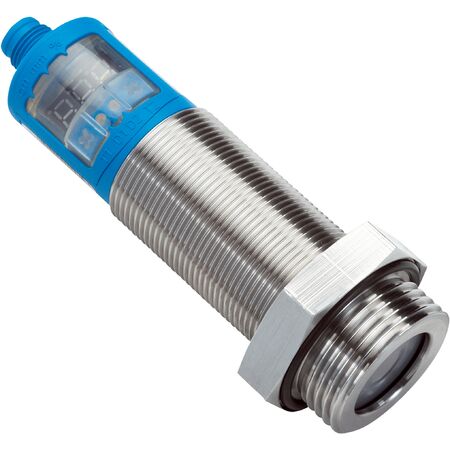

Level Sensors UP56-213115 | Ultrasonic Measurement | IP67 Rated | by SICK
Level sensors designed for precise measurement of fluids and bulk solids, the UP56-213115 features both switch and continuous measurement modes. With a measuring range of 200 mm to 1,300 mm in tanks and up to 5,000 mm in immersion tubes, this sensor is perfect for industrial applications. Its IP67 rating ensures durability in harsh environments, making it an ideal choice for process control and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Level Sensors UP56-213115 | Ultrasonic Measurement | IP67 Rated | by SICK
Brand: SICK
SKU: 6073257
Alternatively Known As: Ultrasonic Level Sensor, Fluid Level Detector, Bulk Solids Level Sensor, IO-Link Level Transmitter
Technical Specifications
- Medium: Fluids, bulk solids
- Measurement: Switch, Continuous
- Measuring range in tank: 200 mm to 1,300 mm
- Measuring range immersion tube: 200 mm to 5,000 mm
- Process pressure: 0 bar to 6 bar
- Process temperature: -25 °C to +70 °C
- Accuracy of sensor element: ≤ 2%
- Reproducibility: ± 0.15%
- Resolution: 0.18 mm
- Response time: 180 ms
- MTTF: > 100 years
- Communication interface: IO-Link
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: ≤ 80 mA
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x push-pull IO-Link 1.1
- Hysteresis: 20 mm
- Output current: 200 mA
- Time delay before availability: ≤ 300 ms
- Enclosure rating: IP67
- Ultrasonic frequency: 180 kHz
- Ultrasonic transducer: PTFE coating, FFKM
- Wetted parts: Stainless steel 1.4571 FFKM
- Process connection: G 1 A
- Housing material: Stainless steel 1.4571, PBT, TPU
- Dimensions (H x L x W): 150mm x 30mm x 30mm
- Weight: 0.21 kg
Key Features
- Suitable for fluids and bulk solids
- Switch and continuous measurement modes
- Measuring range in tank: 200 mm to 1,300 mm
- Measuring range immersion tube: 200 mm to 5,000 mm
- Process pressure up to 6 bar
- Process temperature range from -25 °C to +70 °C
- Integrated display for easy reading
- High accuracy sensor element with ≤ 2% accuracy
- Reproducibility of ± 0.15%
- Fast response time of 180 ms
- Long mean time to failure (MTTF) over 100 years
- Communication via IO-Link interface
- Supply voltage from 9 V DC to 30 V DC
- Power consumption ≤ 80 mA
- IP67 rated enclosure for protection against dust and water
- Ultrasonic frequency of 180 kHz with PTFE coated transducer
- Stainless steel wetted parts and housing for durability
- Process connection G 1 A
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Measurement and monitoring of fluid levels in tanks
- Bulk solids level detection in industrial processes
- Continuous and switch level measurement in process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption contributes to energy efficiency
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UP56-213115 Level Sensor is available for immediate purchase, ideal for industrial fluid and bulk solids level measurement applications.
