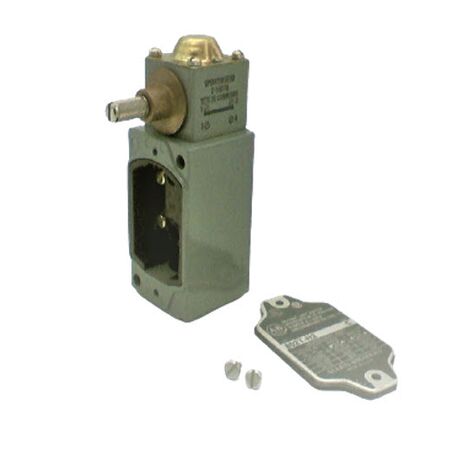

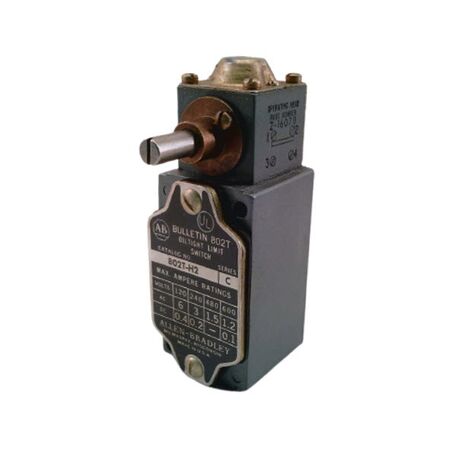

Lever Type Limit Switch | Oiltight Construction | 600 VAC & 10 AMP | by Allen-Bradley
The Lever Type Limit Switch by Allen-Bradley is designed for industrial automation control systems, featuring oiltight construction and a voltage rating of 600 VAC. With a spring return mechanism and high operating torque, it ensures reliable switching for machinery position detection and conveyor systems. Ideal for harsh environments, this switch is built for durability and long service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage Rating: 600 VAC
- Current Rating: 10 AMP
- NEMA Ratings: 4 and 13
- Construction: Oiltight
- Operation: Spring return, CCW operation only
- Circuit: 2-circuit
- Lever: Movable clockwise, fixed CCW operation
- Dimensions (H x L x W): 80mm x 100mm x 60mm
- Weight: 0.5 kg
Key Features
- Lever type limit switch with spring return
- Oiltight construction suitable for harsh environments
- High operating torque for reliable switching
- Non-plug-in design
- 2-circuit operation
- Counter-clockwise operation only with lever movable clockwise
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial electrical equipment to ensure safety and compliance.
Applications
- Industrial automation control systems
- Machinery position detection
- Conveyor systems
- Manufacturing equipment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable oiltight construction reduces maintenance and replacement waste
- Long service life minimizes environmental impact from frequent replacements
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802TH2 Lever Type Limit Switch is available for immediate purchase, ideal for industrial automation and machinery control applications.
