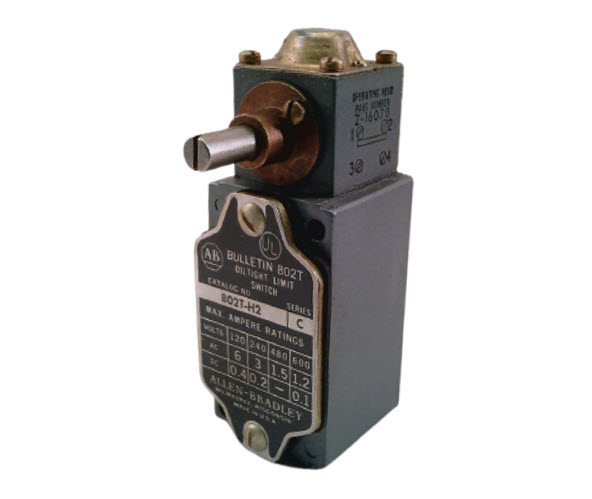

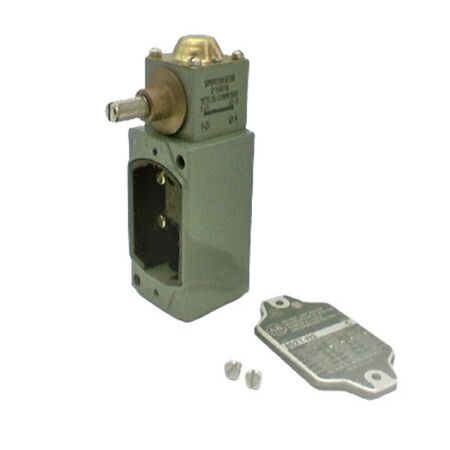

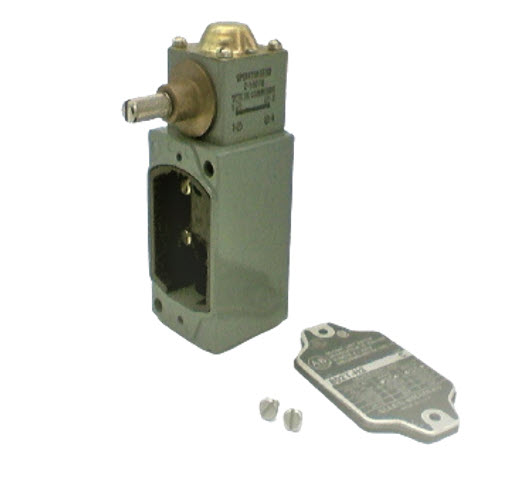

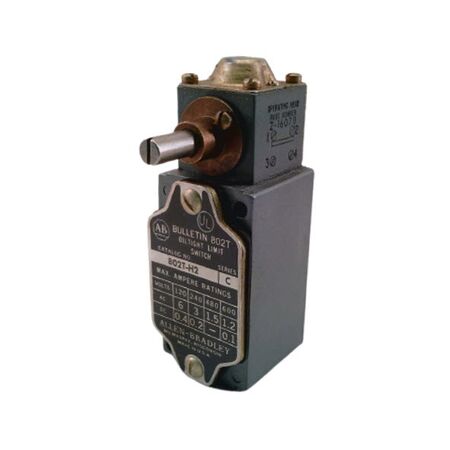

Product Name/Title: Allen-Bradley 802TH2 Lever Type Limit Switch
Brand: Allen-Bradley
SKU: 802TH2
Alternatively Known As: Lever Limit Switch, Industrial Limit Switch, Oiltight Limit Switch, Allen Bradley 802TH2
Technical Specifications
- Voltage Rating: 600 VAC
- Current Rating: 10 AMP
- NEMA Ratings: 4 and 13
- Construction: Oiltight
- Operation: Spring return, CCW operation only
- Circuit: 2-circuit
- Lever: Movable clockwise, fixed CCW operation
- Dimensions (H x L x W): 80mm x 100mm x 60mm
- Weight: 0.5 kg
Key Features
- Lever type limit switch with spring return
- Oiltight construction suitable for harsh environments
- High operating torque for reliable switching
- Non-plug-in design
- 2-circuit operation
- Counter-clockwise operation only with lever movable clockwise
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial electrical equipment to ensure safety and compliance.
Applications
- Industrial automation control systems
- Machinery position detection
- Conveyor systems
- Manufacturing equipment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable oiltight construction reduces maintenance and replacement waste
- Long service life minimizes environmental impact from frequent replacements
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802TH2 Lever Type Limit Switch is available for immediate purchase, ideal for industrial automation and machinery control applications.
