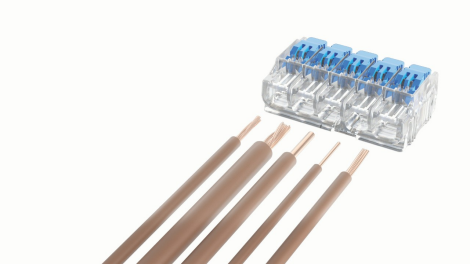

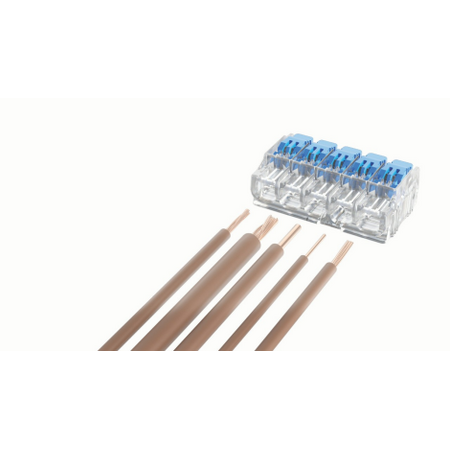

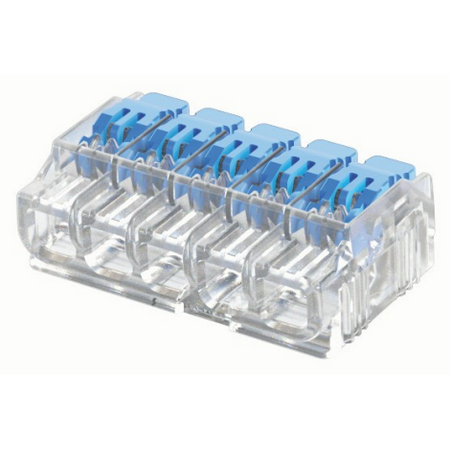

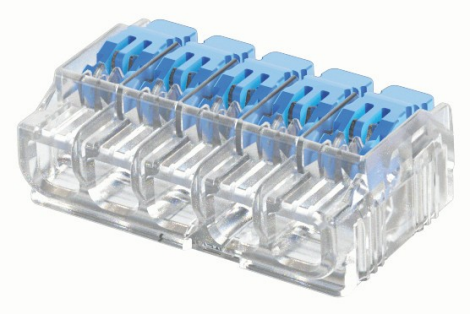

Lever Wire Connector 5 Wires Ideal Electrical
Ideal Electrical Lever Wire Connector 5 Wires.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Wire Range: solid and rigid stranded wires (7 strands) - 0.2 mm² to 4.0 mm²; flexible wires - 0.14 mm² to 4.0 mm² (24 - 12 AWG)
- Strip Length: 11-12 mm (0.45 inches)
- Current Rating: IEC 60998: 32A at 450V, UL 486C: 20A at 600V
- Temperature Rating: 85°C ambient (IEC), 105°C working (UL)
- Compliance: BS 7671:2018 (18th Edition), IEC 60998, UL 486C
- Approvals: CE, UKCA, UL, ENEC
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.1 kg
Key Features
- Clear housing for visual inspection of connections
- Optimized spring design for easy open levers and strong bite
- Single lever operation for less hand stress and better grip
- Reusable for solid and stranded wires
- Compatible with standard wire ranges from 0.14 mm² to 4.0 mm²
- Dedicated test ports for easy servicing
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Electrical wiring connections in residential, commercial, and industrial settings
- Joining solid, stranded, and flexible wires securely and efficiently
- Suitable for use in electrical installations requiring reliable wire connectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reusable design reduces waste by allowing multiple uses
- Secure connections reduce electrical faults and energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Ideal Electrical for specific warranty details.
Available Now
The Gen II Lever Wire Connector - 5 wires 40/Jar by Ideal Electrical is available now for immediate purchase. Ideal for electrical wiring projects requiring secure and reusable wire connections.
