LFP0300-G1DMB | Level sensors

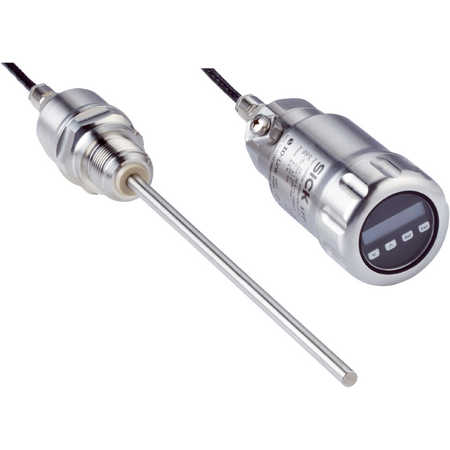

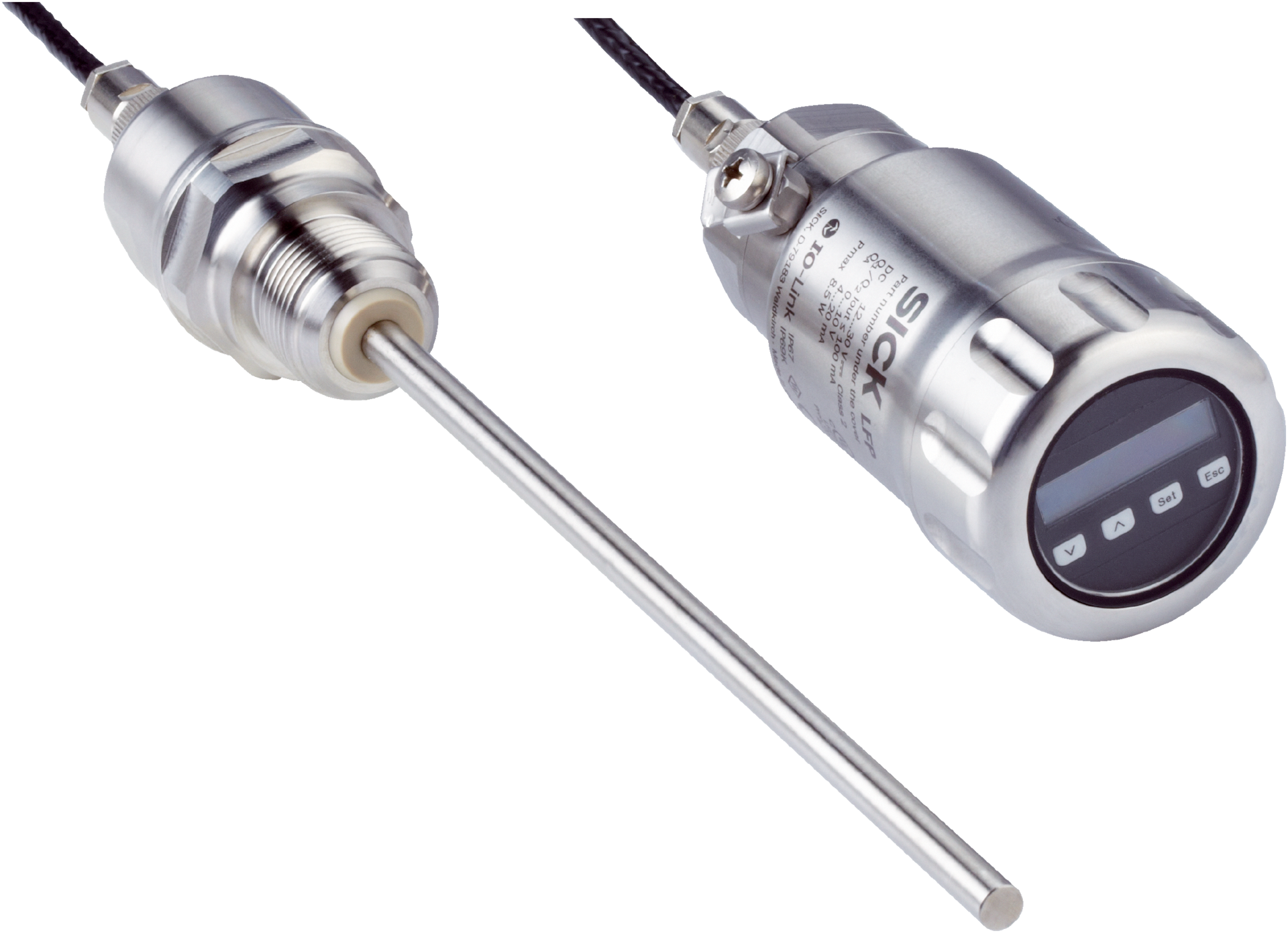

The SICK LFP0300-G1DMB level sensor features a hygienic rod probe design for fluid measurement with high accuracy and robust IP67/IP69 protection, suitable for industrial and hygienic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP0300-G1DMB | Level sensors
Brand: SICK
SKU: 1071124
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, Hygienic Level Sensor, IO-Link Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Remote amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 300 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20 °C to +180 °C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Initialization time: ≤2 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Length of cable: 3.3 m
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 500 Ohm at Uv > 13.5 V, 4 mA to 20 mA < 400 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: <100 nF
- Enclosure rating: IP67 (EN 60529), IP69 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA, 0 V
- Upper signal level: 20 mA to 20.5 mA, 10.5 V
- Wetted parts: Stainless steel 1.4404 / 316L, PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾ A
- Housing material: Stainless steel 1.4305
- Housing design: With viewing window made from PMMA (acrylic glass)
- Max. probe load: ≤6 Nm
- Material coaxial cable: FEP
- Ambient operating temperature: -20 °C to +60 °C
- Ambient temperature, storage: -40 °C to +80 °C
- Ambient temperature coaxial cable: -20 °C to +60 °C
- Outdoor use: Only with weather hood
- Dimensions (H x L x W): 300mm x 50mm x 30mm
- Weight: 0.5 kg
Key Features
- Rod probe in hygienic design suitable for fluids
- Remote amplifier design
- Measurement types: switch and continuous
- Process pressure range from -1 bar to 16 bar
- Process temperature range from -20 °C to +180 °C
- High accuracy with ±5 mm sensor element accuracy
- Reproducibility ≤ 2 mm and resolution of 1 mm
- Fast response time of 400 ms
- Communication interface: IO-Link
- Supply voltage 12 V DC to 30 V DC
- Output signals include PNP, PNP/NPN, 4 mA to 20 mA, and 0 V to 10 V
- Enclosure rating IP67 and IP69 for robust protection
- Wetted parts made of stainless steel 1.4404 / 316L and PEEK
- Housing with viewing window made from PMMA (acrylic glass)
- Cable length of 3.3 m with round connector M12 x 1, 5-pin
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor setup and IO-Link communication protocols to ensure proper operation and safety.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel and FDA certified materials
- Continuous and switch level detection in tanks and vessels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient operation with low power consumption
- Complies with food contact material standards supporting safe and sustainable food processing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LFP0300-G1DMB level sensor is available for immediate purchase, ideal for hygienic fluid level measurement applications in industrial and food processing environments.
