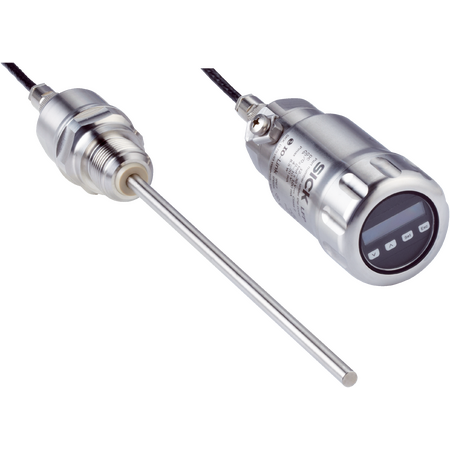

LFP1000-N2DMB | Level sensors

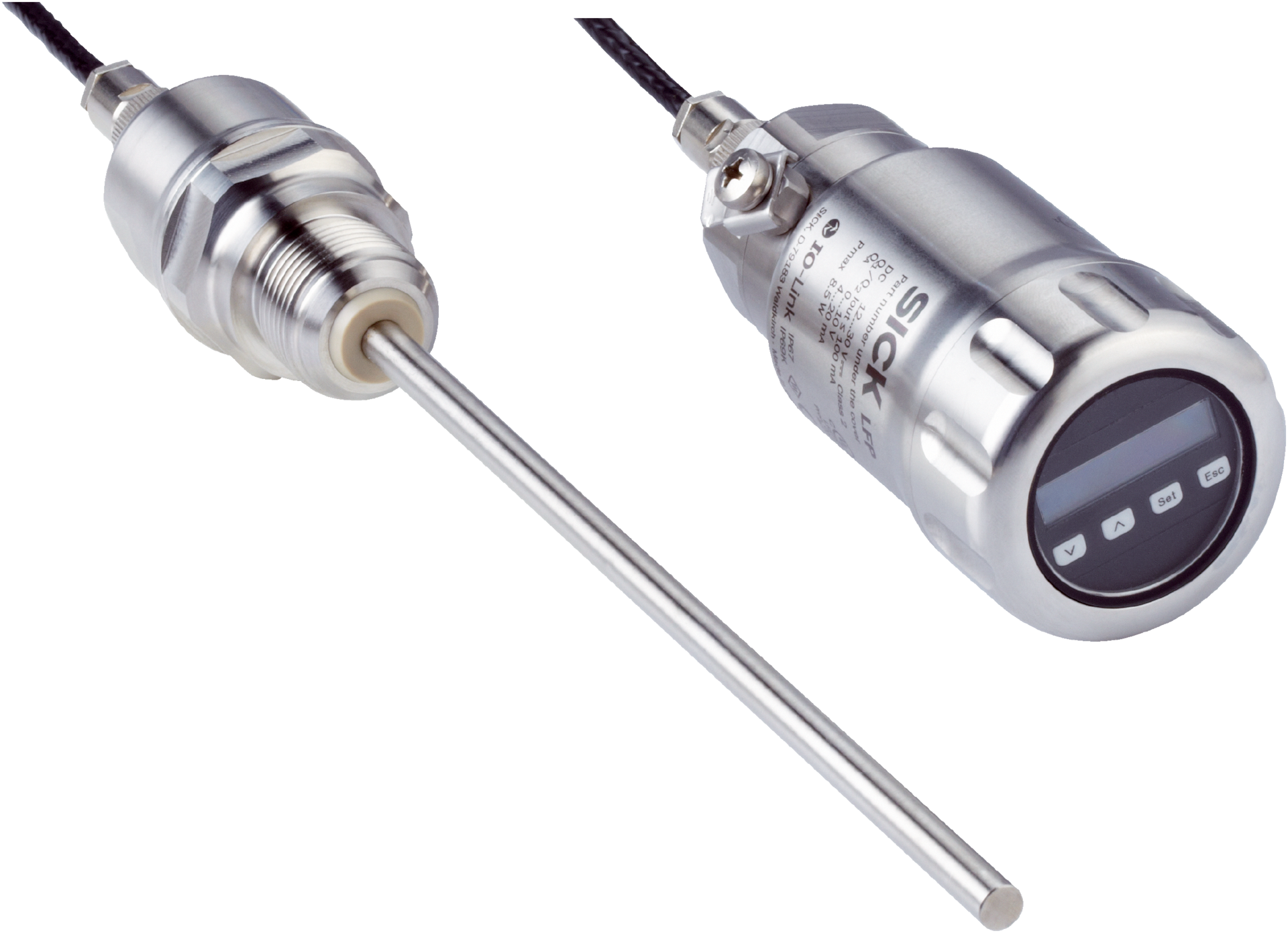

The SICK LFP1000-N2DMB level sensor features a hygienic rod probe and remote amplifier for precise fluid level measurement in industrial applications, supporting switch and continuous measurement with robust stainless steel construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFP1000-N2DMB | Level sensors
Brand: SICK
SKU: 1071147
Alternatively Known As: Fluid Level Sensor, Rod Probe Level Sensor, IO-Link Level Sensor, Hygienic Level Sensor, Continuous Level Transmitter
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Design: Remote amplifier
- Probe type: Rod probe in hygienic design
- Probe length: 1000 mm
- Process pressure: -1 bar to 16 bar
- Process temperature: -20°C to +180°C
- Accuracy of sensor element: ±5 mm
- Reproducibility: ≤2 mm
- Resolution: 1 mm
- Response time: 400 ms
- Dielectricity constant: ≥5 for rod probe, ≥1.8 with coaxial tube
- Conductivity: No limitation
- Deactivated area at process connection: 25 mm
- Deactivated area at end of probe: ≥10 mm
- MTTF: 194.3 years (EN ISO 13849-1)
- Display: Yes
- Communication interface: IO-Link
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: ≤75 mA at 24 V DC without output load
- Initialization time: ≤2 s
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Length of cable: 3.3 m
- Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA to 20 mA / 0 V to 10 V
- Output load: 4 mA to 20 mA < 500 Ohm at Uv > 13.5 V, 4 mA to 20 mA < 400 Ohm at Uv > 12 V, 0 V to 10 V > 750 Ohm at Uv ≥ 14 V
- Hysteresis: ≥2 mm
- Output current: <100 mA
- Inductive load: <1 H
- Capacitive load: <100 nF
- Enclosure rating: IP67 and IP69 (EN 60529)
- Temperature drift: <0.1 mm/K
- Lower signal level: 3.8 mA to 4 mA, 0 V
- Upper signal level: 20 mA to 20.5 mA, 10.5 V
- Wetted parts: Stainless steel 1.4404 / 316L, PEEK
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: ¾" NPT
- Housing material: Stainless steel 1.4305
- Housing design: With closed cover
- Max. probe load: ≤6 Nm
- Material coaxial cable: FEP
- Ambient operating temperature: -20°C to +60°C
- Ambient storage temperature: -40°C to +80°C
- Ambient temperature coaxial cable: -20°C to +60°C
- Outdoor use: Only with weather hood
- Dimensions (H x L x W): 40mm x 1000mm x 40mm
- Weight: 1.5 kg
Key Features
- Rod probe in hygienic design with 1000 mm length
- Remote amplifier design for flexible installation
- High accuracy with ±5 mm sensor element accuracy and ≤2 mm reproducibility
- Fast response time of 400 ms
- Communication via IO-Link interface
- Robust stainless steel housing and wetted parts (1.4404 / 316L and 1.4305)
- Protection rating IP67 and IP69 for harsh environments
- Wide supply voltage range from 12 V DC to 30 V DC
- Multiple output signals including PNP, NPN, 4-20 mA, and 0-10 V
- Suitable for process pressures from -1 bar to 16 bar and temperatures from -20°C to +180°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct setup and compliance with safety standards.
Applications
- Fluid level measurement in industrial processes
- Hygienic applications requiring stainless steel probes
- Continuous and switch level detection in liquids
- Use in environments with process pressures from -1 bar to 16 bar
- Suitable for temperatures from -20°C to +180°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Energy-efficient electronics with low power consumption (≤75 mA at 24 V DC)
- Compliant with China RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LFP1000-N2DMB Level Sensor is available for immediate purchase, ideal for industrial fluid level measurement applications requiring hygienic design and high accuracy.
