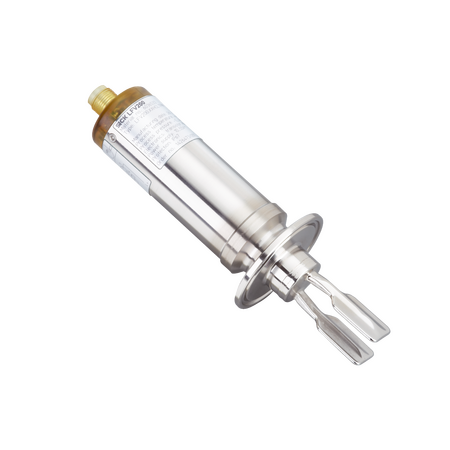

LFV200-XAHGPCPV | Level sensors
The SICK LFV200-XAHGPCPV is a tuning fork level sensor designed for fluid level detection with high accuracy and reliability, suitable for harsh industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFV200-XAHGPCPV | Level sensors
Brand: SICK
SKU: 6080492
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, LFV200 Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe type: Tuning fork
- Probe length: 67 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤ 1 mm
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤ 10 mA
- Initialization time: < 3 s
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Inductive load: ≤ 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: G ¾, DIN 3852-A PN 64 / 316L
- Housing material: Stainless steel 1.4404 / 316L, PEI
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 100mm x 67mm x 30mm
- Weight: 0.3 kg
Key Features
- Tuning fork probe type for reliable level switching
- Suitable for fluids with densities from 0.7 g/cm³ to 2.5 g/cm³
- Wide process pressure range from -1 bar to 64 bar
- Operates in process temperatures from -40 °C to +150 °C
- Stainless steel 1.4404 / 316L wetted parts for corrosion resistance
- IP65 rated enclosure for protection against dust and water
- Non-contact switch output signal with 2 mm hysteresis
- Valve plug DIN 43650 connection type
- VDE protection class 1 certified
- EHEDG and WHG approvals for hygienic and environmental compliance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical connections to ensure safety and compliance.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical and food industries
- Monitoring liquids with varying viscosities and densities
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact switching reduces wear and contamination risk
- Durable stainless steel construction extends product life
- Low power consumption (≤ 10 mA) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against defects.
Available Now
The SICK LFV200-XAHGPCPV tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
