LFV230-XXHCNCPV0117 | Level sensors

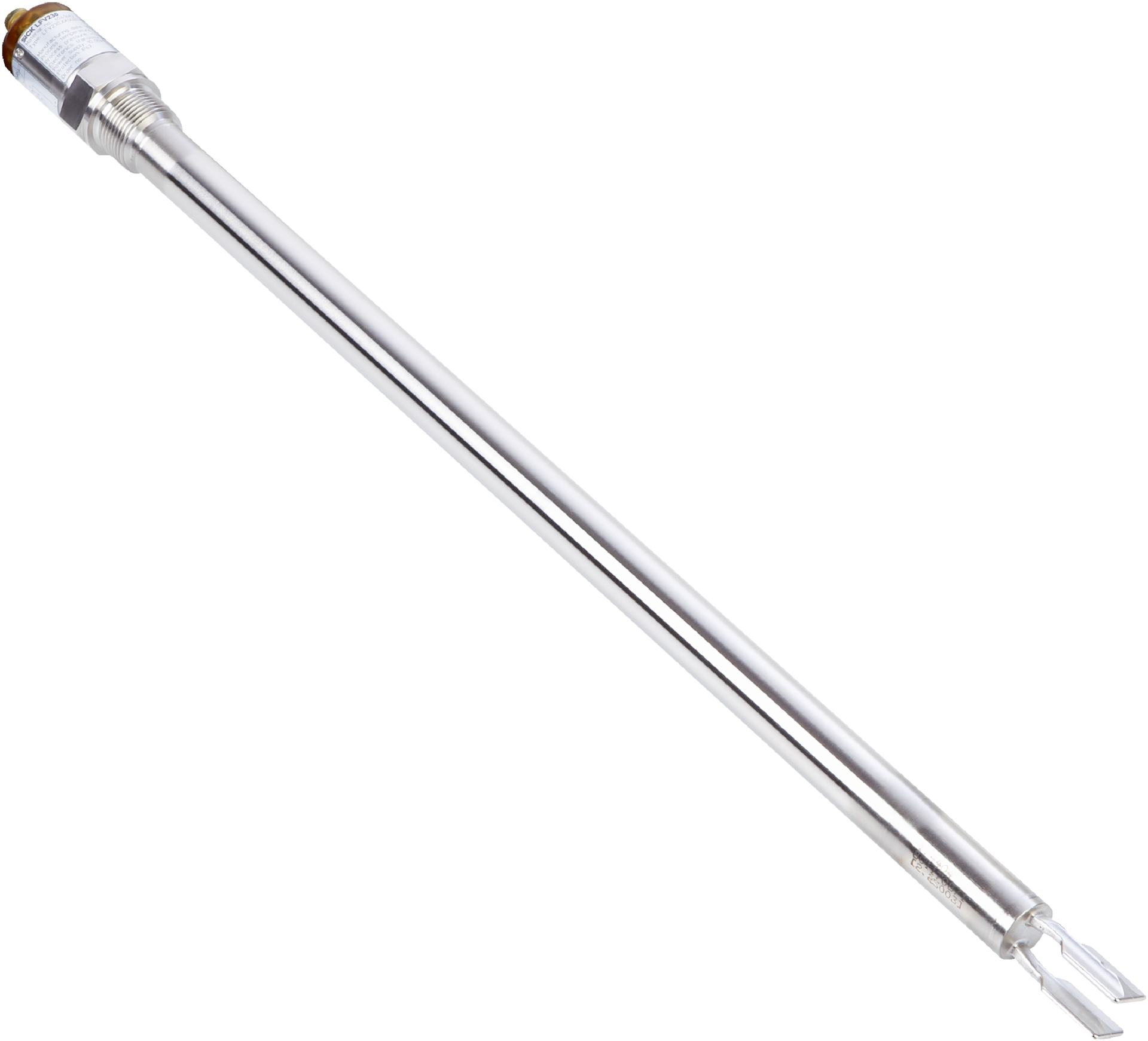

The SICK LFV230-XXHCNCPV0117 is a tuning fork level sensor designed for fluid measurement and switching applications, offering high accuracy, robust stainless steel construction, and suitability for harsh industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFV230-XXHCNCPV0117 | Level sensors
Brand: SICK
SKU: 6048751
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, LFV230 Level Sensor, SICK Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe type: Tuning fork
- Probe length: 117 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +150 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity: 0.1 mPas to 10,000 mPas
- Resolution: ≤ 1 mm
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤ 4.2 mA
- Initialization time: < 3 s
- Connection type: Valve plug DIN 43650
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Inductive load: ≤ 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Surface roughness: Ra ≤ 0.8 µm
- Process connection: Triclamp 2'' (PN 16, 316L, Ra < 0.8μm)
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 117mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable level detection
- Suitable for fluids with fill material density from 0.7 g/cm³ to 2.5 g/cm³
- Process pressure range from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +150 °C
- Non-contact switch output signal
- High accuracy with ±2 mm sensor element accuracy
- Robust stainless steel 1.4404 / 316L wetted parts
- IP65 rated enclosure for protection against dust and water
- Quick initialization time of less than 3 seconds
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical connections to ensure safety and compliance.
Applications
- Fluid level detection in industrial processes
- Measurement and switch applications in liquids
- Suitable for use in food, beverage, chemical, and pharmaceutical industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces wear and contamination risk
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption of ≤ 4.2 mA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV230-XXHCNCPV0117 tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level measurement and control applications.
