LFV230-XXSGAIPM0200 | Level sensors

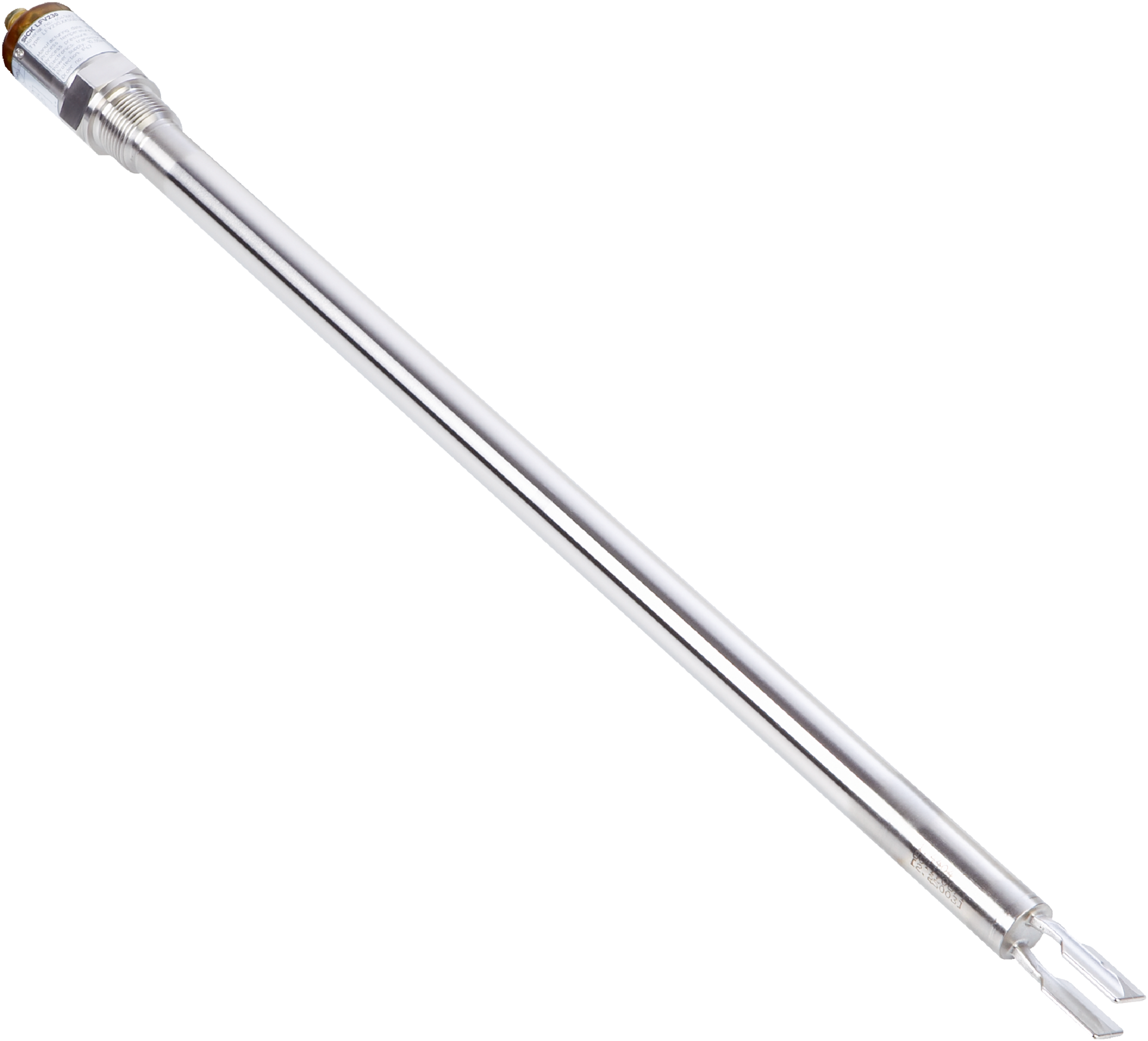

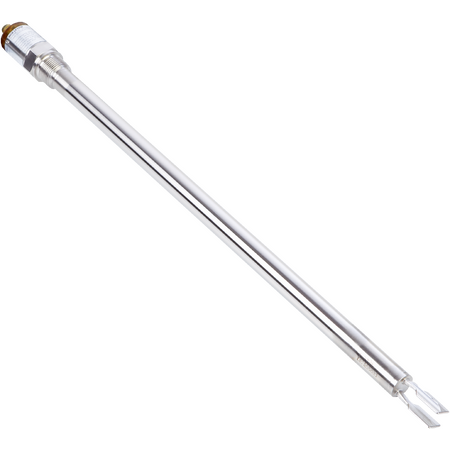

The SICK LFV230-XXSGAIPM0200 is a tuning fork level sensor designed for fluid measurement and switching, featuring high accuracy, robust stainless steel construction, and IO-Link communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFV230-XXSGAIPM0200 | Level sensors
Brand: SICK
SKU: 6066408
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, IO-Link Level Sensor, LFV230 Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe length: 200 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity: 0.1 mPas to 10,000 mPas
- Resolution: ≤ 1 mm
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Residual ripple: ≤ 5 V pp
- Power consumption: ≤ 10 mA
- Initialization time: < 2 s
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: < 250 mA
- Inductive load: ≤ 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G 1 A PN 64
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 200mm x 30mm x 30mm
- Weight: 0.5 kg
Key Features
- Tuning fork probe type for reliable level switching
- Process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- IO-Link communication interface for easy integration
- Robust stainless steel 1.4404 / 316L wetted parts
- IP67 rated enclosure for protection against dust and water
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and IO-Link communication protocols to ensure proper operation and safety.
Applications
- Fluid level detection in industrial processes
- Measurement and monitoring of liquids in tanks and pipelines
- Suitable for use in chemical, food, and pharmaceutical industries
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and prevent spills
- Durable stainless steel construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LFV230-XXSGAIPM0200 tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
