LFV230-XXSGBIPM0600 | Level sensors

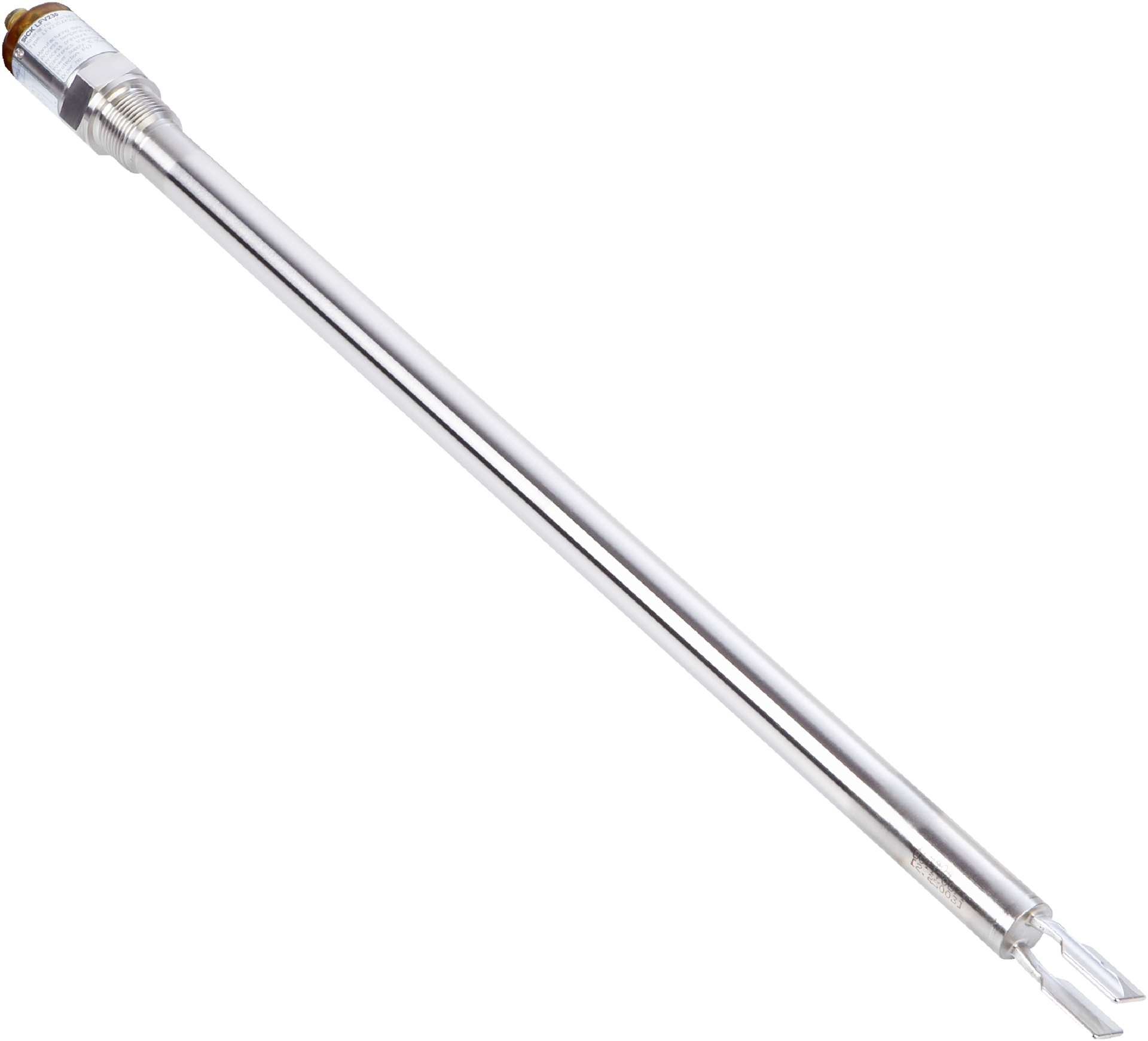

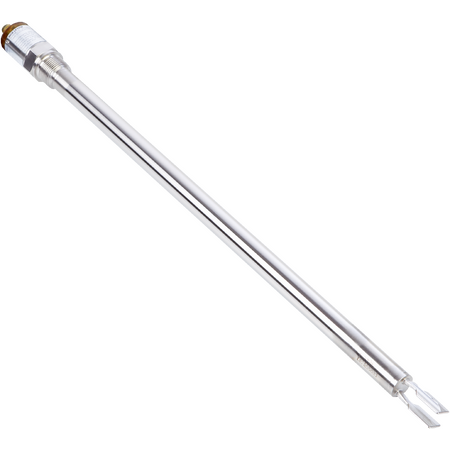

The SICK LFV230-XXSGBIPM0600 is a tuning fork level sensor designed for fluid level detection with high accuracy and robust stainless steel construction, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFV230-XXSGBIPM0600 | Level sensors
Brand: SICK
SKU: 6076056
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, IO-Link Level Sensor, Industrial Level Sensor
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe type: Tuning fork
- Probe length: 600 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ±2 mm
- Reproducibility: ≤1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤1 mm
- Response time: 500 ms
- MTBF: 1.25×10^7 hours
- Communication interface: IO-Link
- Supply voltage: 18 V DC to 30 V DC
- Residual ripple: ≤5 V pp
- Power consumption: ≤10 mA
- Initialization time: <2 s
- Connection type: M12 round connector, 4-pin
- Output signal: Transistor output PNP with IO-Link
- Hysteresis: 2 mm
- Output current: <250 mA
- Inductive load: ≤1 H
- Capacitive load: 100 nF
- Enclosure rating: IP67
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: G ¾ A PN 64
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 30mm x 600mm x 30mm
- Weight: 1.2 kg
Key Features
- Tuning fork probe type for reliable level switching
- Suitable for fluids with fill material density from 0.7 to 2.5 g/cm³
- Process pressure range from -1 bar to 64 bar
- Wide process temperature range from -40 °C to +100 °C
- High accuracy with ±2 mm sensor element precision
- Fast response time of 500 ms
- IP67 rated enclosure for robust protection
- Communication via IO-Link interface
- Stainless steel wetted parts (1.4404 / 316L) for corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with IO-Link devices and industrial sensor integration to ensure proper setup and safety compliance.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical and pharmaceutical industries
- Monitoring liquids in food and beverage production
- Water and wastewater treatment plants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise fluid level monitoring to reduce waste and spillage
- Durable stainless steel construction extends product life and reduces replacement frequency
- Low power consumption (≤10 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies, typically 1 to 2 years against defects.
Available Now
The SICK LFV230-XXSGBIPM0600 tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level monitoring and process control applications.
