LFV230-XXSNBCPV0750 | Level sensors

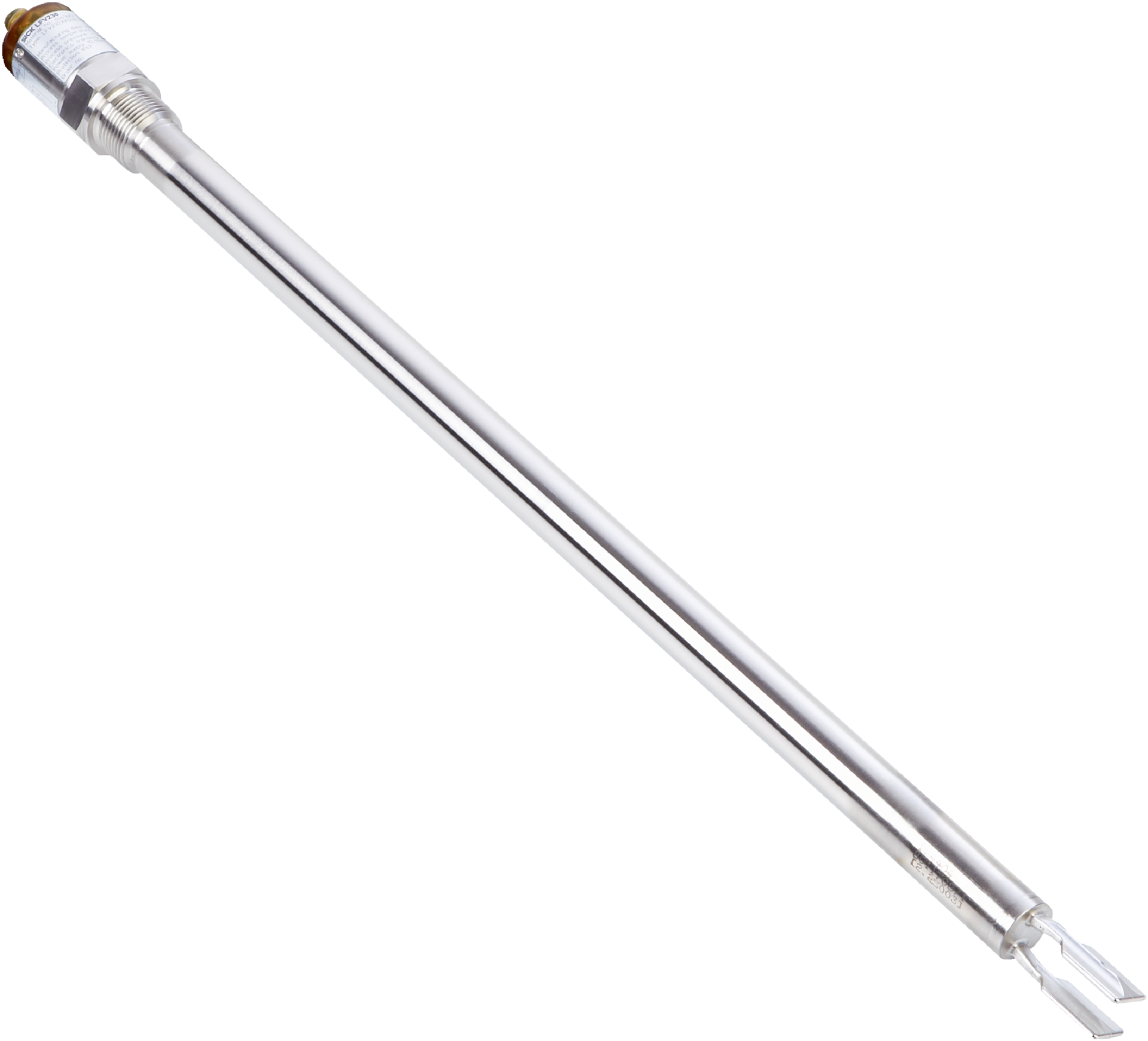

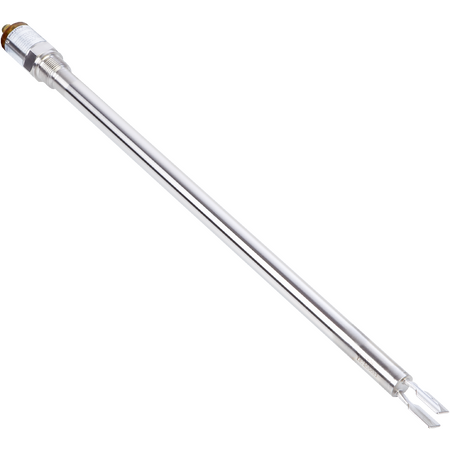

The SICK LFV230-XXSNBCPV0750 is a tuning fork level sensor designed for fluid level detection with high accuracy and robust stainless steel construction, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LFV230-XXSNBCPV0750 | Level sensors
Brand: SICK
SKU: 6074959
Alternatively Known As: Tuning Fork Level Sensor, Fluid Level Switch, LFV230 Level Sensor, SICK Level Detector
Technical Specifications
- Medium: Fluids
- Measurement: Switch
- Probe type: Tuning fork
- Probe length: 750 mm
- Process pressure: -1 bar to 64 bar
- Process temperature: -40 °C to +100 °C
- Fill material density: 0.7 g/cm³ to 2.5 g/cm³
- Accuracy of sensor element: ± 2 mm
- Reproducibility: ≤ 1 mm
- Viscosity range: 0.1 mPas to 10,000 mPas
- Resolution: ≤ 1 mm
- Response time: 500 ms
- MTBF: 1.25 x 10^7 hours
- Supply voltage: 20 V AC/DC to 253 V AC/DC
- Power consumption: ≤ 4.2 mA
- Initialization time: < 3 s
- Connection type: Valve plug DIN 43650
- Output signal: Non-contact switch
- Hysteresis: 2 mm
- Inductive load: ≤ 1 H
- Capacitive load: 100 nF
- Enclosure rating: IP65
- Temperature drift: 0.03 mm/K
- Wetted parts: Stainless steel 1.4404 / 316L
- Process connection: ¾" NPT PN 64
- Ambient operating temperature: -40 °C to +70 °C
- Ambient storage temperature: -40 °C to +80 °C
- Dimensions (H x L x W): 750mm x 30mm x 30mm
- Weight: 1.2 kg
Key Features
- Tuning fork probe type for reliable level switching
- Suitable for fluids with fill material density from 0.7 to 2.5 g/cm³
- Wide process pressure range from -1 bar to 64 bar
- Operating temperature range from -40 °C to +100 °C
- Non-contact switch output signal
- Robust stainless steel wetted parts (1.4404 / 316L)
- IP65 rated enclosure for protection against dust and water
- Fast response time of 500 ms
- High accuracy with ±2 mm sensor element precision
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with process instrumentation and electrical connections to ensure safety and compliance.
Applications
- Fluid level detection in industrial tanks and containers
- Process control in chemical and pharmaceutical industries
- Monitoring liquids in food and beverage production
- Water and wastewater treatment plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact switching reduces wear and extends sensor life, minimizing waste
- Energy-efficient operation with low power consumption (≤ 4.2 mA)
- Durable stainless steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty of 12 months against defects in materials and workmanship.
Available Now
The SICK LFV230-XXSNBCPV0750 tuning fork level sensor is available for immediate purchase, ideal for industrial fluid level monitoring and control applications.
