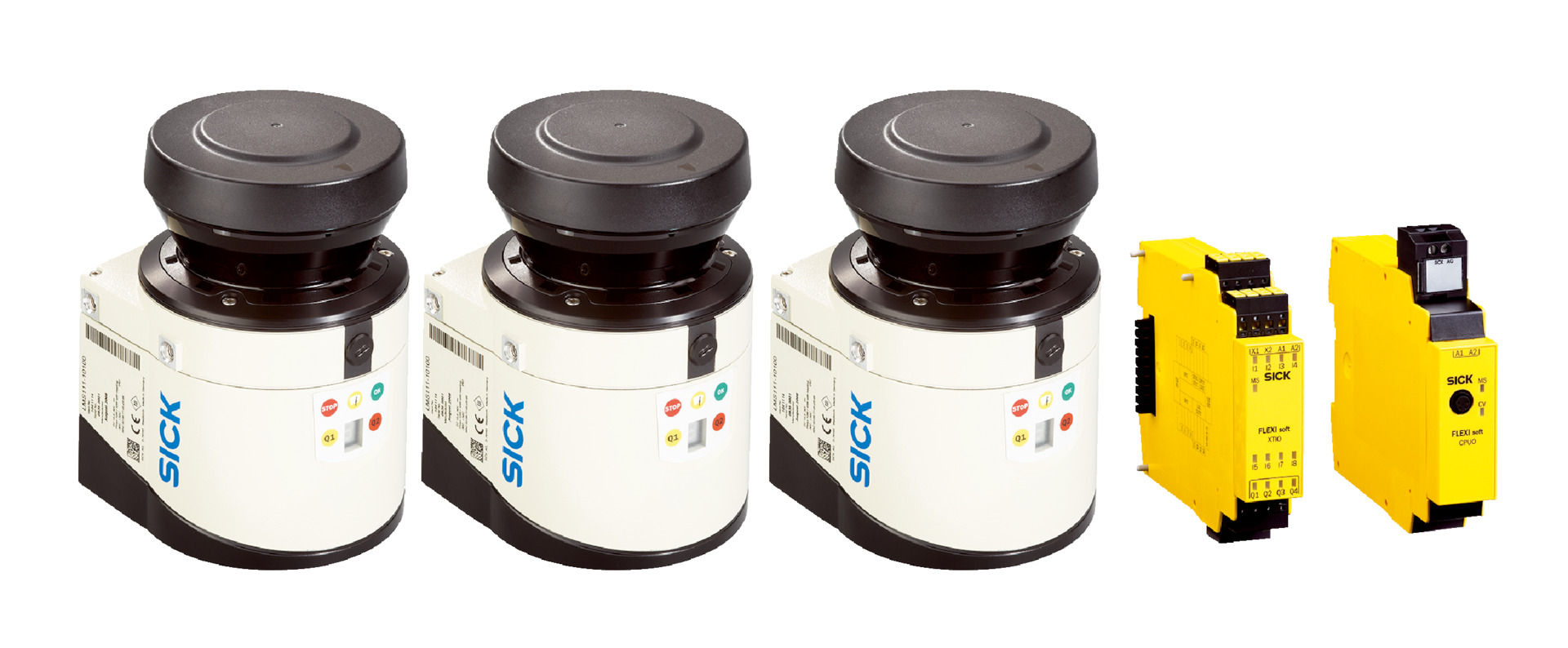

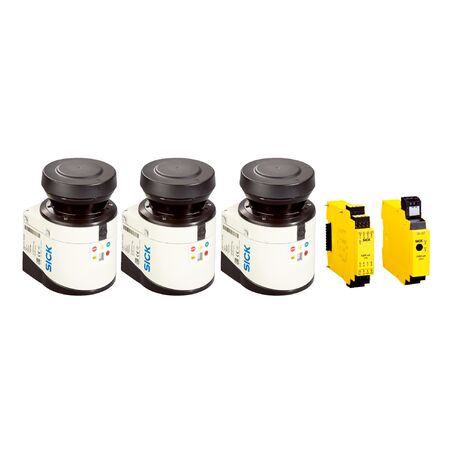

LiDAR Object Detection System AOS103 | 3 LMS111 Sensors | 270° Aperture Angle | IP65/IP67 Rated | by SICK
The LiDAR Object Detection System AOS103 features three LMS111 sensors with a 270° aperture angle, providing a maximum range of 18 meters for precise object detection. Designed for industrial automation, this system is ideal for environmental scanning and mapping, ensuring robust performance with an IP65/IP67 rated housing for protection against harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor model: LMS111-10100S01
- Number of sensors: 3
- Aperture angle: 270°
- Max range with 10% reflectivity: 18 m
- Supply voltage: 24 V DC
- Power consumption: 8 W per LMS111 sensor plus 35 W heating
- Enclosure rating: IP65/IP67 for sensor, IP20 for control
- Response time: 240 ms
- Number of safety inputs: 16
- Number of safe outputs: 8
- Configuration interfaces: Ethernet (sensor), USB (control)
- Operating temperature: -30°C to +50°C (sensor), -25°C to +55°C (control)
- Storage temperature: -30°C to +70°C (sensor), -25°C to +70°C (control)
- Ambient light immunity: 40,000 lx
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-27:2008-03
- Dimensions (H x L x W): 102mm x 162mm x 105mm
- Weight: 1.1 kg
Key Features
- Three LMS111-10100S01 sensors with 270° aperture angle
- Maximum range of 18 meters with 10% reflectivity
- IP65/IP67 rated sensor housing for robust environmental protection
- Ethernet and USB configuration interfaces
- 16 safety inputs and 8 safe outputs for system integration
- Response time of 240 ms
- Operating temperature range from -30°C to +50°C (sensor) and -25°C to +55°C (control)
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and object detection
- Non-safety related monitoring and measurement
- Environmental scanning and mapping
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise object detection reducing unnecessary machine operation and energy waste
- Robust IP65/IP67 housing ensures long product life reducing electronic waste
Warranty Information
Warranty details available upon request from SICK.
Available Now
The SICK AOS103 LiDAR Object Detection System is available for immediate purchase, ideal for industrial automation and object detection applications.
