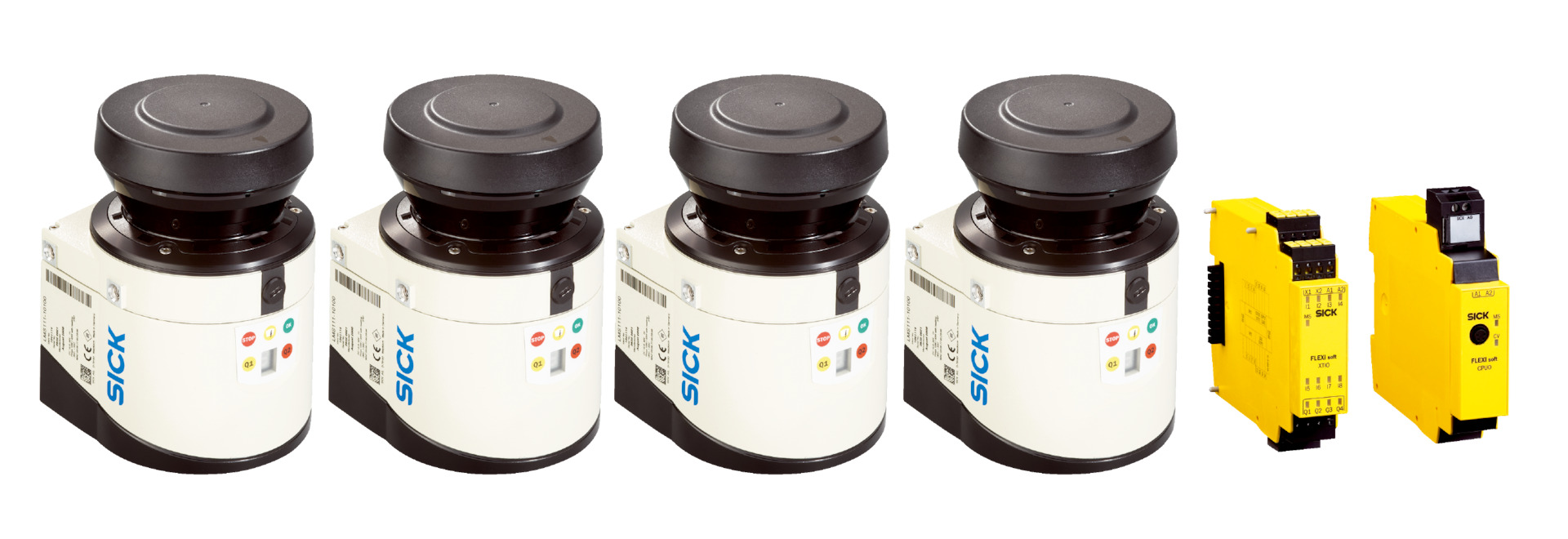

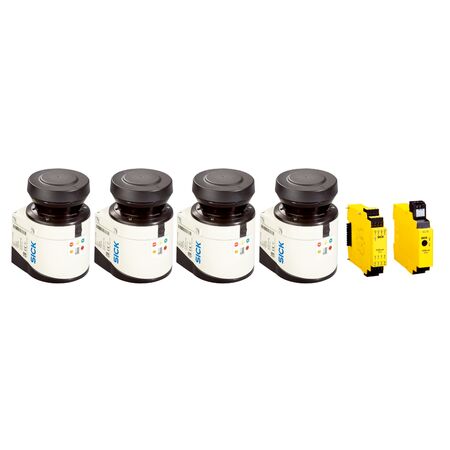

LiDAR Object Detection System AOS104 | 4 Sensors with 270° Aperture | 18m Max Range | IP65/IP67 Rated | by SICK
The LiDAR Object Detection System AOS104 features four LMS111-10100S01 sensors with a 270° aperture angle, providing a maximum range of 18 meters for precise object detection. Designed for industrial automation, this system is ideal for environmental scanning and mapping, ensuring robust performance with its IP65/IP67 rated housing. With a response time of 240 ms and flexible integration options, it’s perfect for non-safety related monitoring and control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor model: LMS111-10100S01
- Number of sensors: 4
- Aperture angle: 270°
- Max range with 10% reflectivity: 18 m
- Supply voltage: 24 V DC
- Power consumption: 8 W per LMS111 sensor, heating 35 W per LMS
- Enclosure rating: IP65/IP67 for sensor, IP20 for control
- Response time: 240 ms
- Number of safety inputs: 16
- Number of safe outputs: 8
- Configuration interfaces: Ethernet (sensor), USB (control)
- Operating temperature sensor: -30°C to +50°C
- Operating temperature control: -25°C to +55°C
- Storage temperature sensor: -30°C to +70°C
- Storage temperature control: -25°C to +70°C
- Ambient light immunity: 40,000 lx
- Vibration resistance: IEC 60068-2-6:2007-12
- Shock resistance: IEC 60068-2-27:2008-03
- Dimensions (H x L x W): 162mm x 102mm x 105mm
- Weight: 1.1 kg
Key Features
- Four LMS111-10100S01 sensors with 270° aperture angle
- Maximum range of 18 meters with 10% reflectivity
- IP65/IP67 rated sensor housing for robust environmental protection
- Ethernet and USB configuration interfaces
- 16 safety inputs and 8 safe outputs for flexible integration
- Response time of 240 ms
- Operating temperature range from -30°C to +50°C for sensor
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical wiring standards.
Applications
- Industrial automation and object detection
- Non-safety related monitoring and control
- Environmental scanning and mapping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient automation reducing energy consumption
- Durable IP65/IP67 housing extends product life reducing waste
Warranty Information
Warranty details available upon request from SICK; standard manufacturer warranty applies.
Available Now
The SICK AOS104 LiDAR Object Detection System is available for immediate purchase, ideal for industrial automation and object detection applications.
