LiDAR Safety Sensor BAS3502-E | Dual 2D Sensors | IP65/IP67 Rated | Visual & Acoustic Collision Warning | by SICK
The LiDAR Safety Sensor BAS3502-E features dual 2D LiDAR sensors for comprehensive monitoring, ensuring safety in indoor and outdoor environments. With visual and acoustic collision warnings, including configurable alarm levels up to 98 dB, this sensor is perfect for electric forklifts, enhancing workplace safety and reducing accident risks. Its robust IP65/IP67 rated enclosure guarantees reliable performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of sensors: 2
- Power consumption: 10 W (max 13 W)
- Machine operating voltage: 24 V to 72 V
- Enclosure rating: IP65 / IP67
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
- Ambient operating temperature: -20 °C to +50 °C
- Ambient storage temperature: -25 °C to +55 °C
- Warning zones: 2
- Visual and acoustic collision warning functions
- Includes control module assembly with power and reverse cable
- Signal light bar with tri-color visual and configurable audible alarm levels up to 98 dB
- Mounting kit and connection cables included
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.32 kg
Key Features
- Dual 2D LiDAR sensors for comprehensive monitoring
- Visual and acoustic collision warning with configurable audible alarm levels up to 98 dB
- IP65 / IP67 rated enclosure for robust outdoor and indoor use

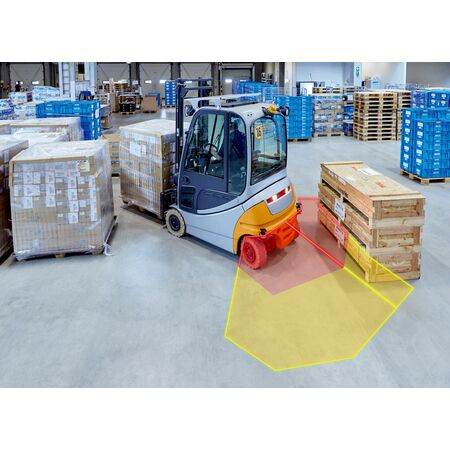

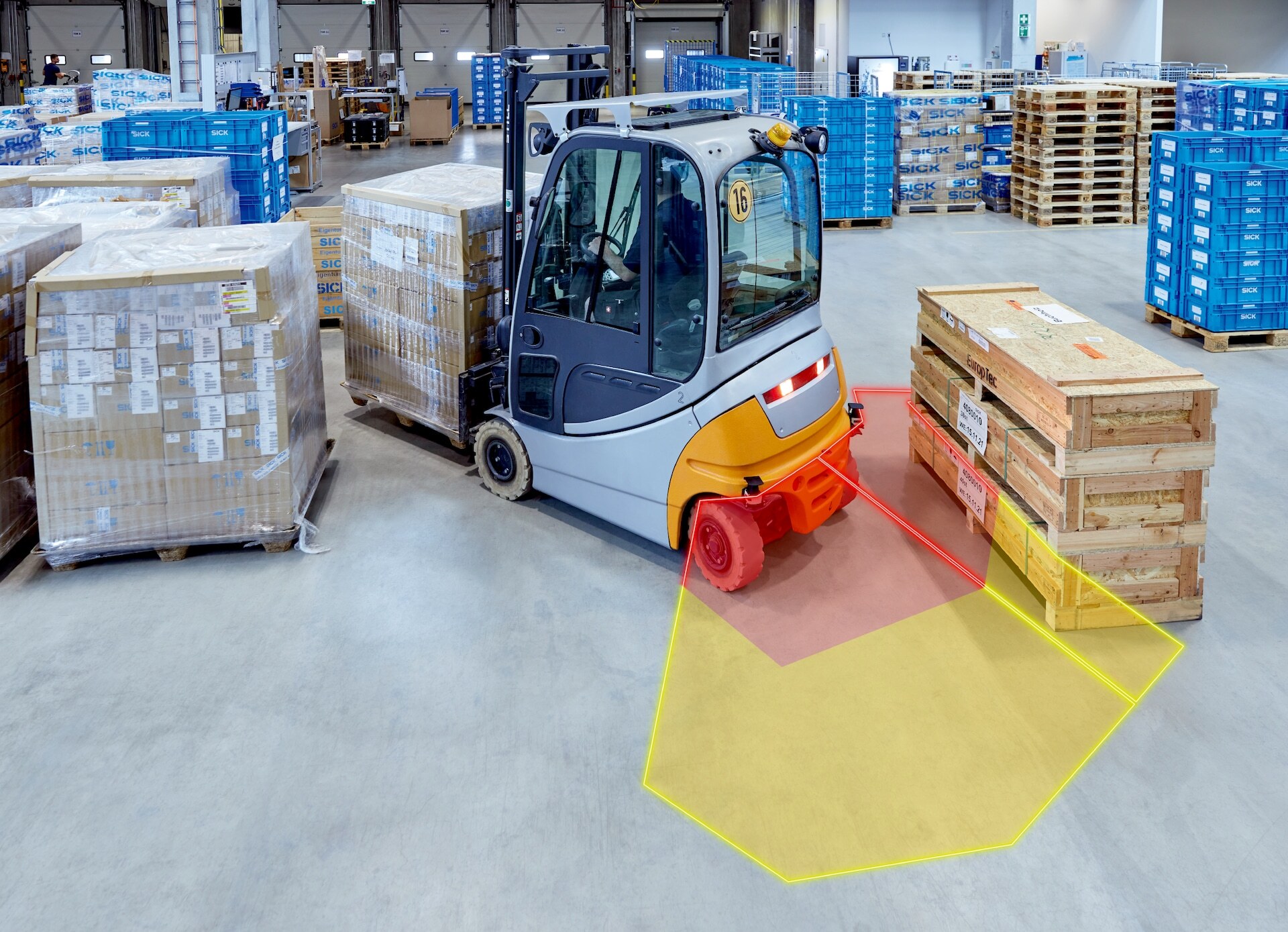

- Two warning zones covering vehicle rear end blind spots or side cover
- Supports machine reverse signal voltage from 24 V to 72 V
- Includes signal light bar with tri-color visual indicators
- USB and HMI interfaces for parameterization and signal light bar control
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with vehicle systems and compliance with safety standards.
Applications
- Indoor and outdoor areas up to 8 meters
- Electric forklifts for collision avoidance and safety
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accident-related environmental impact
- Energy-efficient operation with low power consumption of 10 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK BAS3502-E LiDAR Safety System is available for immediate purchase, ideal for enhancing safety on electric forklifts in industrial indoor and outdoor environments.
