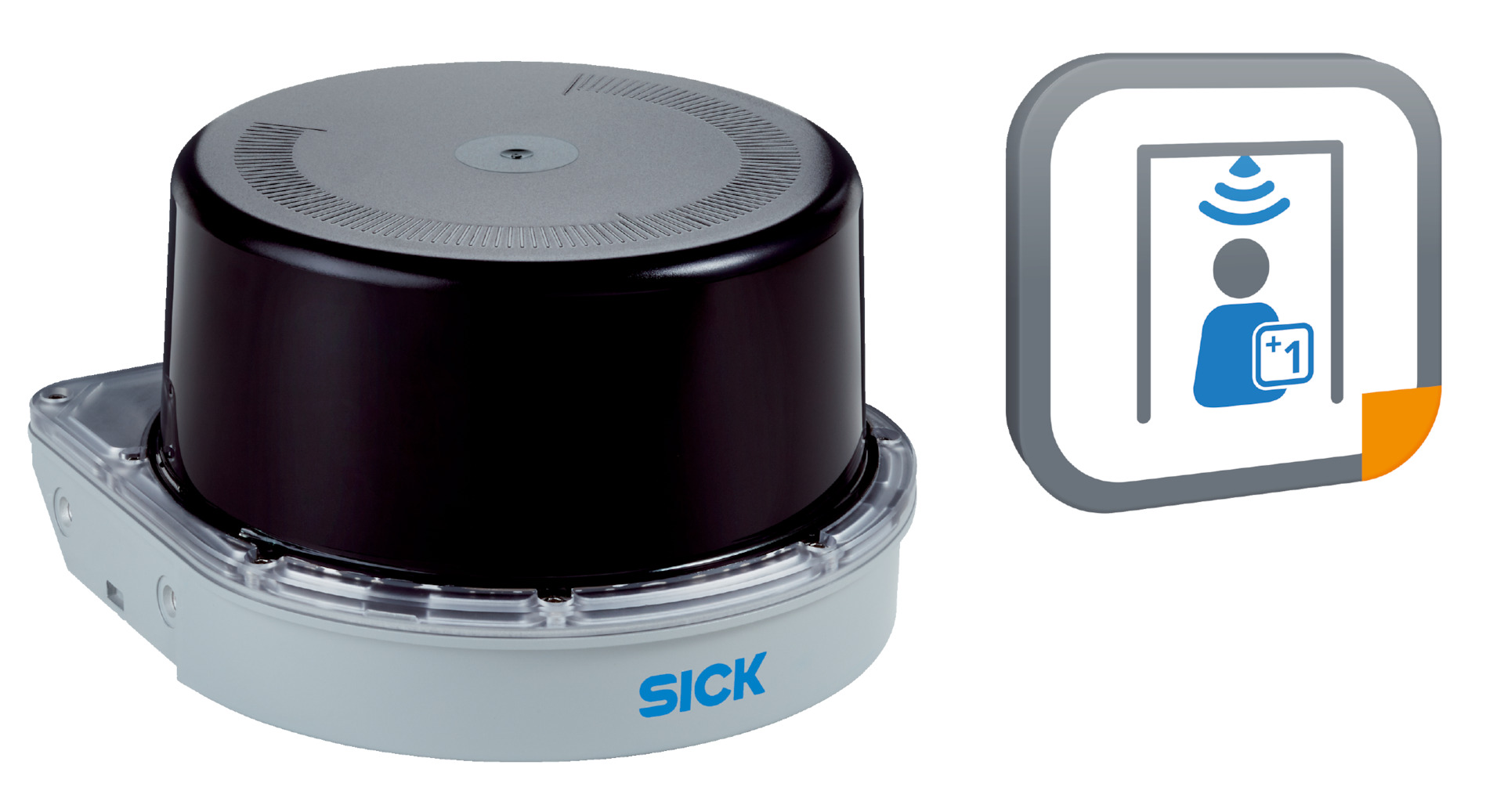

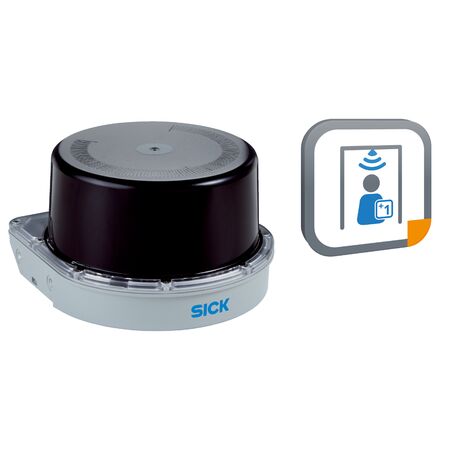

LiDAR Sensor MRS1104A-111011S01 | HDDM+ Measurement | 16m Scanning Range | IP Protection Class III | by SICK
The LiDAR Sensor MRS1104A-111011S01 features advanced HDDM+ measurement technology and a scanning range of up to 16 meters, making it ideal for applications like people counting and industrial automation. With a robust design and low power consumption, this sensor ensures reliable performance in various environments, while its long MTBF and MTTFD contribute to reduced waste and maintenance frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 93mm x 152mm x 150mm
- Weight: 1.2 kg
Key Features
- Measurement principle: HDDM+
- Infrared light source (850 nm)
- Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 275°, Vertical 7.5° over 4 scan layers
- High angular resolution: Horizontal 0.0625° interlaced, Vertical 2.5°
- Scanning frequency: 50 Hz, 4 x 12.5 Hz
- Working range: 10 m width counting range
- Scanning range: 16 m at 10% remission factor, 30 m at 90% remission factor
- Spot size: 10.4 mrad x 8.7 mrad
- Evaluates up to 3 echoes
- Self-heating for stable operation
- Output data includes IMU (secondary sensor data)
- Scan/frame rate: 55,000 to 165,000 measurement points per second
- Response time: 20 ms for 4 layers, 80 ms for 1 layer
- Filters include fog, particle, average, median, ground reference, edge, and echo filters
- Up to 64 field sets and 16 simultaneous evaluation cases
- Connection via M12 round connectors with swivel connector
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 13 W, max 30 W for 1 s at startup
- Housing made of AlSi12 with polycarbonate optics cover
- Protection class III (IEC 61140:2016-11)
- Electrical safety compliant with IEC 61010-1:2010-06
- MTBF: 50 years
- MTTFD: > 100 years
- Ethernet interface with TCP/IP and UDP/IP, data rate 10/100 MBit/s
- Digital inputs/outputs: 8 multiport I/O
- Optical indicators: 2 LEDs
- Configuration software: SICK AppStudio
- Electromagnetic compatibility compliant with EN 61000-6-2:2005 and EN 61000-6-3:2007+A1:2011
- Vibration resistance: 10 Hz to 150 Hz, 5 g, 20 frequency cycles
- Shock resistance: 15 g, 11 ms, 6 single shocks per axis; 10 g, 16 ms, 1000 continuous shocks per axis
- Operating temperature range: -30 °C to +50 °C
- Storage temperature range: -40 °C to +75 °C
- Ambient light immunity: 80 klx
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety and operational standards.
Applications
- People counting
- Industrial automation
- Object detection and measurement
- Environmental scanning and monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Long MTBF and MTTFD reduce waste and replacement frequency
- Robust design minimizes environmental impact from maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MRS1104A-111011S01 LiDAR Sensor is available now for immediate purchase. Ideal for industrial automation, people counting, and environmental scanning applications.
