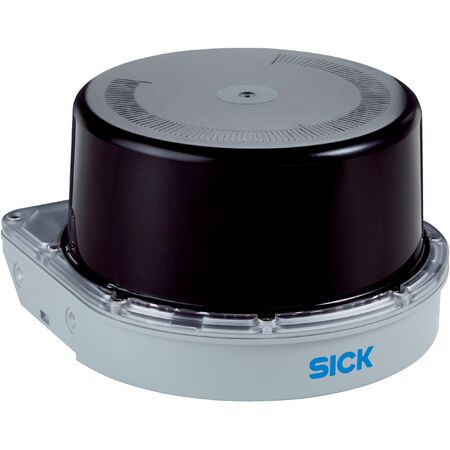

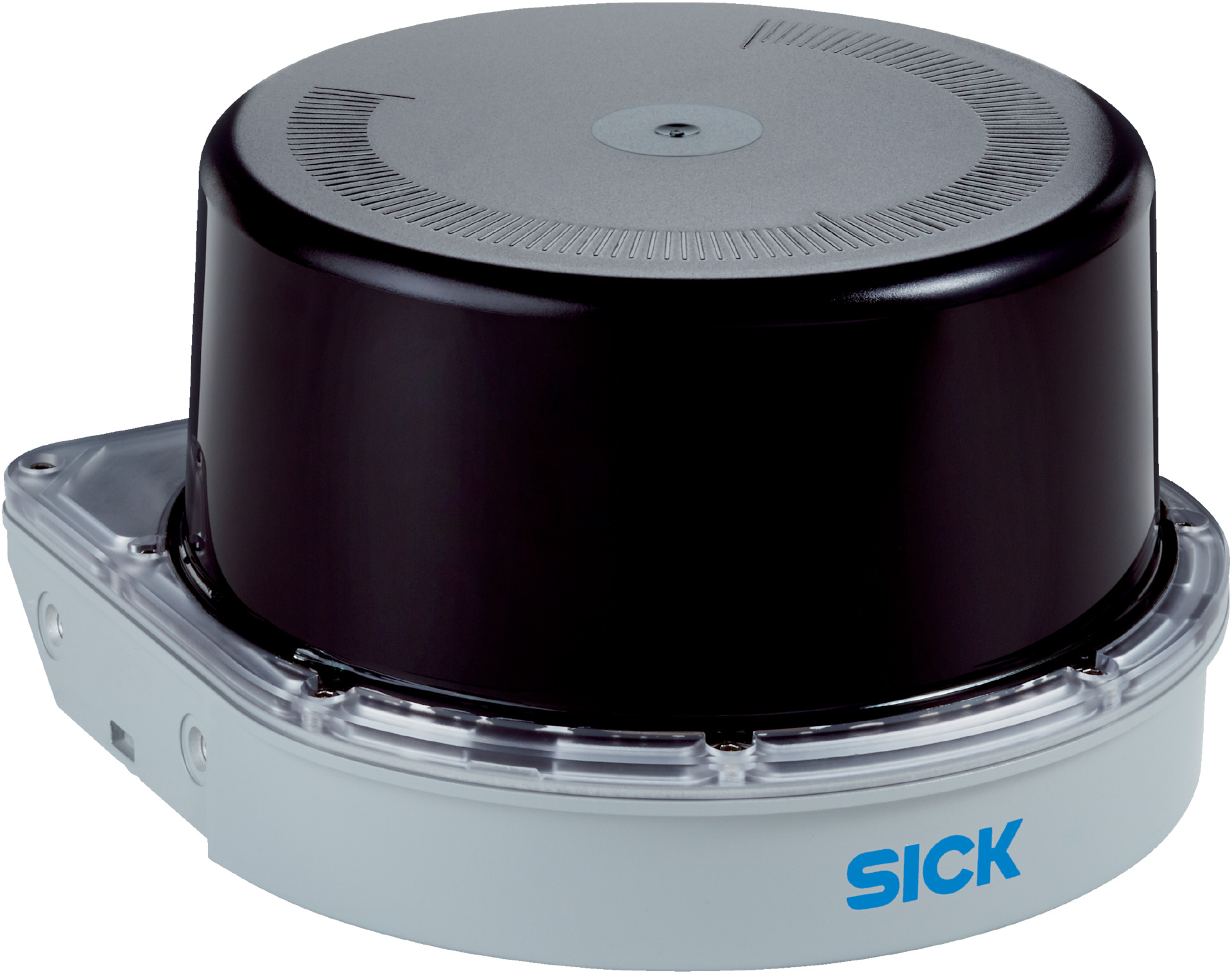

LiDAR Sensor MRS1104C-111011S02 | HDDM+ Measurement | IP65 & IP67 Rated | by SICK
The LiDAR Sensor MRS1104C-111011S02 utilizes HDDM+ technology with an infrared light source for precise distance measurement. With a wide horizontal aperture angle of 275° and a scanning frequency of 50 Hz, it's perfect for both indoor and outdoor applications, including industrial automation and robotics. Its robust IP65 and IP67 housing ensures durability in various environments, making it a reliable choice for object detection and environmental mapping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 275°, Vertical 7.5° over 4 scan layers
- Horizontal angular resolution: 0.0625°, interlaced
- Vertical angular resolution: 2.5°
- Scanning frequency: 50 Hz (4 x 12.5 Hz)
- Working range: 0.2 m to 64 m
- Scanning range at 10% remission: 16 m
- Scanning range at 90% remission: 30 m
- Spot size: 10.4 mrad x 8.7 mrad
- Evaluated echoes: 3
- Connection type: M12 round connectors with swivel connector
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 13 W, max 37 W, startup max 30 W for 1 s
- Housing material: AlSi12 with polycarbonate optics cover
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Electrical safety: IEC 61010-1:2010-06
- MTBF: 50 years
- Output data: Contamination indication, IMU secondary sensor data
- Scan/frame rate: 55,000 to 165,000 measurement points per second
- Response time: 20 ms for 4 layers, 80 ms for 1 layer
- Systematic error: ± 60 mm
- Statistical error: ≤ 30 mm
- Number of field sets: Up to 128 fields
- Simultaneous evaluation cases: Up to 16
- Filters: Fog, particle, average, median, ground reference, edge, echo
- Ethernet: TCP/IP, UDP/IP, 10/100 MBit/s
- Digital inputs/outputs: 8 multiport I/O
- Optical indicators: 2 LEDs
- Configuration software: SOPAS ET, web server display
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Vibration resistance: 10 Hz to 150 Hz, 5 g, 20 cycles
- Shock resistance: 15 g, 11 ms, 6 shocks per axis; 10 g, 16 ms, 1000 shocks per axis
- Ambient light immunity: 80 klx
- Dimensions (H x L x W): 93mm x 152mm x 150mm
- Weight: 1.2 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1 standards
- Wide aperture angle: Horizontal 275°, Vertical 7.5° over 4 scan layers
- High scanning frequency: 50 Hz with 4 x 12.5 Hz layers
- Self-heating for stable operation
- Working range from 0.2 m up to 64 m
- Multiple evaluated echoes (up to 3)
- Robust housing with IP65 and IP67 protection ratings
- Power consumption typically 13 W, max 37 W
- Integrated filters including fog, particle, average, median, ground reference, edge, and echo filters
- Ethernet interface with TCP/IP and UDP/IP support
- Configurable via SOPAS ET software and web server display
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure compliance with electrical and safety standards.
Applications
- Outdoor and indoor distance measurement and object detection
- Industrial automation and safety monitoring
- Robotics and autonomous vehicle navigation
- Environmental mapping and surveillance
Standards & Compliance
- Complies with AS/NZS 61010-1 for electrical safety
- Complies with AS/NZS 4801 Occupational Health & Safety Management Systems
Environmental Benefits
- Durable housing and long MTBF of 50 years reduce waste and replacement frequency
- Low power consumption design minimizes energy use
- Robust against environmental factors reducing need for frequent maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MRS1104C-111011S02 LiDAR sensor is available for immediate purchase, ideal for industrial automation, robotics, and environmental sensing applications.
