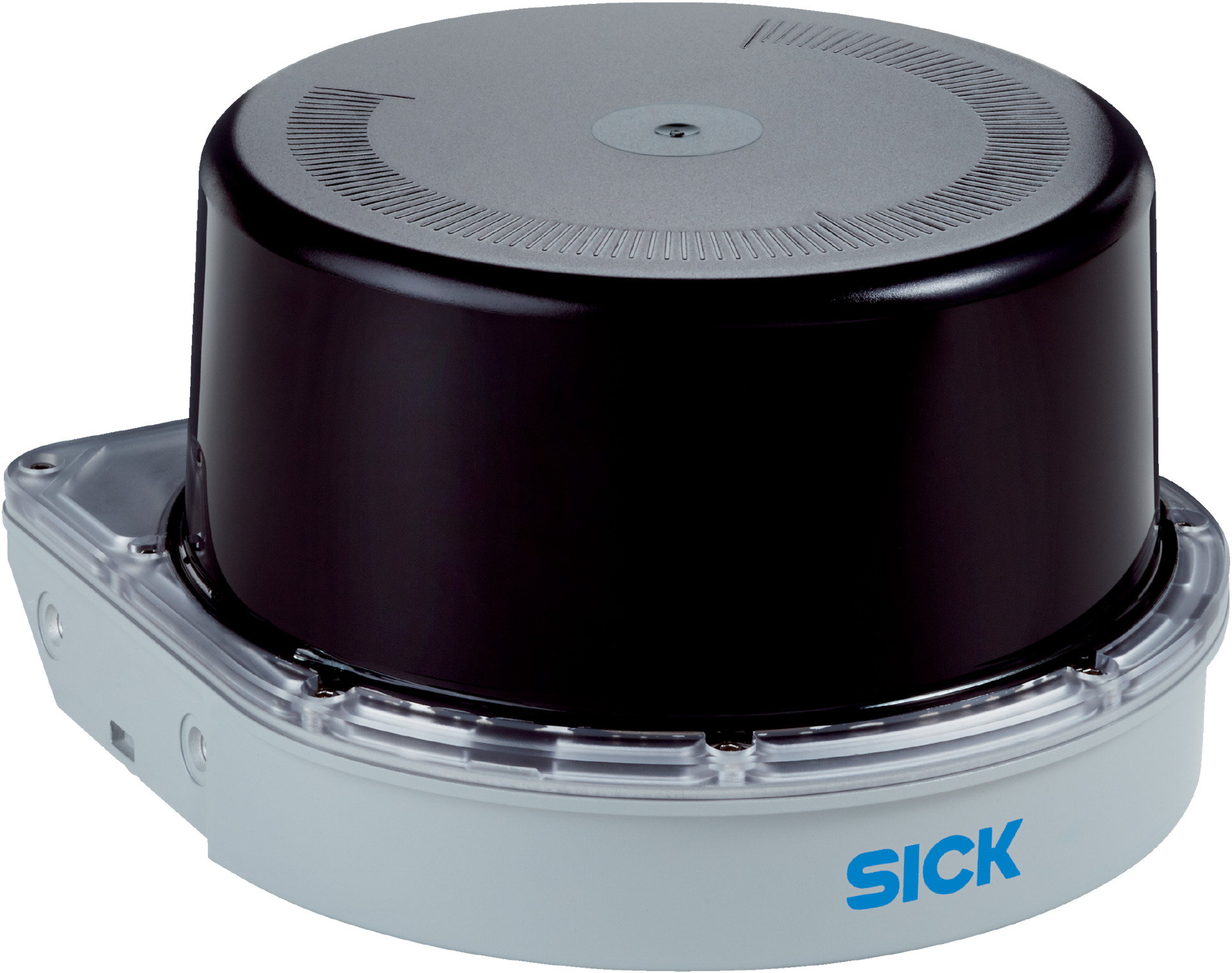

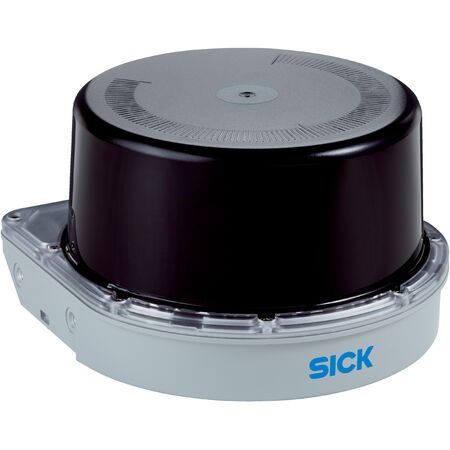

LiDAR Sensor SICK MRS1104P-111011 | HDDM+ Measurement | 275° Aperture Angle | 50 Hz Scanning Frequency | by SICK
The LiDAR Sensor SICK MRS1104P-111011 features advanced HDDM+ measurement technology and an infrared light source, making it perfect for both indoor and outdoor distance measurement and scanning. With a wide aperture angle of 275° and a high scanning frequency of 50 Hz, this sensor is designed for industrial automation and safety monitoring, ensuring precise 3D environment mapping and object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
- Aperture angle: Horizontal 275°, Vertical 7.5° over 4 scan layers
- Horizontal angular resolution: 0.0625° interlaced
- Vertical angular resolution: 2.5°
- Scanning frequency: 50 Hz (4 x 12.5 Hz)
- Working range: 0.2 m to 64 m
- Scanning range at 10% remission factor: 16 m
- Scanning range at 90% remission factor: 30 m
- Spot size: 10.4 mrad x 8.7 mrad
- Amount of evaluated echoes: 3
- Connection type: M12 round connectors with swivel connector
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: ≤ 13 W (max 30 W for 1 s at startup)
- Housing material: AlSi12 with polycarbonate optics cover
- Protection class: III (IEC 61140:2016-11)
- Electrical safety: IEC 61010-1:2010-06
- MTBF: 50 years
- MTTFD: > 100 years
- Output data: LiDAR-LOC with IMU secondary sensor data
- Scan/frame rate: 55,000 to 165,000 measurement points per second
- Response time: 20 ms for 4 layers, 80 ms for 1 layer
- Systematic error: ± 60 mm
- Statistical error: ≤ 30 mm
- Number of field sets: Up to 64
- Simultaneous evaluation cases: Up to 16
- Filters: Fog, particle, average, median, ground reference, edge, echo
- Ethernet: TCP/IP, UDP/IP at 10/100 MBit/s
- Digital inputs/outputs: 8 multiport I/O
- Optical indicators: 2 LEDs
- Configuration software: SICK AppStudio
- Object remission: 2% to >1000% (reflector)
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: 10 Hz to 150 Hz, 5 g, 20 frequency cycles
- Shock resistance: 15 g, 11 ms (6 single shocks/axis), 10 g, 16 ms (1000 continuous shocks/axis)
- Ambient operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: 80 klx
- Dimensions (H x L x W): 93mm x 152mm x 150mm
- Weight: 1.2 kg
