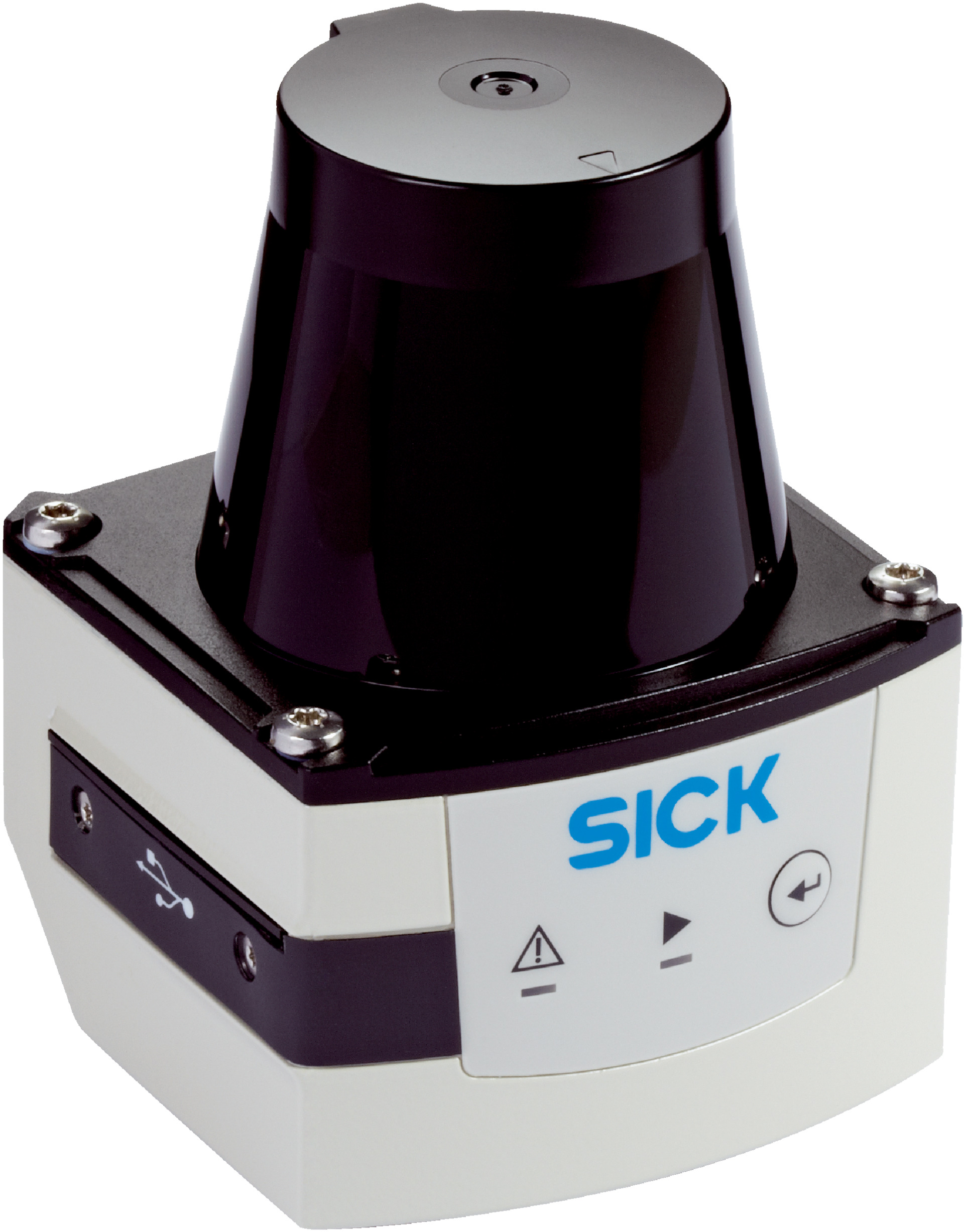

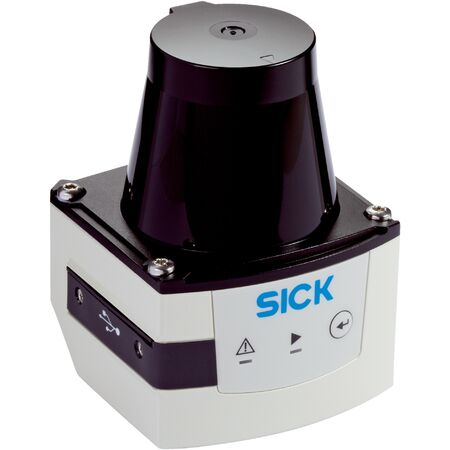

LiDAR Sensor TiM581-2050101 | 270° Aperture Angle | IP67 Rated | 15 Hz Scanning Frequency | by SICK
The TiM581-2050101 LiDAR sensor is designed for precise measurement and object detection in both indoor and outdoor environments. With a 270° aperture angle and a scanning frequency of 15 Hz, it excels in industrial automation and robotics applications. Its robust IP67 rated enclosure ensures durability against dust and water, making it a reliable choice for various safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LiDAR Sensor TiM581-2050101 | 270° Aperture Angle | IP67 Rated | 15 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1099504
Alternatively Known As: TiM581 LiDAR Sensor, SICK LiDAR Scanner, Industrial LiDAR Sensor, 270 Degree LiDAR
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Angular resolution: 0.33° horizontal
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 25 m
- Scanning range at 10% remission factor: 8 m
- Connection types: 1 x Ethernet (4-pin M12 female), 1 x Power/Synchronization output (5-pin M12 male), 1 x Micro USB (type B)
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W
- Output current: ≤ 100 mA
- Housing color: Gray (RAL 7032)
- Enclosure rating: IP67 (with Aux interface cover closed)
- Protection class: III (IEC 61140:2016-1)
- Weight: 250 g (without cables)
- MTBF: > 100 years
- Response time: 1 scan typ. 67 ms, 2 scans ≤ 134 ms
- Systematic error: ± 60 mm
- Statistical error: < 20 mm
- Digital outputs: 1 PNP (SYNC/device ready)
- Optical indicators: 2 LEDs (ON, device ready)
- Electromagnetic compatibility: Residential and industrial standards
- Vibration resistance: 10 Hz to 1,000 Hz sine resonance scan
- Shock resistance: up to 50 g
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Permissible relative humidity: Operation < 80%, Storage ≤ 95%, non-condensing
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Measurement principle: HDDM+
- Infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- 270° horizontal aperture angle with 0.33° angular resolution
- Scanning frequency of 15 Hz
- Working range from 0.05 m to 25 m
- IP67 rated enclosure for dust and water protection
- Multiple interfaces including Ethernet, Micro USB, and digital outputs
- Robust vibration and shock resistance
- Operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Outdoor and indoor environment scanning
- Object detection and measurement
- Industrial automation and safety systems
- Robotics and navigation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (typ. 4 W)
- Durable IP67 housing reduces need for frequent replacements
- Supports automation that can improve energy management and safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TiM581-2050101 LiDAR sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety applications.
