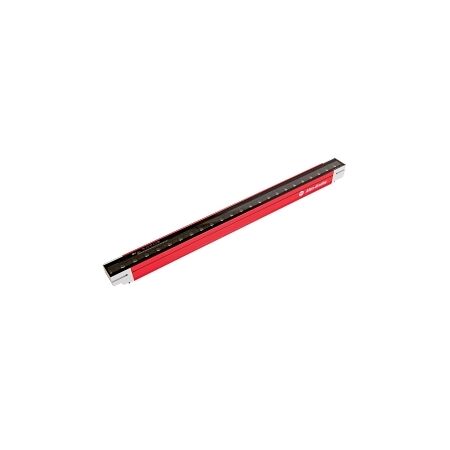

Light Curtain Safety Device | 1500mm Height | 30mm Resolution | IP65 Rated by NHP

SKU: 450LB4HN1500YD
$2,763.40 List price: $3,443.70
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
Light curtain safety device with 1500mm height and 30mm resolution—ideal for industrial safety applications. Built for personnel protection, with IP65 rating for dust and water resistance.
Technical Specifications
  • Voltage Type: DC
  • Supply Voltage: 24 V
  • Material Housing: Metal
  • Degree of Protection: IP65
  • Number of Beams: 10
  • Beam Spacing: 30 mm
  • Wavelength of the Sensor: 850 nm
  • Height Protected: 1500 mm
  • Ambient Temperature: -10-55 °C
  • Dimensions (H x L x W): 100mm x 100mm x 1500mm
  • Weight: 2.0 kg
Key Features
  • 10 beams with 30 mm beam spacing for effective safety coverage.
  • IP65 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal safety and performance.
Applications
  • Industrial: Manufacturing and assembly lines
  • Safety: Protection for personnel in hazardous areas
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 450L GuardShield POC Light Curtain is available now for immediate purchase. Ideal for industrial safety applications.

450LB4HN1500YD-AU-POC-Light-Curtains-Basic-Datasheet.pdf (450LB4HN1500YD-AU-POC-Light-Curtains-Basic-Datasheet.pdf, 485 Kb) [Download]
