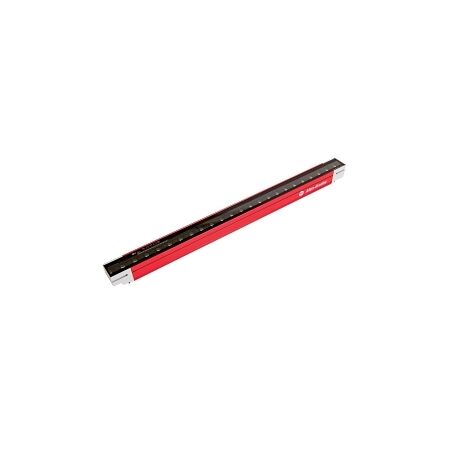

AB 450L GuardShield POC Light Curtain Basic Safety Transceiver 1500mm Resolution 30mm

Light Curtain Safety Device | 1500mm Height | 30mm Resolution | IP65 Rated by NHP

BRAND: NHP

SKU: 450LB4HN1500YD

$2,763.40 List price: $3,443.70

Free pick up (over 1 meter)

For delivery quote message

30 Days Return Delivery Options

Light curtain safety device with 1500mm height and 30mm resolution—ideal for industrial safety applications. Built for personnel protection, with IP65 rating for dust and water resistance.

Description
Attachments

Product Name/Title: AB 450L GuardShield POC Light Curtain Basic Safety Transceiver 1500mm Resolution 30mm

Brand: NHP

SKU: 450LB4HN1500YD

Alternatively Known As: Light Curtain Safety Device, POC Light Curtain, Safety Light Barrier

Technical Specifications

Voltage Type: DC
Supply Voltage: 24 V
Material Housing: Metal
Degree of Protection: IP65
Number of Beams: 10
Beam Spacing: 30 mm
Wavelength of the Sensor: 850 nm
Height Protected: 1500 mm
Ambient Temperature: -10-55 °C
Dimensions (H x L x W): 100mm x 100mm x 1500mm
Weight: 2.0 kg

Key Features

10 beams with 30 mm beam spacing for effective safety coverage.
IP65 rated for protection against dust and water.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal safety and performance.

Applications

Industrial: Manufacturing and assembly lines
Safety: Protection for personnel in hazardous areas

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Durable design reduces the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 450L GuardShield POC Light Curtain is available now for immediate purchase. Ideal for industrial safety applications.

450LB4HN1500YD-AU-POC-Light-Curtains-Basic-Datasheet.pdf (450LB4HN1500YD-AU-POC-Light-Curtains-Basic-Datasheet.pdf, 485 Kb) [Download]
