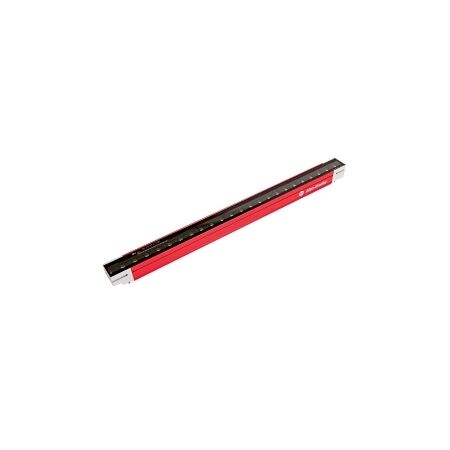

AB 450L GuardShield POC Light Curtain Basic Safety Transceiver 1650mm Resolution 30mm

Light Curtain Safety Sensor | 1650mm Height | 30mm Resolution | IP65 Rated by NHP

BRAND: NHP

SKU: 450LB4HN1650YD

$2,837.30 List price: $3,767.60

+ −

30 Days Return Delivery Options

Light curtain safety sensor with 1650mm height and 30mm resolution—ideal for manufacturing and assembly lines. Built for personnel protection, with IP65 rating for dust and water resistance.

Description
Attachments

Product Name/Title: AB 450L GuardShield POC Light Curtain Basic Safety Transceiver 1650mm Resolution 30mm

Brand: NHP

SKU: 450LB4HN1650YD

Alternatively Known As: Light Curtain Safety Sensor, POC Light Curtain, Safety Light Barrier

Technical Specifications

Voltage Type: DC
Supply Voltage: 24 V
Type of Safety according to IEC 61496-1: 4
Material Housing: Metal
Degree of Protection: IP65
Number of Beams: 16
Beam Spacing: 30 mm
Wavelength of the Sensor: 850 nm
Height Protected: 1650 mm
Ambient Temperature: -10-55 °C
Dimensions (H x L x W): 1650mm x 100mm x 30mm
Weight: 5.0 kg

Key Features

16 beams with 30 mm beam spacing for enhanced safety coverage.
IP65 rated for protection against dust and water.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal safety and performance.

Applications

Industrial: Manufacturing and assembly lines
Safety: Protection for personnel in hazardous areas

Standards & Compliance

Complies with AS/NZS 62061 for safety-related control systems.

Environmental Benefits

Designed to operate in a wide temperature range, reducing the need for additional heating or cooling.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 450L GuardShield POC Light Curtain is available now for immediate purchase. Ideal for industrial applications requiring safety and protection.

Non-Returnable & Non-Cancellable

450LB4HN1650YD-AU-POC-Light-Curtains-Basic-Datasheet.pdf (450LB4HN1650YD-AU-POC-Light-Curtains-Basic-Datasheet.pdf, 486 Kb) [Download]
