Light Curtain Safety Sensor | 750mm Height | 14mm Beam Spacing | IP65 Rated by NHP

BRAND: NHP
SKU: 450LB4FN0750YD
$1,576.00 List price: $2,092.80
+
Light curtain safety sensor with 750mm height and 14mm beam spacing—ideal for industrial safety and machine guarding. Built for robust protection, with IP65 rating for dust and water resistance.

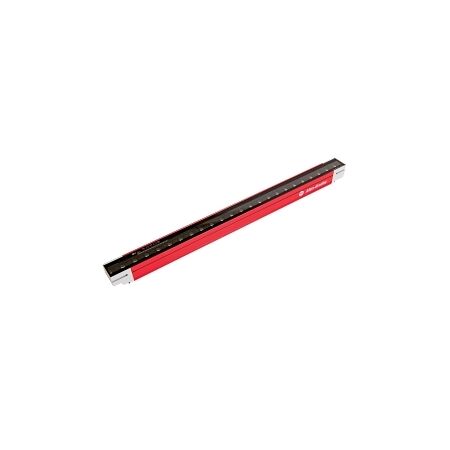

Product Name/Title: AB 450L GuardShield POC Light Curtain Basic Safety Transceiver 750mm Resolution 14mm

Brand: NHP

SKU: 450LB4FN0750YD

Alternatively Known As: Light Curtain Safety Sensor, POC Light Curtain, Safety Light Barrier

Technical Specifications
  • Supply Voltage: 24 V DC
  • Type of Safety according to IEC 61496-1: 4
  • Number of Beams: 16
  • Beam Spacing: 14 mm
  • Wavelength of the Sensor: 850 nm
  • Ambient Temperature: -10 to 55 °C
  • Dimensions (H x L x W): 750mm x 100mm x 30mm
  • Weight: 1.5 kg
Key Features
  • Basic safety light curtain with 750mm height and 14mm beam spacing.
  • IP65 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal safety and performance.
Applications
  • Industrial: Manufacturing and assembly lines
  • Safety: Machine guarding and personnel protection
Standards & Compliance
  • Complies with AS/NZS 4801 for Occupational Health & Safety Management Systems.
Environmental Benefits
  • Durable metal housing reduces waste and enhances longevity.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The AB 450L GuardShield POC Light Curtain is available now for immediate purchase. Ideal for industrial safety applications.

Non-Returnable & Non-Cancellable

450LB4FN0750YD-AU-POC-Light-Curtains-Basic-Datasheet.pdf (450LB4FN0750YD-AU-POC-Light-Curtains-Basic-Datasheet.pdf, 486 Kb) [Download]
