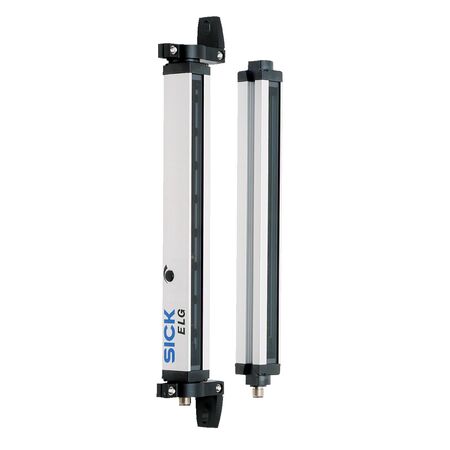

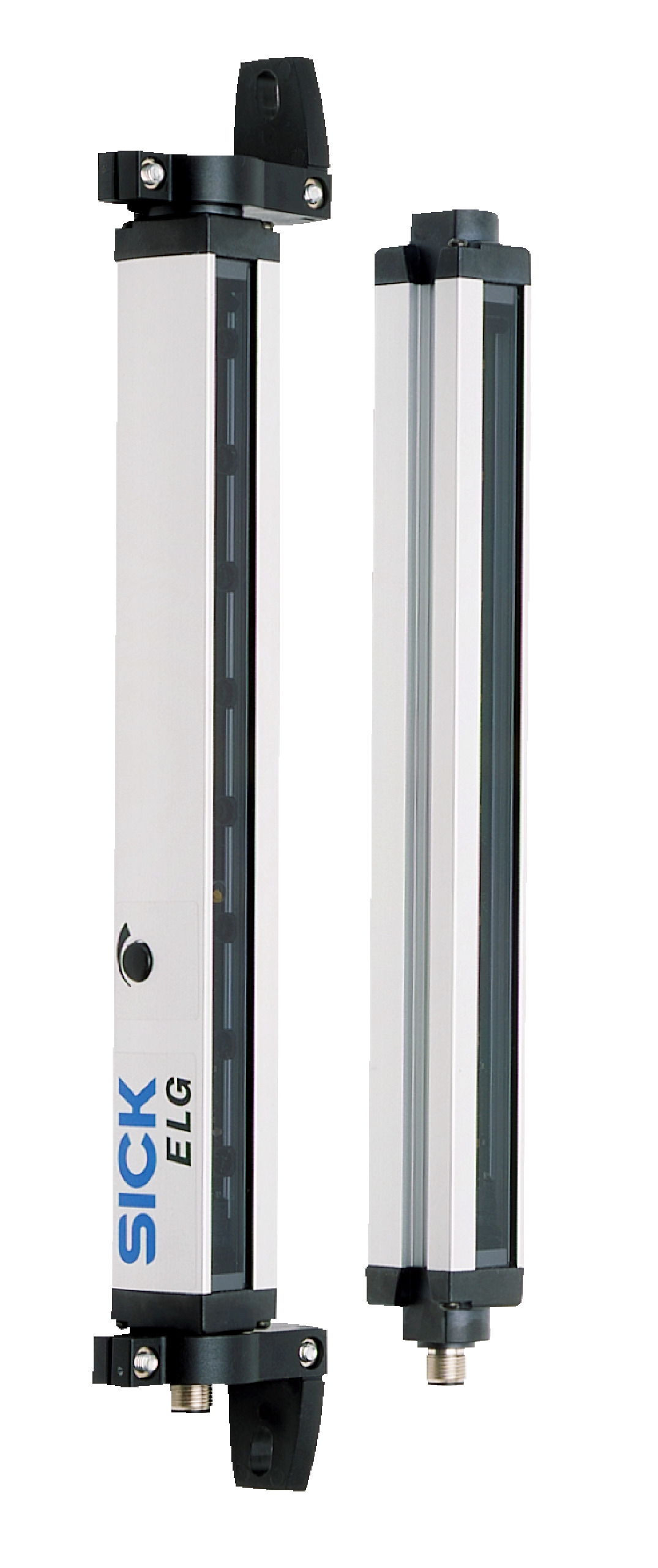

Light Curtain Sensor ELG3-1050P511S33 | 36 Beams | 1,050 mm Detection Height | IP65 Rated | by SICK
The Light Curtain Sensor ELG3-1050P511S33 features 36 parallel evaluation beams and a detection height of 1,050 mm, making it ideal for industrial automation and safety applications. With a robust aluminum housing and IP65 enclosure rating, it ensures reliable performance in challenging environments. Perfect for machine guarding and perimeter protection, this sensor operates efficiently with low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Minimum detectable object: 35 mm
- Beam separation: 30 mm
- Number of beams: 36
- Detection height: 1,050 mm
- Wave length: 880 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender and receiver: < 100 mA each
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Optical
- Enclosure rating: IP65
- Circuit protection: UV connections, reverse polarity protected, output Q short-circuit protected, interference pulse suppression
- Protection class: III
- Pulse frequency: 250 kHz
- Front screen: PMMA
- Maximum range: 2 m
- Minimum range: ≥ 0 mm
- Operating range: 1.5 m
- Response time: 100 ms
- Shock resistance: 10 g / DIN EN 60068-2-29 / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 68-2-6)
- EMC: EN 60947-5-2
- Ambient light immunity: Indirect ≤ 150,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 1126mm x 29mm x 34mm
- Weight: 2.9 kg
Key Features
- 36 parallel evaluation beams with 1,050 mm detection height
- Minimum detectable object size of 35 mm
- Operating range of 1.5 m with maximum range of 2 m
- Optical synchronization and LED indication
- Robust aluminum housing with IP65 enclosure rating
- Reverse polarity and short-circuit protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety equipment and electrical standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (<100 mA)
- Durable aluminum housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ELG3-1050P511S33 Light Curtain Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
