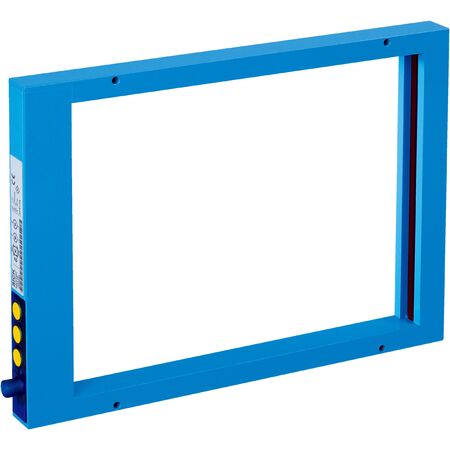

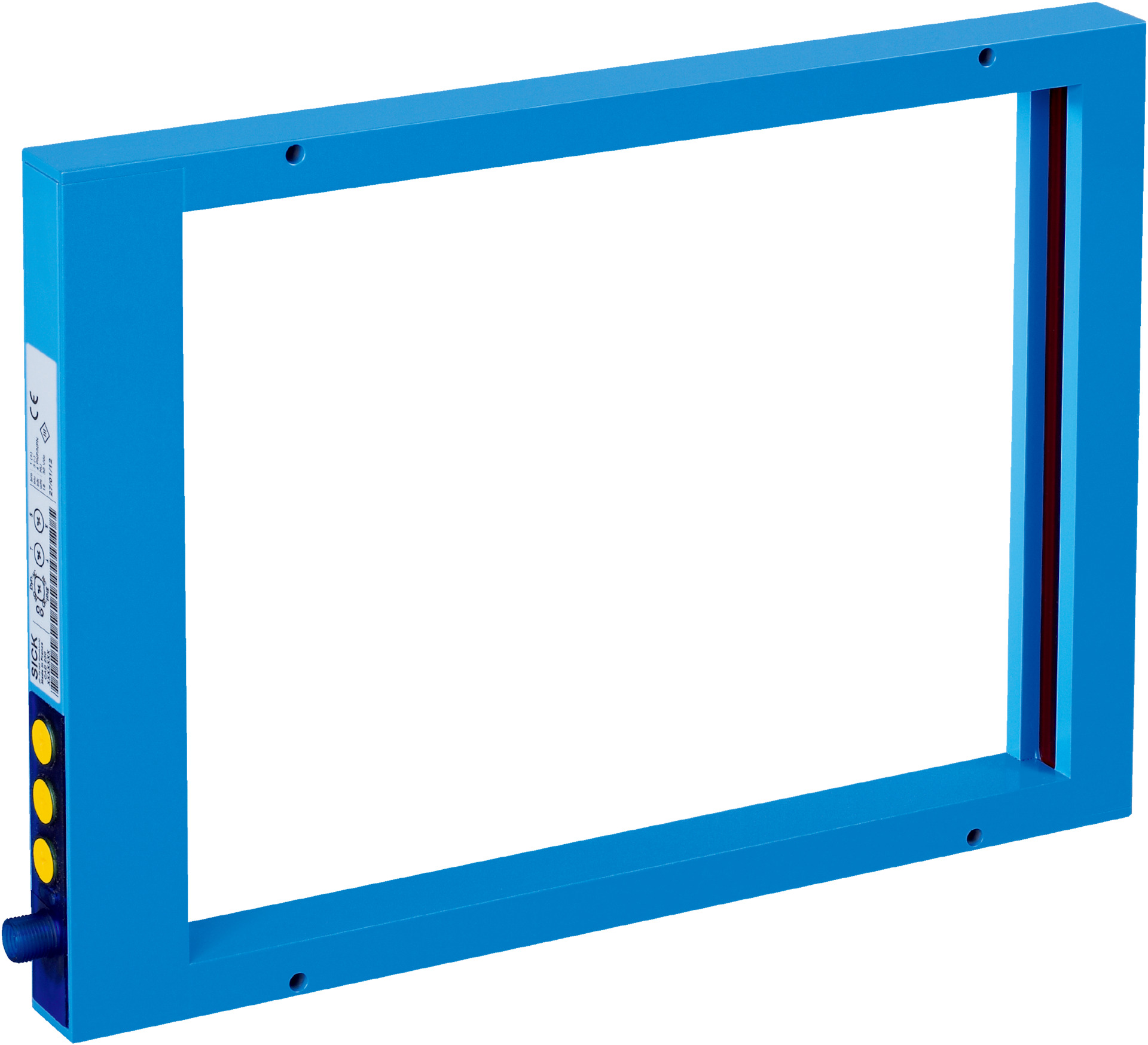

Light Curtain Sensor FLG2-20025011 | 250mm Detection Height | IP65 Rated | 5,000 Hz Switching Frequency | by SICK
The Light Curtain Sensor FLG2-20025011 is designed for industrial automation, featuring a 250mm detection height and a minimum detectable object size of 2mm dynamic. With an IP65 rating and robust aluminum housing, it ensures reliable performance in harsh environments. Ideal for machine guarding and access control, this sensor offers adjustable light/dark switching output and high switching frequency for enhanced safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 2 mm dynamic, 6 mm static
- Beam separation: 2 mm
- Detection height: 250 mm
- Output function: Light/dark switching adjustable by rotary switch
- Wavelength: 880 nm
- Supply voltage: DC 18 V to 30 V
- Ripple: < 10%
- Output current max: ≤ 100 mA
- Off delay: 0 s to 5 s
- Initialization time: 0.3 s
- Switching output: PNP, NPN
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum, painted
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Switching frequency: 5,000 Hz
- Detection area: 250 mm x 200 mm
- Response time: < 0.1 ms
- Shock resistance: EN 60068-2-27
- Vibration resistance: EN 60068-2-6
- EMC: EN 60947-5-2
- Ambient light immunity: 10,000 lx sunlight
- Operating temperature: 0 °C to +60 °C
- Storage temperature: -20 °C to +80 °C
- Dimensions (H x L x W): 230mm x 25mm x 312mm
- Weight: 0.86 kg
Key Features
- Close device version with sender/receiver sensor principle
- Minimum detectable object size: 2 mm dynamic, 6 mm static
- Detection height of 250 mm with 2 mm beam separation
- Light/dark switching output adjustable via rotary switch
- High switching frequency of 5,000 Hz
- Robust aluminum painted housing with IP65 enclosure rating
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
- Shock and vibration resistant compliant with EN standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection and safety
- Machine guarding and access control
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK FLG2-20025011 Light Curtain Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
