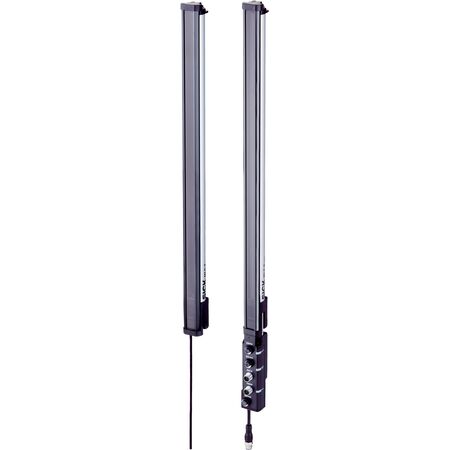

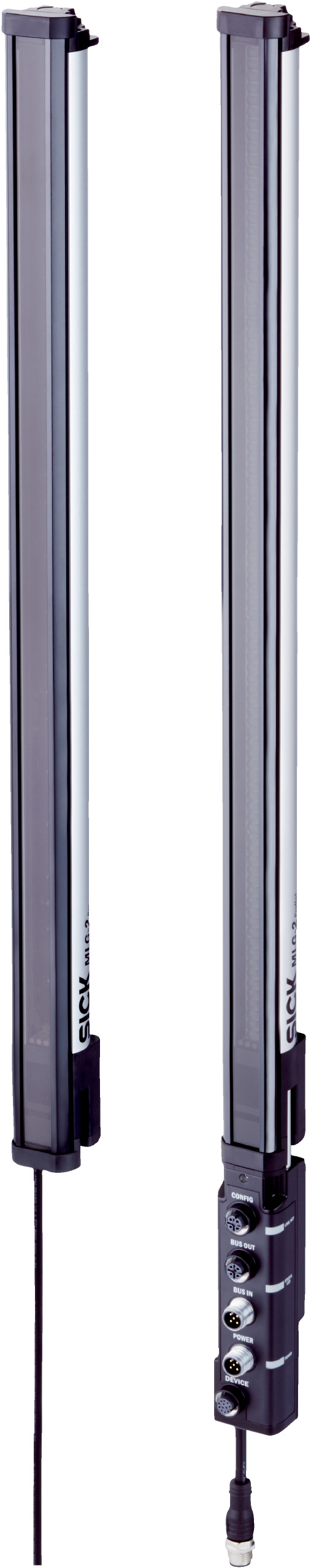

Light Curtain Sensor MLG10N-0740P10502 | ProNet Functionality | 75 Beams & 740mm Detection Height | by SICK
The Light Curtain Sensor MLG10N-0740P10502 is designed for precise object detection and measurement in industrial automation. With ProNet extended functionality, 75 beams, and a detection height of 740 mm, it ensures high measurement accuracy and fast initialization. Ideal for safety applications, this sensor operates in various modes, including standard and dust-resistant, making it perfect for diverse environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 10 mm
- Beam separation: 10 mm
- Number of beams: 75
- Detection height: 740 mm
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions: Cross beam, Beam blanking, High-speed scan, High measurement accuracy
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 58.75 mA
- Power consumption receiver: 135 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: less than 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 7 m
- Operating range: 5 m
- Response time: 7.1 ms
- Data interface: PROFIBUS DP, DPV0 with autobaud 9,600 kbit/s to 12 Mbit/s
- Digital output: 1 output Q1
- Dimensions (H x L x W): 740mm x 40mm x 50mm
- Weight: 1.75 kg
Key Features
- ProNet extended functionality including fieldbus communication
- Sender/receiver sensor principle with 75 beams
- Minimum detectable object size as small as 10 mm
- Detection height of 740 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Enclosure rated IP65 and IP67 for robust protection
- Push-pull PNP/NPN switching output
- Aluminum housing with PMMA front screen
- Fast initialization time under 1 second
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and fieldbus communication to ensure proper setup and safety compliance.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for safety and automation
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High measurement accuracy minimizes errors and material waste in automation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG10N-0740P10502 light curtain sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection and measurement.
