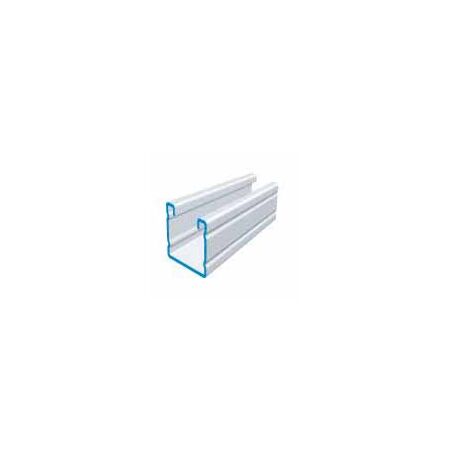

Light Duty Channel 41x41 Galvabond 10Kg 6m Unistrut
Unistrut light-duty strut channel, 41x41mm, Galvabond finish, 10kg per 6m length. Suited for structural and cable support.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Manufactured from strip steel to AS1594 and AS1365 standards.
- Spot-welded combination members welded 75mm maximum on centre.
- Channel size: 41mm x 41mm cross-section.
- Length: 6 meters.
- Weight: 10 kg per channel.
- Finish: Galvabond (zinc-aluminium alloy coating).
- Dimensions (H x L x W): 41mm x 6000mm x 41mm
- Weight: 10 kg
Key Features
- Channel edges and nut’s tapered grooves provide positive alignment of connection.
- Nut teeth grip the channel’s inturned edges, tying the channel sides together in a box configuration for added strength.
- Longitudinal movement of nut is resisted as hardened teeth bite into the inturned edges.
- Available in multiple finishes including Plain, Hot Dipped Galvanised, Galvabond, Zinc Plated, and Polyester.
- Adjustable, demountable, and reusable design.
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper alignment, secure connections, and compliance with structural requirements.
Applications
- Construction: Structural framing and support
- Electrical: Cable management and conduit support
- Mechanical: Equipment mounting and bracing
- Industrial: Adjustable and reusable channel systems
Standards & Compliance
- Complies with AS1594 – Steel sheet and strip
- Complies with AS1365 – Hot-rolled steel sections
Environmental Benefits
- Galvabond finish provides corrosion resistance, extending product life and reducing replacement frequency.
- Reusable and adjustable design reduces material waste in construction and installation.
Warranty Information
Warranty terms are subject to manufacturer’s specifications and may vary; please consult supplier for details.
Available Now
The Light Duty Channel 6M with Galvabond finish is available now for immediate purchase. Ideal for construction, electrical, and mechanical support applications.
