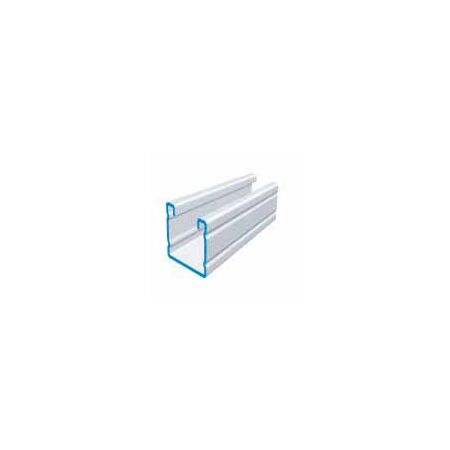

Light Duty Channel 6M | Galvabond Finish | 10KG Weight
Light duty channel with Galvabond finish and 10KG weight—ideal for construction and industrial applications. Built for strength and versatility, with 6M length for extended reach.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Light Duty Channel 6M | Galvabond Finish | 10KG Weight
SKU: P2000-GB
Alternatively Known As: Unistrut Channel, Steel Channel, Galvabond Channel, Light Duty Steel Channel, Structural Channel
Technical Specifications
- Manufactured from strip steel to AS1594 and AS1365 standards.
- Spot-welded combination members welded 75mm maximum on centre.
- Channel size: 41mm x 41mm cross-section.
- Length: 6 meters.
- Weight: 10 kg per channel.
- Finish: Galvabond (zinc-aluminium alloy coating).
- Dimensions (H x L x W): 41mm x 6000mm x 41mm
- Weight: 10 kg
Key Features
- Channel edges and nut’s tapered grooves provide positive alignment of connection.
- Nut teeth grip the channel’s inturned edges, tying the channel sides together in a box configuration for added strength.
- Longitudinal movement of nut is resisted as hardened teeth bite into the inturned edges.
- Available in multiple finishes including Plain, Hot Dipped Galvanised, Galvabond, Zinc Plated, and Polyester.
- Adjustable, demountable, and reusable design.
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper alignment, secure connections, and compliance with structural requirements.
Applications
- Construction: Structural framing and support
- Electrical: Cable management and conduit support
- Mechanical: Equipment mounting and bracing
- Industrial: Adjustable and reusable channel systems
Standards & Compliance
- Complies with AS1594 – Steel sheet and strip
- Complies with AS1365 – Hot-rolled steel sections
Environmental Benefits
- Galvabond finish provides corrosion resistance, extending product life and reducing replacement frequency.
- Reusable and adjustable design reduces material waste in construction and installation.
Warranty Information
Warranty terms are subject to manufacturer’s specifications and may vary; please consult supplier for details.
Available Now
The Light Duty Channel 6M with Galvabond finish is available now for immediate purchase. Ideal for construction, electrical, and mechanical support applications.
