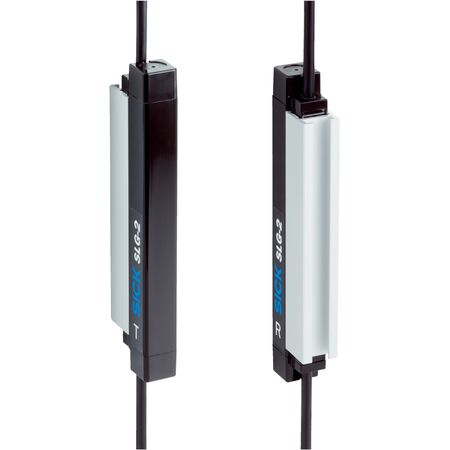

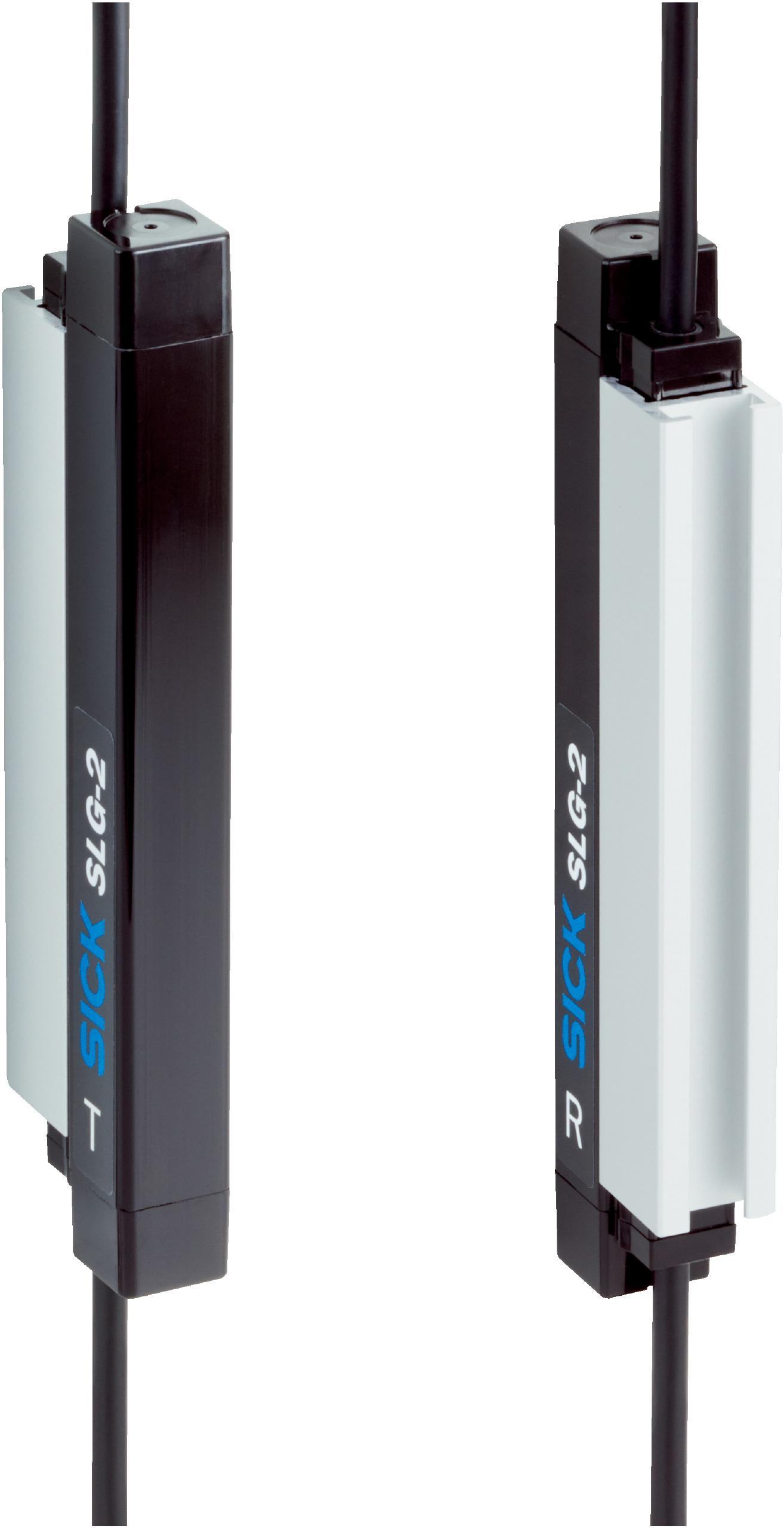

Light Grid Sensor | 100 Beams | 15 mm Minimum Detectable Object | IP65 & IP67 Rated | by SICK
The Light Grid Sensor features a robust sender/receiver system with 100 beams and a minimum detectable object size of just 15 mm, making it ideal for industrial automation and safety applications. With a detection height of 1,000 mm and an infrared light source at 850 nm, this sensor ensures reliable performance in machine guarding and perimeter protection, while its IP65 and IP67 ratings provide exceptional durability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: FlexChain Guest
- Sensor principle: Sender/receiver light grid system
- Minimum detectable object (MDO): 15 mm
- Beam separation: 10 mm
- Number of beams: 100
- Detection height: 1,000 mm
- Light source: Infrared light
- Wavelength: 850 nm
- Supply voltage: Via FlexChain (host)
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Connection type: Cable with M8 male connector, 4-pin; Cable with female connector, M8, 4-pin, 1.5 m
- Indication: LED
- Synchronization: Via FlexChain (host)
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, interference pulse suppression, overcurrent and short-circuit protected outputs
- Protection class: III
- Front screen material: PMMA
- Maximum range: 9.1 m
- Minimum range: ≥ 0 m
- Operating range: 6.5 m
- Scanning time: 8 ms
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 10-150 Hz, 0.5 mm
- EMC: EN 61000-6-2, EN 61000-6-4
- Ambient light immunity: Indirect 50,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 999.2mm x 11.8mm x 24.1mm
- Weight: 0.63 kg
Key Features
- Sender/receiver light grid system with 100 beams
- Minimum detectable object size of 15 mm
- Detection height of 1,000 mm
- Slim optical light exit design
- Infrared light source with 850 nm wavelength
- IP65 and IP67 rated enclosure for robust protection
- LED indication for operational status
- Short scanning time of 8 ms
- Shock and vibration resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient infrared light source reduces power consumption
- Durable IP65/IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SLG10S-100SBKB1K01 FlexChain Guest Light Grid Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
