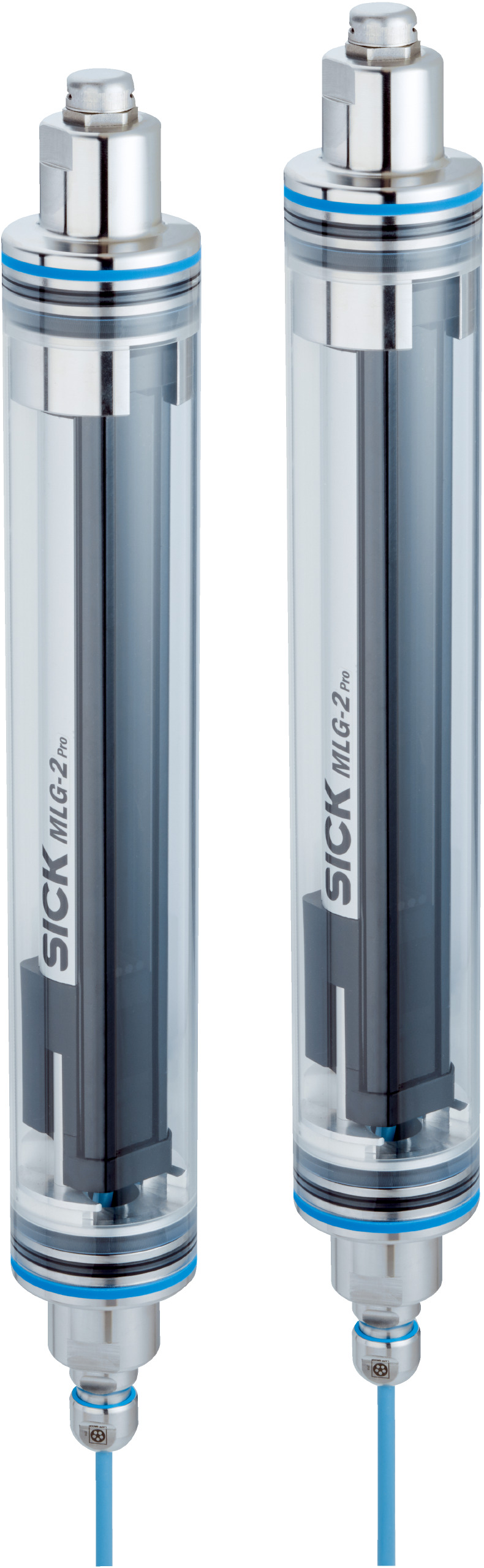

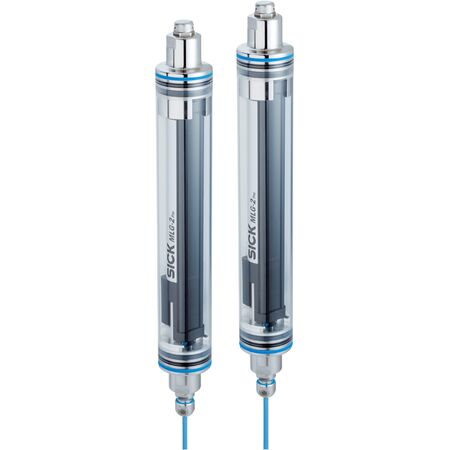

Light Grid Sensor MLG20A-1480B50501 | Pro Version | 75 Beams & IP69K Rated | by SICK
The Light Grid Sensor MLG20A-1480B50501 is designed for precise object detection and measurement, featuring a pro version with 75 beams and a minimum detectable object size of 20 mm. With an IP69K rated housing, it's perfect for harsh industrial environments, ensuring reliable performance in safety monitoring and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 20 mm
- Number of beams: 75
- Detection height: 1,480 mm
- Synchronization: Cable
- Light source: LED, Infrared light (850 nm)
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 58.75 mA
- Power consumption receiver: 135 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 8-pin
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 5.25 m
- Operating range: 3.75 m
- Response time: 7.1 ms
- IO-Link V1.1 communication with 230.4 kbit/s data rate
- Analog outputs: 4 mA to 20 mA current output
- Digital outputs: 2
- Digital input: 1
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Dimensions (H x L x W): 1600mm x 100mm x 150mm
- Weight: 3.56 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 75 beams
- Minimum detectable object size of 20 mm
- Detection height of 1,480 mm
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP69K rated housing for harsh environments
- Aluminum light grid housing with stainless steel and polypropylene components
- IO-Link V1.1 communication with 230.4 kbit/s data rate
- Analog and digital outputs with teach input
- Short initialization time under 1 second
- Circuit protection including reverse polarity and short-circuit protection
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Measurement of outside and inside dimensions
- Object and hole position measurement
- Zone definition in industrial automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP69K rated housing reduces need for frequent replacements
- Energy-efficient LED infrared light source minimizes power consumption
- Robust design reduces electronic waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG20A-1480B50501 light grid sensor is available for immediate purchase. Ideal for industrial automation, safety monitoring, and precise object measurement applications.
