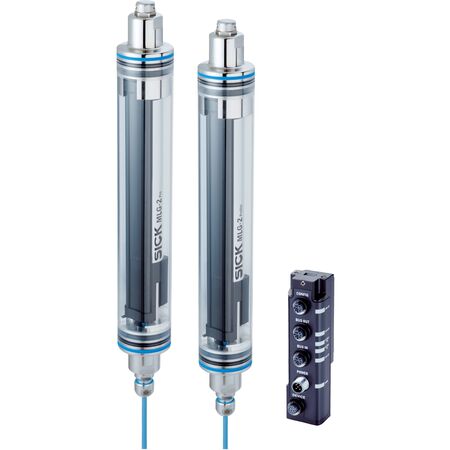

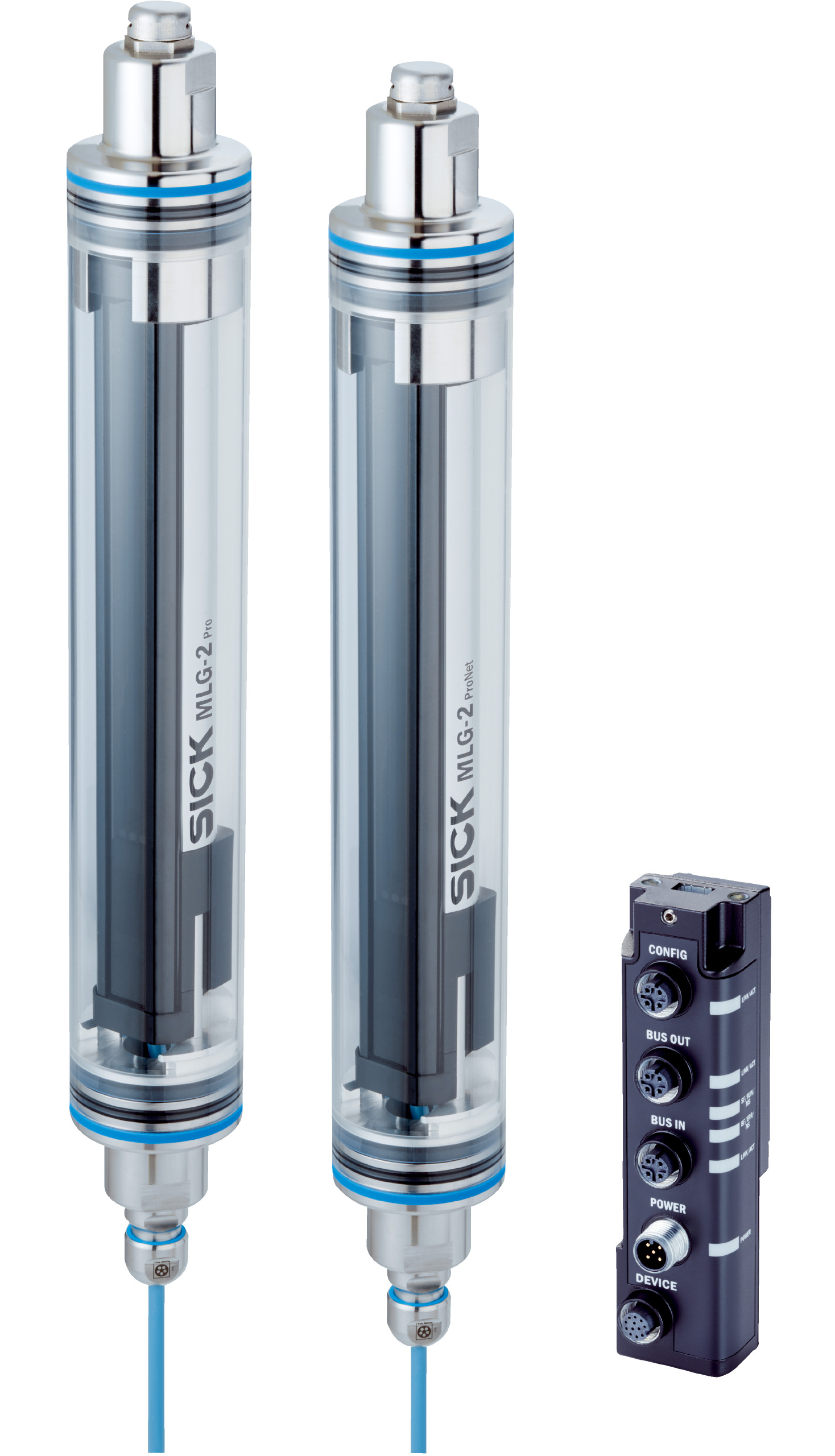

Light Grid Sensor MLG25N-1625H50501 | ProNet Functionality | 66 Beams | IP69K Rated | by SICK
The Light Grid Sensor MLG25N-1625H50501 features ProNet extended functionality and a sender/receiver principle with 66 beams, making it ideal for precise object detection and height classification. With a minimum detectable object size of 25 mm and a detection height of 1,625 mm, this sensor is perfect for industrial automation applications, ensuring high measurement accuracy and robust performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 25 mm
- Beam separation: 25 mm
- Number of beams: 66
- Detection height: 1,625 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 58.3 mA
- Power consumption receiver: 133.2 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: less than 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin connectors, 1.4 m cable
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel 1.4404 and 1.4305
- Display: LED
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 5.25 m
- Minimum range: 0 m or greater
- Operating range: 3.75 m
- Response time: 6.4 ms
- Shock resistance: Continuous shocks 10 g, 16 ms; Single shocks 15 g, 11 ms
- Vibration resistance: Sinusoidal oscillation 10-150 Hz, 5 g
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 1625mm x 100mm x 50mm
- Weight: 3.86 kg
Key Features
- ProNet extended functionality including fieldbus
- Sender/receiver sensor principle with 66 beams
- Minimum detectable object size of 25 mm
- Detection height of 1,625 mm
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- IP69K rated protective housing
- Push-pull PNP/NPN switching output
- Plug connection type M12 with 5-pin and 12-pin connectors
- Robust aluminum and stainless steel housing materials
- Short initialization time under 1 second
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct setup and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP69K rated housing ensures long product life and reduces waste
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG25N-1625H50501 light grid sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
