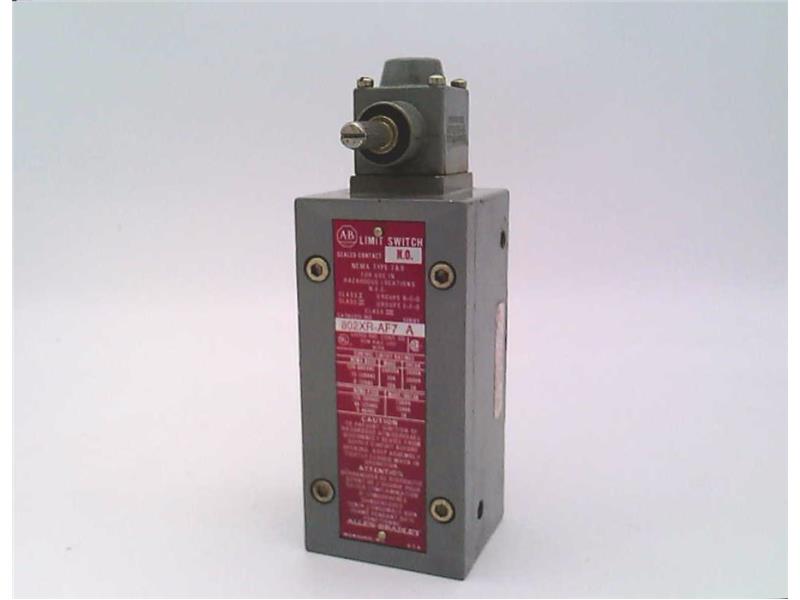

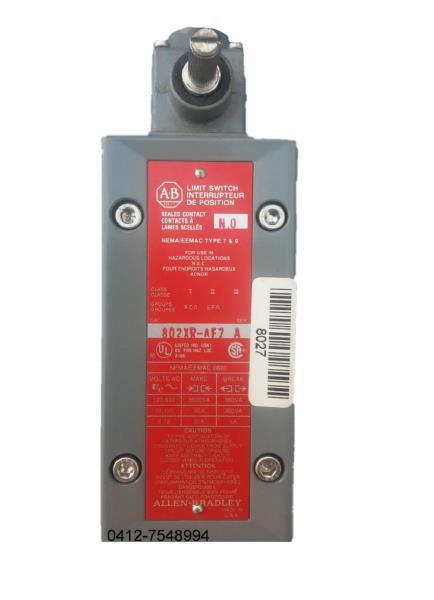

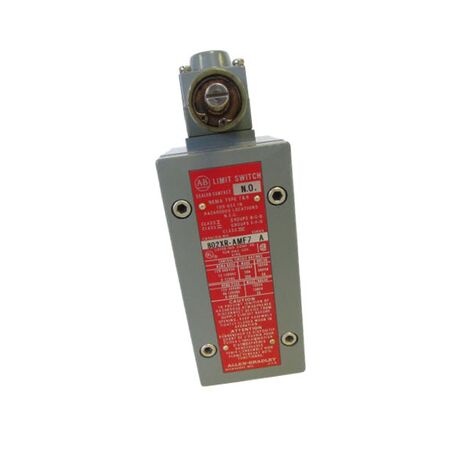

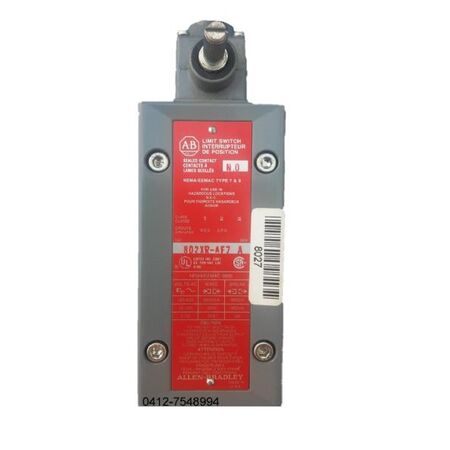

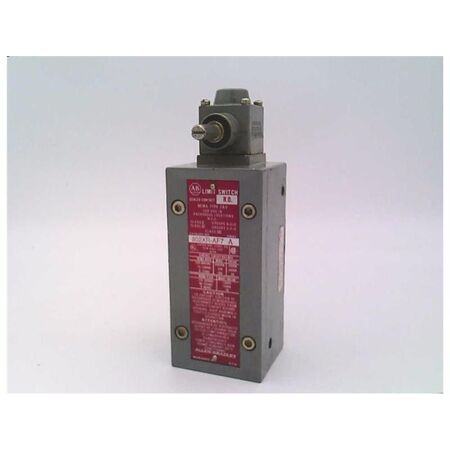

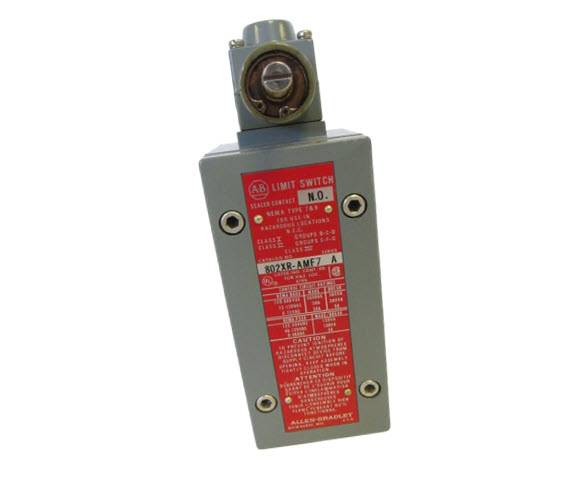

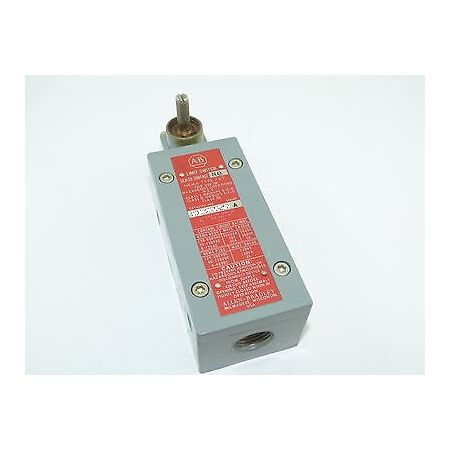

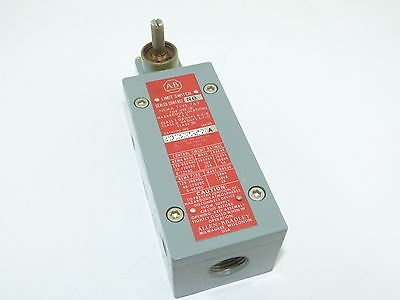

Product Name/Title: Allen-Bradley 802XRAF7 Limit Switch with Lever Actuator
Brand: Allen-Bradley
SKU: 802XRAF7
Alternatively Known As: Limit Switch 802XRAF7, Allen-Bradley Lever Limit Switch, Sealed Contact Limit Switch
Technical Specifications
- Actuator: Lever
- Contact Configuration: 1 Normally Open (1NO)
- Maximum Travel: 42 degrees
- Travel to Operate Contacts: 16 degrees
- Travel to Reset Contacts: 9 degrees
- Torque Rating: 0.34 Nm
- NEMA Rating: 7/9
- Dimensions (H x L x W): 80mm x 40mm x 50mm
- Weight: 0.3 kg
Key Features
- Sealed contact type for protection against dust and moisture
- Lever actuator for precise mechanical operation
- Contact configuration: 1 Normally Open (1NO)
- NEMA 7/9 rated for hazardous locations
- Maximum travel of 42 degrees
- Torque rating of 0.34 Nm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial control equipment and hazardous location requirements.
Applications
- Industrial automation control systems
- Machinery position sensing
- Safety interlock systems
- Conveyor and material handling equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Sealed design reduces ingress of contaminants, extending product life and reducing waste.
- Durable construction minimizes replacement frequency, lowering environmental impact.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply as product is discontinued by manufacturer.
Available Now
The Allen-Bradley 802XRAF7 Limit Switch is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for industrial automation and safety applications.
