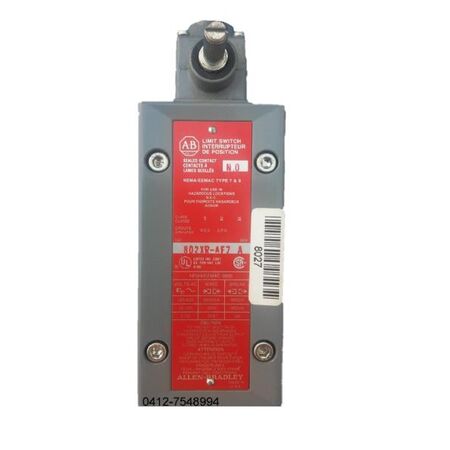

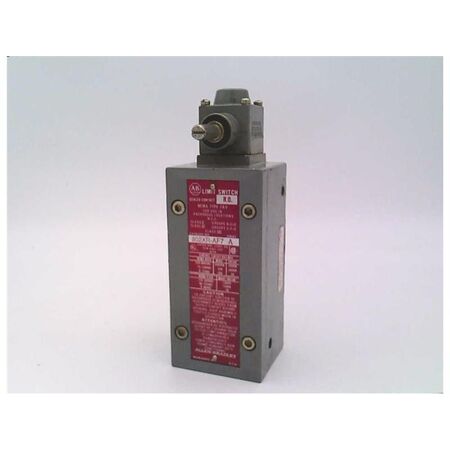

Limit Switch 802XRAF7 | Lever Actuator | NEMA 7/9 Rated | Sealed Contact Type | by Allen-Bradley
The Limit Switch 802XRAF7 features a lever actuator and sealed contact design, making it ideal for industrial automation control systems and safety interlock applications. With a NEMA 7/9 rating for hazardous locations and a maximum travel of 42 degrees, this switch ensures reliable operation in challenging environments. Built for durability, it minimizes maintenance needs and extends product life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Actuator: Lever
- Contact Configuration: 1 Normally Open (1NO)
- Maximum Travel: 42 degrees
- Travel to Operate Contacts: 16 degrees
- Travel to Reset Contacts: 9 degrees
- Torque Rating: 0.34 Nm
- NEMA Rating: 7/9
- Dimensions (H x L x W): 80mm x 40mm x 50mm
- Weight: 0.3 kg
Key Features
- Sealed contact type for protection against dust and moisture
- Lever actuator for precise mechanical operation
- Contact configuration: 1 Normally Open (1NO)
- NEMA 7/9 rated for hazardous locations
- Maximum travel of 42 degrees
- Torque rating of 0.34 Nm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial control equipment and hazardous location requirements.
Applications
- Industrial automation control systems
- Machinery position sensing
- Safety interlock systems
- Conveyor and material handling equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Sealed design reduces ingress of contaminants, extending product life and reducing waste.
- Durable construction minimizes replacement frequency, lowering environmental impact.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply as product is discontinued by manufacturer.
Available Now
The Allen-Bradley 802XRAF7 Limit Switch is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for industrial automation and safety applications.
