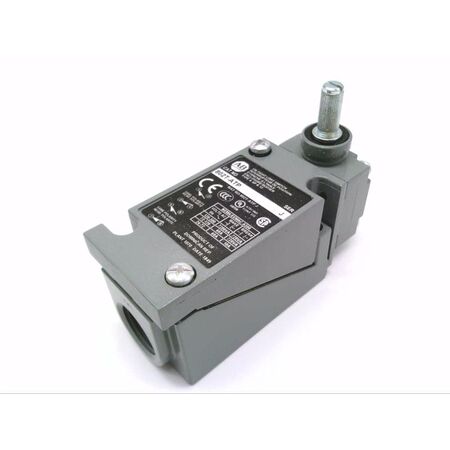

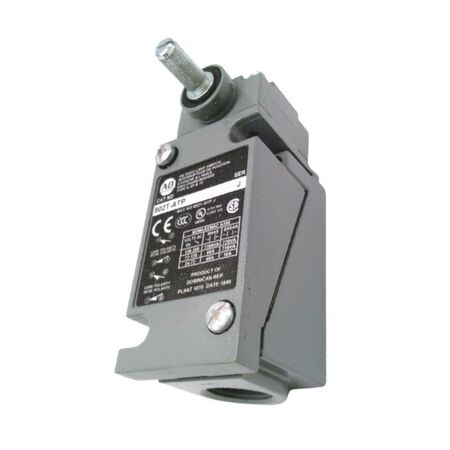

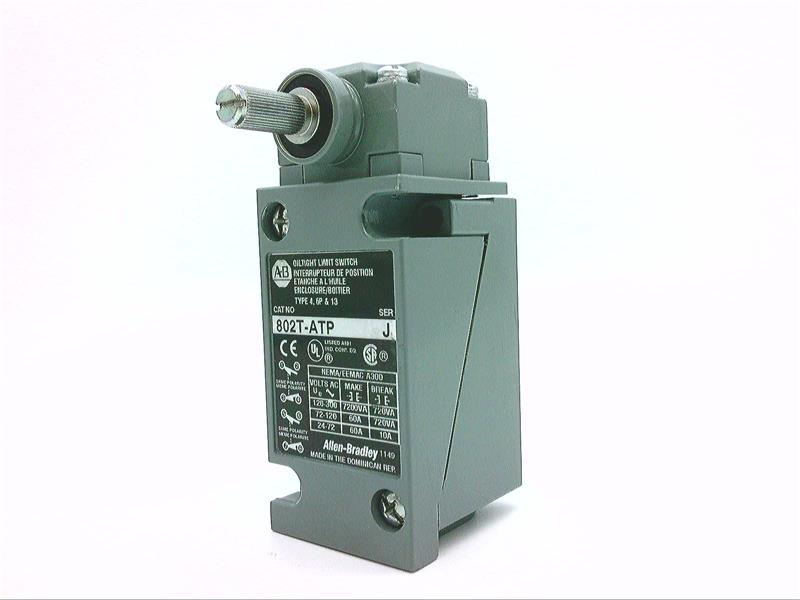

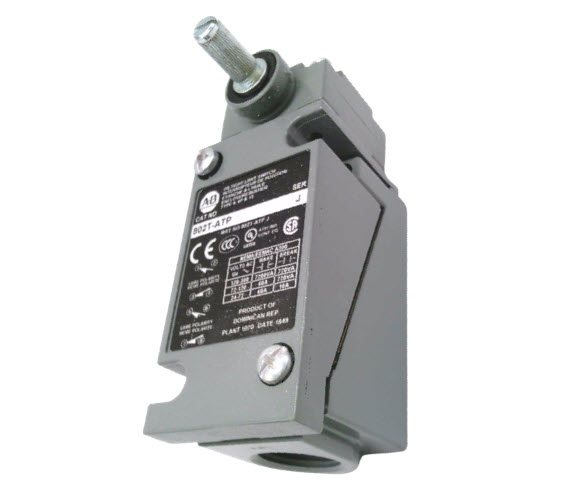

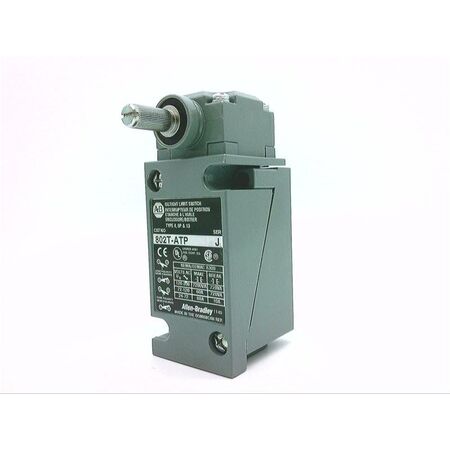

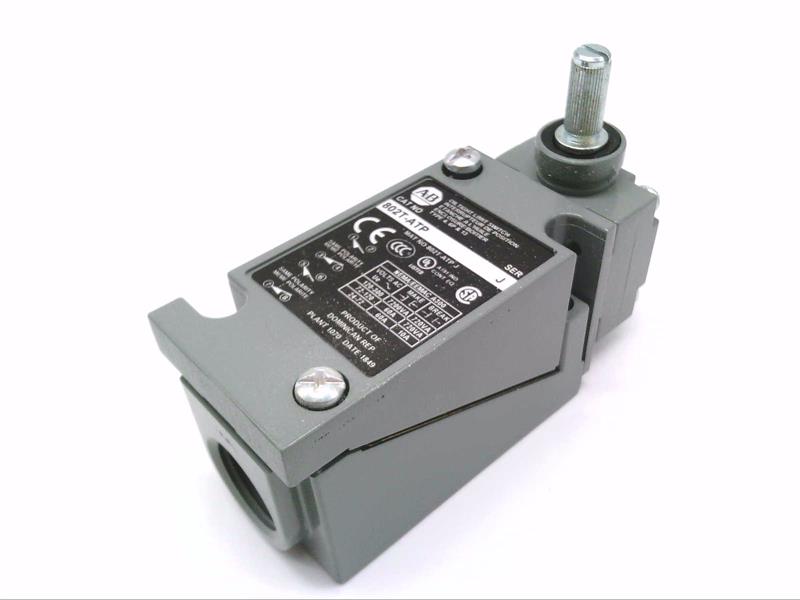

Product Name/Title: Allen-Bradley 802TATP Limit Switch NEMA Type 4/13
Brand: Allen-Bradley
SKU: 802TATP
Alternatively Known As: Industrial limit switch, lever limit switch, plug-in limit switch, NEMA 4/13 limit switch
Technical Specifications
- NEMA Type 4/13 oil-tight construction
- Plug-in lever type actuator with spring return
- Standard operating torque
- 4-circuit electrical configuration
- Clockwise and counterclockwise operation
- Electrical rating: 600 VAC max, 10 AMP max
- Dimensions (H x L x W): 120mm x 50mm x 70mm
- Weight: 0.5 kg
Key Features
- NEMA Type 4/13 rated for oil-tight construction
- Plug-in design for easy installation
- Lever type actuator with spring return
- Standard operating torque
- 4-circuit configuration
- Operates in both clockwise and counterclockwise directions
- Rated for 600 VAC max and 10 AMP max
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial automation control systems
- Machinery position sensing
- Conveyor systems
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable oil-tight construction reduces maintenance and waste
- Long service life minimizes replacement frequency
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 802TATP Limit Switch is available now for immediate purchase. Ideal for industrial and manufacturing automation control applications.
